Home > Products > plastic cover LED driver > cul ul listed 18w mini led driver 130v-12v mini transformer

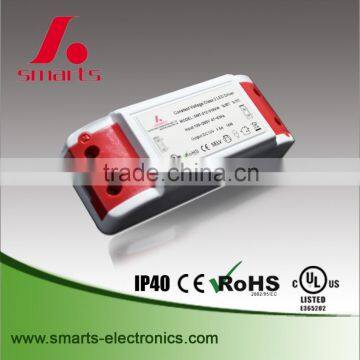

cul ul listed 18w mini led driver 130v-12v mini transformer
- 30000 Piece / Pieces per Month
- xiamen
- Credit Card
You May Like
-
constant current led drivers 350ma 6w led transformer
-
single phase 3a 36w 12v dc neon led power supply driver transformer
-
24v 350ma 9w constant current t8 led driver
-
ul 30 w 12 v led power supply for led strip
-
24V 15w DC class 2 power supply 120v ul 1310 driver
-
waterproof ip67 ac/dc 12V 24v 36w led transformer
Product Details
Place of Origin | Fujian, China | Brand Name | SMARTS | |
Model Number | SMT-012-018VW | Output Power | Other, 18W | |
Output Type | Single | Input Voltage | Other, 100-265vac | |
Output Voltage | 12vDC | Output Frequency | 47-63Hz | |
Output Current | 1.5A |
Product Description
cul ul listed 18w mini led driver 130v-12v mini transformer
model | SMT-012-018VW | SMT-024-018VW | SMT-036-018VW | SMT-048-018VW | ||||
Output | DC Voltage | 12V | 24V | 36V | 48V | |||
Voltage Accuracy | ±0.5V | ±0.5V | ±0.5V | ±0.5V | ||||
Rated current | 1.5A | 0.75A | 0.5A | 0.38A | ||||
Rated power | 18W | |||||||
Input | Voltage Range | 100~265V AC | ||||||
Frequency Range | 47~63HZ | |||||||
Full Load Efficiency(Typ.) | >82% | >82% | >82% | >82% | ||||
Leakage current | <0.25mA/110V/220VAC | |||||||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||||||
Environment | Working TEMP. | -40~+60℃ | ||||||
Working Humidity | 20~90%RH,non-condensing | |||||||
Storage TEM.,Humidity | -40~+80℃,10~95%RH | |||||||
efficient | ±0.03%/℃(0~50℃) | |||||||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |||||||
Safety&EMC | Safety standards | EN-60950-1, EN61347-1 EN61347-2-13 | ||||||
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | |||||||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | |||||||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 (>50%load) | |||||||
EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) | |||||||
Others | Weight | 91g | ||||||
Size | 116*44*20mm(L*W*H) | |||||||
packing | 299*224*176mm , 200PCS/ctn | |||||||
Notes | 1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
Application:
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
IP67 constant volatge led drivers
| constant current led drivers
| switching power supplies
|
triac dimmable led drivers
|
AC-DC adapter
|
DALI dimmable led drivers
|
Can you help me fix my own power cords???
Answer: We can help you fix / find all kinds of power cords to our drivers as per your request, for example:
what is the packing situation ??
Packing:
Shipping
Why choose Quanzhou Smarts Electronic & Technology Co.,Ltd ???
1). Our major markets are in EU & North America,it takes about 85% markets share,that to say we do high quanlity power suppliers only.
2). Most of our products are approved with UL/CE/Rohs approval, our ULfile#E365202.
3). We give 2 years warranty
4). We accept trial orders begining..
5). We have an area of 2000 square meters factory, about 300-500 production staff. ..
Website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
our market
Our major markets are in EU & North America,it takes about 85% markets share. view transaction history
Q1. What's type power supply do you have?
A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI
dimmable led drivers, enclosure power suppliers, power adapters.
Q2. What's shipping mode can we choose?
A2:1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Q3. What's the MOQ?
A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during
the warranty period, but we need pictures or video to prove the defective comes
from our quality problem.
Q5. How about the protection of product?
A5: Most of our products have protection of short-circuit, overload, over voltage,
over current and reserve polarity. About the specific product, please consult
our sales stuff.
Q6. How about the transportation?
A6: For small order,express will be best.And for bulk order,sea ship way is best but
take much time. For urgent orders,we suggest via air to airport plus our ship partner
send to your door. We will cooperate with your choice.
Q7. What's the Payment do you have?
A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via
T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the
near future.
