Home > Products > plastic cover LED driver > ul certification 6-9w 24v 350ma constant current led driver

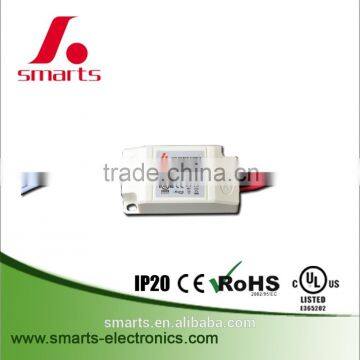

ul certification 6-9w 24v 350ma constant current led driver

FOB Price

USD $2 - $3 / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SMARTS
Model Number	SMT-026-0350CW	Output Power	Other, 9watt
Output Type	Single	Input Voltage	Other, 100-265vAC
Output Voltage	15-26vDC	Output Frequency	47-63Hz
Output Current	350mA

Product Description

ul certification 6-9w 24v 350ma constant current led driver

Product Description

MODEL		SMT-032-0320CW	SMT-026-0350CW
OUTPUT	DC VOLTAGE	23-34V	15v-26v
	RATED CURRENT	320mA	350mA
	CURRENT RANGE	±20mA	±20mA
	RATED POWER	7~10Watt	6~9Watt
	RIPPLE&NOISE(max)	<500mV	<500mV
	NO-LOAD VOLTAGE	<39V	<39V
INPUT	VOLTAGE RANGE	100~265VAC	100~265VAC
	FREQUENCY RANGE	47~63Hz	47~63Hz
	POWER FACTOR(Typ.)
	EFFICIENCY(Typ.)	>82%	>82%
	AC CURRENT(Typ.)	0.12A/100~220VAC	0.12A/100~220VAC
PROTECTION	Short circuit	Protection type:Hiccpe mode,recovers automatically after condition is removed
PROTECTION	Overload
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	INGRESS PROTECTION	IP67 design for indoor or outdoor installations
	STORAGE TEMP	-40~+80℃
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13;SELV;IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC Test Standards	EN55015;EN61000-3-2;EN61000-3-3;
	EMC Test Standards	EN61547;EN61000-4-2,3,4,5,6,8,11;

Note:

All parameters NOT specially mentioned are measured at 110,220VAC input,rated load and 25℃ of ambient temperature.
Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
Tolerance:includes set up tolerance,line regulation and load regulation.

Packing and Shipping

MOQ: 1 pcs
Payment: T/T, Western Union, Paypal, Trade Assurance.
Delivery: 7 working days for sample order,12 working days for 500pcs.
FOB , EXW and CIF all are available.
Shipping freight are quoted under your requests.
Loading port: Xiamen
Discounts are offered based on large quantities.
Price: Get quote

Company Information

Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.

We have 7 kinds of led drivers or led power supply:

1.Constant Voltage LED Driver;

2.Constant Current LED Driver;

3.Triac CC&CV Dimmable LED Driver

4.0-10v CC&CV Dimmable LED Driver

5.DALI CC&CV Dimmable LED Driver

6.Power Adapter

7.Switching Power Supply

All of our drivers are got UL/cUL CE ROHS listed .OEM Welcome.

Our led drivers are widely used for:

1.Indoor LED illuminating lights

2.LED Neon, LED urban Decoration

3.LED Lighting Advertising,LED Display

4.Safety Protection Apparatus

5.Telecommunications, Networks

6.Vehicle Lights, Controller Panels

our market:

Our major markets are in EU & North America,it takes about 85% markets share. view transaction history

our sales team:

factory & equipments view:

certifications:

CE, UL/CUL, ROHS approval.

Our Services

What Service we can supply??

All inquiries will be replied within 24 hours
Professional manufacturer,welcom to visit our website
OEM/ODM avaliable:
A.Print logo on our product;
B. Customized specification;
After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;
B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
High efficiency,long life span,reasonable&competetative price,fast lead time;
We have our engineer team, if you have any question about your LED applications, let us know freely.

FAQ

Frequently Asked Questions

Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.

Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.

Q10.How to contact with me??
A9: Skype: sales5smt

Tel.:+86 (595) 2286 3721

Whatsapp/Phone: +86 13635216739

***Any questions,Just feel free to click "send" to contact with me.^-^***
