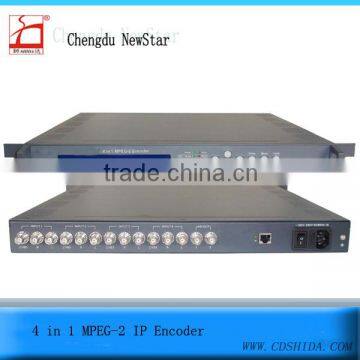

4 in 1 MPEG-2 IP Encoder

FOB Price

US$ 1 - 10,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	SHIDA
Model Number	SDC-3000E

MPEG-2 Encoder( with SDI)
4*CVBS video inputs
4 pairs of unbalanced audio inputs

Product Description

4 in 1 MPEG-2 IP Encoder

Input	4 CVBS inputs , BNC interface
Input	4 pairs of unbalanced stereo audio input, BNC interface
Video	Resolution	720×480_60i, 720×576_50i(D1)
		544×480_60i, 544×576_50i(3/4D1)
		352×480_60i, 352×576_50i(HD1)
		480×480_60i, 480×576_50i(2/3D1)
	Encoding	MPEG-2 MP@ML
	Chroma Format	4:2:0
	Bitrate	0.8Mbps~20Mbps each channel
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Audio Layer 2
	Sampling rate	48KHz,44.1KHz,32KHz
	Resolution	24-bit
	Bit-rate	32Kb/s—384Kb/s each channel
Stream output		2-way ASI output, BNC interface
Stream output		4 SPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)
System function		LCD/keyboard, network management, Chinese and English language
System function		Ethernet software upgrade
Miscellaneous	Environment	0~45°C(work);-20~80°C(Store)
Miscellaneous	Power	AC 220V±10% 50Hz,25W
