cnlinko waterproof circular 2pin connector for solar water pump solar controller
Negotiable
/ Set
10 Sets(Min.Order)
- shenzhen
- T/T Credit Card
You May Like
-
LP20 pin power connector waterproof IP67 for industry equipment
-
CNLINKO 3pin circular waterproof connector for LED display
-
Panel Mount IP67 Grade 2 Pin Waterproof Connector LP-20 for LED Light
-
Sealed IP65 Waterproof Electrical Wire Connector, 4 Pin Way Plug and Socket Set Connector
-
4Pin Quick Plug Flat Electrical Plug and Socket Connector
-
Made in china waterproof male female speaker connector speakon plug jack Speakon Female
Product Details
| Place of Origin | Guangdong, China | Brand Name | CNLINKO | |
| Model Number | LP-20-C02PE-01-001, LP-20-J02SX-01-001 | Type | XLR | |
| Application | Power | Gender | Other, male+female |
Product Description
Cnlinko waterproof circular connector 2pin for solar water pump or solar controller
1.Multi pins(No.2/3/4/5/7/9/12 ) for varies industrial demands and signal and power compatible match.
2.Zinc shell and inner components against electromagnetic and radio frequency interference.
3.Gold-plated contact, high electrical Conductivity deals with temperature rise.
4.PBT shell performance stable, compression, anti-explosion and anti-deformation.
5.Unique design plug/unplug connecting.
6.4-holes for installation ensure stable; screw thread socket well comply with round holes installation.
7.Rated current: 5-20A rms.
8.Protection level: IP65/IP67.
| LP-20-CJ02E-01-001 plug &socket | |
| Specifications: | |
| Connecting mode: | PLUG /UNPLUG |
| Protection level: | IP65/IP68 |
| Cable specification: | 2.5mm2 ~ 4 mm2 /14~12 AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ2.7×2 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - 1/4 bayonet connect; socket with cover | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |

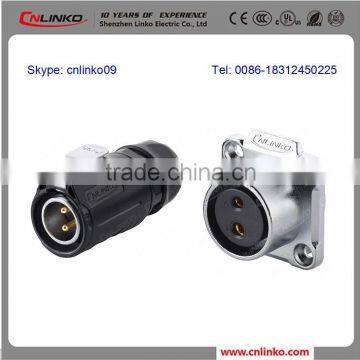

Product Photo:
Packaging & Shipping
- 1. Normally, our price is based on our box packing;
- 2. Customized packing is welcome, MOQ of printing customized box is 1,000 pcs/model;
- 3. Delivery Detail: 7-10 working days after received deposit;
- 4. You may choose our shipping partner or your own partner.
- 5. 100% T/T in advance is required after confirming the order.
Our Services
- 1. CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard;
- 2. We have professional quality control system and R&D department to strictlymanufacture each product.
- 3. 100,000 pcs per month.
- 4. National level laboratory, and have flexible production line, to make quick action tourgent customized needs.
- 5. We will supply the best service to you. Anything, please feel free to contact us.
