high quality Female Socket Customized Usb Connector 3.0
- 100000 Set / Sets per Month
- shenzhen
- Credit Card
You May Like
-
Manufacture Straight type 9pin Micro Usb Female Solder Connector
-
Good service high quality Hot Sale Usb Connector 3.0 usb connector ip67 usb 3.0 female connector With Female Socket
-
Automotive Electrical USB3.0 Connector Usb B Type Right Angle Connector
-
IP67 Usb Network connector With 24K Gold Plated
-
IP67 Waterproof Usb Female Connector Types Chart Vertical Usb Connector
-
Usb Connector 3.0 B Female in Black Metal Housing
Product Details
Place of Origin | Guangdong, China | Brand Name | cnlinko | |
Model Number | YU-USB3-JSX-03-100 | Type | XLR | |
Application | Power | Gender | Other, male and female |
Product Description

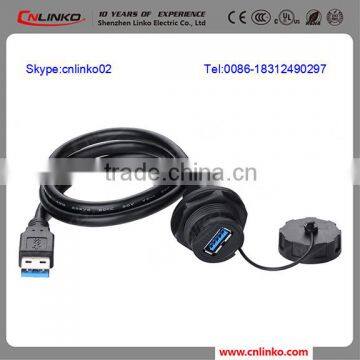

high quality Female Socket Customized Usb Connector 3.0
YU series electrical connectors IP67
1.independent USB3.0 socket design, easy to install and operate .
2. achieve double-head male to female adapter, snap locking,
ensure safe and stablecable can be customized
3. compatible with USB2.0,
4. protection level IP67
5.sheath of cable protect cable outlet well
6. solid connections system can provide the solutions for data transmission in harsh environments
YU-USB3-JSX-03-100 | |
Specifications: | |
Connecting mode: | Quickly bayonet connect |
Protection level: | P67 |
Cable specification: | 0.15mm2 ~ 0.2mm2 /26~24AWG |
Diameter range: | Φ5.5mm ~Φ7mm |
Contact diameter×Qty: | 9 |
Current rating(A): | 1.5A |
Operating voltage(AC.V.rms): | 500V |
Withstand voltage(AC.V)1min: | 1000V |
Contact resistance: | <30mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | Solder |
Prevent the combustion level: | UL94-V0 |
Produce type: | Customized Usb Connector 3.0 |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP67) | |
- Vibration resistance,impact resistance,stretching resistance | |
- 1/4 bayonet connect; socket with cover | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit for Customized Usb Connector 3.0
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne
1. Supply OEM and ODM service for Customized Usb Connector 3.0
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for Customized Usb Connector 3.0
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312490297
Skype: cnlinko02
Q1: What are connectors?
A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:
(all in all: cable to cable; cable to machines)
Q2: What classes do connectors have?
Shape | Frequency | Function |
circular | high-frequency | for printed board; cabinets; |
rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc. |
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
