Home > Products > Data connector > IP67 Waterproof USB 2.0 Extender USB Socket Universal, Suitable for Machinery and Equipment
IP67 Waterproof USB 2.0 Extender USB Socket Universal, Suitable for Machinery and Equipment
Negotiable
/ Piece
10 Pieces(Min.Order)
- Shenzhen
- T/T Credit Card
You May Like
-
Best Buy Plastic IP67 Usb 3.0 Connector Receptacle With Black Housing
-
China Factory CNLINKO IP67 9 Pin Female Usb Connector With Dust Cover
-
Cnlinko New 3.0 Version Solder 9p Usb Connector With Gold-plated
-
Hot Sale IP67 Soldering Wire Usb3.0 Panel Mount Connector With CE ROHS
-
Best Sell Electrical 9 Pin High-speed Female USB3.0 Connector For Computer Printer
-
High Quality Outdoor Ip67 Usb 2.0 A Type Usb Receptacle For Data Transmission
Product Details
| Place of Origin | Guangdong, China | Brand Name | CNLINKO | |
| Model Number | YU-USB2-CPI-01-100; YU-USB2-JSX-01-001 | Type | USB | |
| Application | Other, data | Gender | Other, male and female |
Product Description

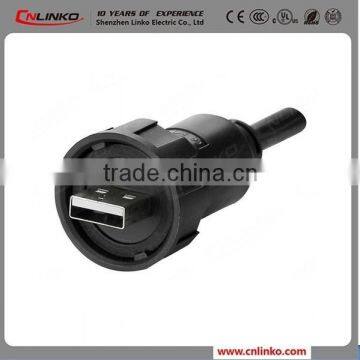

IP67 Waterproof USB 2.0 Extender USB Socket Universal, Suitable for Machinery and Equipment
Product Description
With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.
Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.
Product Pictures:
Product Datasheet:
YU-USB2-CPI-01-100; YU-USB2-JSX-01-001 Male Plug with 1M cable; Female Socket | |
| Specification | |
| Connecting mode: | Quickly bayonet connect |
| Protection level: | IP67 |
| Cable specification: | 0.15 mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 4 |
| Current rating(A): | 1.5A |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Usb Panel Mount Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Packaging & Shipping
- 1. Normally, our price is based on our box packing;
- 2. Customized packing is welcome, MOQ of printing customized box is 1,000 pcs/model;
- 3. Delivery Detail: 7-10 working days after received deposit;
- 4. You may choose our shipping partner or your own partner.
- 5. 100% T/T in advance is required after confirming the order.
Our Services
- 1. CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard;
- 2. We have professional quality control system and R&D department to strictlymanufacture each product.
- 3. 100,000 pcs per month.
- 4. National level laboratory, and have flexible production line, to make quick action tourgent customized needs.
- 5. We will supply the best service to you. Anything, please feel free to contact us.
