3*12 dBi 3-N Female Connector 2.4G MIMO Directional Panel Antenna
Negotiable
/ Piece
10 Pieces(Min. Order)
- SHENZHEN/XIAMEN/HANGZHOU
- T/T Credit Card PayPal
You May Like
-
dual vertical fiberglass2.4G & 5.8G WiFi Omni antenna
-
SMA 2.4G 5.8G WiFi Rubber Duck Antenna
-
High Gain 7dBi Mag Mount 3G Antenna
-
12dBi gain outdoor 890-960MHz GSM &CDMA fully welded cellular yagi antenna
-
high gain 2.5dBi 27MHz Mobile Radio CB Antenna
-
5/8 wave 868M high gain 5.5dBi vehicle mobile NMO car whip antenna
Product Details
| Place of Origin | Fujian, China | Brand Name | TESUNHO Directional Panel Antenna | |
| Model Number | TDJ-B-12-2425VS-65 Directional Panel Antenna |
Product Description
Product Description

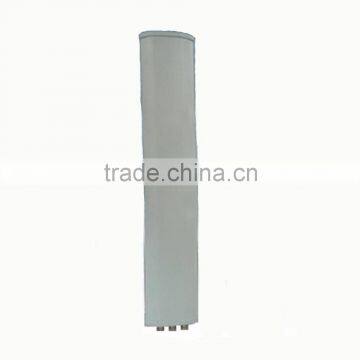

3*12 dBi MIMO Directional Panel Antenna
Directional Panel Antenna main features
| Model No. | TDJ-B-12-2425VH-65 |
| Frequency Range | 2400-2500MHz |
| Impedance | 50 Ohm |
| Gain | 2*12dBi |
| Polarization | Vertical and horizontal |
Directional Panel Antenna specification
| Electrical Specifications | |
| Frequency range(MHz) | 2400~2500 |
| Polarization | Vertical and Horizontal |
| Gain(dBi) | 2×12 |
| half-power beam width(°) | H:65 V:30 |
| Front-to-back ratio(dB) | ≥25 |
| Input Impedance(Ω) | 50 |
| VSWR | ≤1.5 |
| Isolation between ports(dB) | ≥28 |
| Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º |
| Sidelobe suppression for first sidelobe above horizon(dB) | 15 |
| Maximum input power(W) | 200 |
| Lightning protection | DC Ground |
| Mechanical Specifications | |
| Input connector type | 2-N Female |
| Dimensions-mm (Height/Width/Depth) | 250*114*54 |
| Packing size(mm) | 280*130*110 |
| Antenna weight(kg) | 1 |
| Radome material | UPVC |
| Radome color | Gray |
| Mechanical tilt(°) | 0~10 |
| Operating temperature(°c) | -40~60 |
| Rated Wind Velocity(m/s) | 60 |
| Mounting hardware(mm) | Ø35~ Ø50 |
Packaging & Shipping
Directional Panel Antenna x 1
Following are for two way radio
| MOQ | 1pc for sample; 100 for mass production |
| Packaging | Gift box, 20pcs/carton |
| Trade Terms | FOB Xiamen/Shenzhen/Hangzhou |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after receiving the payment |
| Payment | T/T, West Union, Money Gram, PayPal,Escrow or LC |
| Warranty | Radio 1 year; Accessories 3 Months |
Our Services
Radio Warranty
| Item | Period | Service |
| Main Unit | 1 Year Warranty | finish maintainance within 1-15days after receiving the returned units |
| Battery | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
| Charger | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
Radio Design Services
| Project |
| Repeater Design and Production |
| PCB/PCBA Design and Production |
| Chip programme Design and Production |
| Analog walkie talkie Design and Production |
| Internet walkie talkie Design and Production |
| Digital walkie talkie Design and Production |
| Switching power supply Design and Production |
Company Information
| Professional | 10 years Electronics Design Experience. Powerful and reliable R&D team. |
| Effective | Instant respond to customer's enquiry. Control design and productive cost, cost-effective. |
| Trusted | Never reveal customers design. Exclusivity is guaranteed! |
| To-be-perfect | Because of all the above. |
| Target Customer | Who has distinctive foresight on the industry. Who wants to save the high expenses on R&D in order to enhance integrated competition. Whole sellers who has a large local market and wants its own brand. |
Leave an enquiry for more details about the Directional Panel Antenna!
