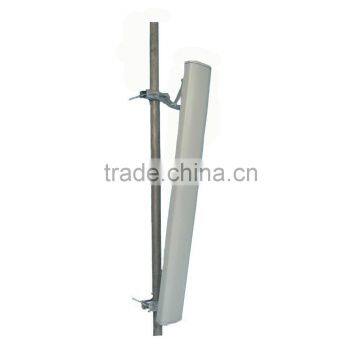

2.4G 5.8G dual band 4-N female connector 2*14/2*16 dBi sector panel antenna
- SHENZHEN/XIAMEN/HANGZHOU
- T/T Credit Card PayPal
You May Like
-
professional DC Ground 2*15 dBi 2-N female 2.4G directional panel antenna
-
2*14 dBi 2-N female connector MIMO directional panel 2.4G antenna
-
3*12 dBi 3-N Female Connector 2.4G MIMO Directional Panel Antenna
-
dual vertical fiberglass2.4G & 5.8G WiFi Omni antenna
-
SMA 2.4G 5.8G WiFi Rubber Duck Antenna
-
High Gain 7dBi Mag Mount 3G Antenna
Product Details
| Place of Origin | Fujian, China | Brand Name | TESUNHO panel antenna | |
| Model Number | TDJ-B-1416-2458V2H2-90 panel antenna |
Product Description
2.4G 5.8G dual band sector panel antenna
panel antenna main features
| Model No. | TQZ-WZ-2-433V-2 |
| Frequency Range | 2400-2500MHz 5725-5850MHz |
| Impedance | 50 Ohm |
| Gain | 2*14dBi(2.4G) 2*16dBi(5.8G) |
| Polarization | Vertical and horizontal |
panel antenna specification
| Electrical Specifications | ||
| Frequency range(MHz) | 2400-2500MHz | 5725-5850MHz |
| Polarization | Vertical and horizontal | |
| Gain(dBi) | 2×14 | 2×16 |
| half-power beam width(0°) | H:90 V:15 | H:90 V:7 |
| Front-to-back ratio(dB) | ≥23 | ≥23 |
| Input Impedance(Ω) | 50 | |
| Isolation between ports(dB) | ≥28 | |
| Cross-polar ratio(dB) | ≥15@0º ≥10@+/-60º | |
| Sidelobe suppression for first sidelobe above horizon(dB) | 15 | |
| VSWR | ≤1.5 | ≤1.5 |
| Maximum input power(W) | 200 | 100 |
| Lightning protection | DC Ground | |
| Mechanical Specifications | ||
| Input connector type | 4×N Female | |
| Dimensions-mm (Height/Width/Depth) | 1000*114*54 | |
| Packing size(mm) | 1050*130*110 | |
| Antenna weight(kg) | 6.4 | |
| Radome material | UPVC | |
| Radome color | Gray | |
| Mechanical tilt(°) | 0~10 | |
| Operating temperature(°c) | -40~60 | |
| Rated Wind Velocity(m/s) | 60 | |
| Mounting hardware(mm) | Ø40~ Ø75 | |
panel antenna x 1
Following are for two way radio
| MOQ | 1pc for sample; 100 for mass production |
| Packaging | Gift box, 20pcs/carton |
| Trade Terms | FOB Xiamen/Shenzhen/Hangzhou |
| Express delivery | DHL/UPS/FEDEX/EMS/TNT |
| Delivery time | 3-5 days after receiving the payment |
| Payment | T/T, West Union, Money Gram, PayPal,Escrow or LC |
| Warranty | Radio 1 year; Accessories 3 Months |
Radio Warranty
| Item | Period | Service |
| Main Unit | 1 Year Warranty | finish maintainance within 1-15days after receiving the returned units |
| Battery | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
| Charger | Half Year Warranty | Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation |
Radio Design Services
| Project |
| Repeater Design and Production |
| PCB/PCBA Design and Production |
| Chip programme Design and Production |
| Analog walkie talkie Design and Production |
| Internet walkie talkie Design and Production |
| Digital walkie talkie Design and Production |
| Switching power supply Design and Production |
| Professional | 10 years Electronics Design Experience. Powerful and reliable R&D team. |
| Effective | Instant respond to customer's enquiry. Control design and productive cost, cost-effective. |
| Trusted | Never reveal customers design. Exclusivity is guaranteed! |
| To-be-perfect | Because of all the above. |
| Target Customer | Who has distinctive foresight on the industry. Who wants to save the high expenses on R&D in order to enhance integrated competition. Whole sellers who has a large local market and wants its own brand. |
Leave an enquiry for more details about the panel antenna!
