TESUNHO TH-UV7R dual band ham radio two way radio

FOB Price

USD $7 - $35 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product description:

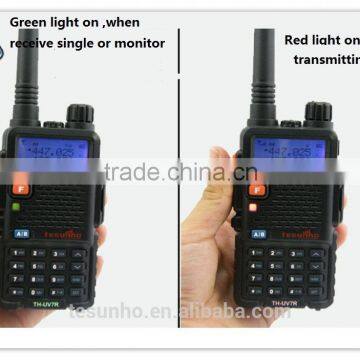

1)TESUNHO TH-UV7R dual band dual display walkie talkie

Item number	TH-UV7R
General
Frequency Range	1)76-108MHz(FM Receive only)
	2)136-174MHz & 400-520MHz or
	3)136-174MHz & 245-246MHz
Channel No.	*1282**
Frequency Stability	±2.5ppm
Antenna	High gain antenna
Antenna Impedance	50Ω
Operating Voltage	DC 7.2V
Mode of operation	Simple or semi-duplex
Dimension(W x H x D)	100 x 52 x 32 mm
Weight	250g(including battery, antenna)
Transmitter
Output power	≥4W(H) ≥0.5W(L)
Modulation Mode	16kΦF3E / 11kΦF3E
Maximum deviation	<5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation	<7μW
Adjacent Ch. power	≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics	6dB
Current	≤1.6A(5W)
CTCSS/DCS deviation	0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity	8-12mv
Intermediation distortion	<10%
Receiver
RF Sensitivity	-122dbm(12db SINAD)
Audio power	≥0.5W
Audio Distortion	≤10%
Intermediation	≤-65dB(Wide) / ≤-60dB(Narrow)
Selectivity	≤-65dB(Wide) / ≤-60dB(Narrow)
Spurious Rejection	≤-65dB
Blocking	≥85dBuv/m

2)TESUNHO TH-UV7R dual band dual display walkie talkie

Dual band, dual display, dual standby	A/B band independent operation
128 groups channels storage	FM radio and 25 stations storage
Wide/Narrow Band(25kHz/12.5kHz)	0-9 grades VOX selectable
Chinese/English voice prompt	CTCSS/DCS and scanning
1750Hz tone	PTT & ANI ID
Priority transmit selectable	0-9 grades squelch level setting
LED display mode	Keypad beeper setting
Transmit over beeper	Dual watch/monitor
Receive saving function	Auto keypad lock
Power-on display	Battery power voltage
Power-on message	Repeater offset function
Channel name display and setting	Reapter shift direction
VFO step function	Shortcut menu operation mode
Emergency Alarm	DTMF encoder & decoder(optional)
Remote skill/stun/activate(optional)	High/Low TX power selectable
Busy channel lock-out(BCLO)	Transmitter time-out timer(TOT)
Voice companding	Tri-color background light selectable
PC programmable	Wire clone

3)TESUNHO TH-UV7R dual band dual display walkie talkie

4)TESUNHO TH-UV7R dual band dual display walkie talkie

Warranty for Walkie talkie

Item	Period	Service
Main Unit	1 Year Warranty	finish maintainance within 1-15days after receiving the returned units
Battery	Half Year Warranty	Within Half Year:send you new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation
Charger	Half Year Warranty	Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation

5)TESUNHO TH-UV7R dual band dual display walkie talkie

6)TESUNHO TH-UV7R dual band dual display walkie talkie
