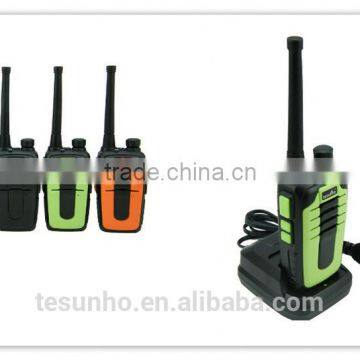

TESUNHO TH-320 mini handheld professional WALKIE TALKIE two way radio

FOB Price

USD $7 - $23 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Product description:

1)TESUNHO TH-320 smart walkie talkie two way radio

Basic parameters for TH-320 smart walkie talkie

GENERAL
Frequency Range	400-520MHz
Channel Number	16
Channel Space	25 / 12.5 KHz
Operating Voltage	DC 3.7 V
Battery	1800 mAh (Li)
Battery Life	More than 25 Hours (by 5-5-90 working cycle)
Frequency Stability	±2.5ppm
Operating Temperature	-20°C~+55°C
Antenna impedance	50 Ω
Size	103mm×55mm×31mm(without antenna)
Weight	140g(Including battery)
TRANSMITTER
	Wide band	Narrow band
Power Output	2W (UHF) can be adjusted by our engineer
Modulation	16KΦF3E	11KΦF3E
Spurious Emission	≤-36dBm	≤-36dBm
Adjacent Channel Power	≥70dB	≥60dB
Audio Distortion	≤5%
RECEIVE
	Wide band	Narrow band
RF Sensitivity (12db SINAD)	0.20 μV	0.20 μV
Adiacent Channel Selectivity	≥60dB	≥55dB
Intermodulation Rejection	≥65dB	≥60dB
Spurious Response	≥65dB	≥65dB
Audio Power Output	500mW
Audio Distortion	≤5%

2)TESUNHO TH-320 Smart walkie talkie two way radio

ADDITIONAL FUNCTIONS:

---CALLING FUNCTION

---VOX FUNCTION

3)TESUNHO TH-320 SMART WALKIE TALKIE TWO WAY RADIO

4)TESUNHO TH-320 SMART WALKIE TALKIE TWO WAY RADIO

Warranty for Walkie talkie

Item	Period	Service
Main Unit	1 Year Warranty	finish maintainance within 1-15days after receiving the returned units
Battery	Half Year Warranty	Within Half Year:send you new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation
Charger	Half Year Warranty	Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation

5)TESUNHO TH-320 SMART WALKIE TALKIE TWO WAY RADIO

7)Know more about our walkie talkie products ,pls click:

TESUNHO TH-320 dual band dual display walkie talkie
