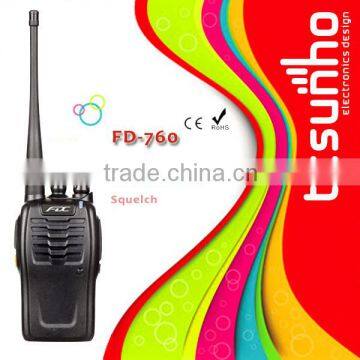

FDC FD-760 uhf long range radio interphone walkie

Voice Compandor function

High Voltage protection

High/low power switchable

Wide/narrow band selection

Monitor function;TOT function

Add scan channel and priority channel scan

Emergency alarm function

High-quality audio output

VOX function,VOX level(0-9) adjustable

Low battery alarm with voice prompt

Busy channel lockout

Voice function

Battery indicator;Battery save

Squelch Level adjustable

FD-760(CE+RoHS approved)

General

Frequency Band

VHF(Not Available)

UHF

Frequency Range

136-174MHz

350-390MHz/400-470MHz/460-520MHz

Channel Capacity

16

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 °C - +60 °C

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

about 250g

Battery

1500 mAh(Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

Communication Range

3-5km(Downtown),6-20km(In the Open Area)

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA

 1 Years Warranty

finish maintainance within 1-15days

after receiving the returned units

Within Half Year:send you brand new one if it is not manually damaged;

Beyond Half Year:supply cost-effective renovation

Within Half Year:send you brand new one if it is not manually damaged;

Beyond Half Year:supply cost-effective renovation

10 years Electronics Design Experience.

Powerful and reliable R&D team.

Instant respond to customer's enquiry.

Control design and productive cost, cost-effective.

Never reveal customers design.

Exclusivity is guaranteed!

Who has distinctive foresight on the industry.

Who wants to save the high expenses on R&D in order to enhance integrated competition.

Whole sellers who has a large local market and wants its own brand.
