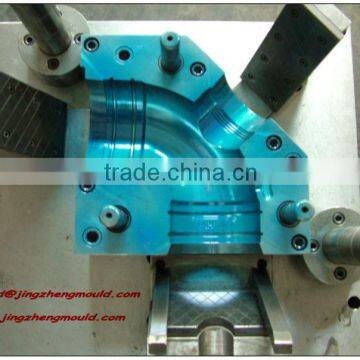

PVC PUSH FIT FITTING MOLD

General Mold Specifications:
General specifications:
Name:Plastic injection moulds
Plastic material:PVC/PPR/PP/PE/ABS/POM/PPH/PERT/PVDF/PPSU/...etc
Steel of Cavity & Core:DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20..etc
Steel of Mouldbase:S50C.LkM standardetc
Nos of Cavity:Customized
Fitting standard:EN/DIN/GB/BS
Core pulling system:Hydraulic cylinders
Injection molding machine:Engel ES3550/550K
Gate system:Tunnel gate/Point gate/Direct gate/Sub-gate/Rectangular gate...etc.
Design software:AutoCAD/UG/Solidworks
Mould heat treatment: Tempering/Quenching/Nitriding
Surface treatment: Polish/Etched...ect.
Mould ejector way: Ejector pin/Ejector plate/ Air valves/Slide.
Hardness of Cavity & Core:35-52HRC
Hardness of Wear Parts:45-52HRC
Core pulling system:Motor /oil cylinder/ stripping plate/angel pin/machinery.
Mould Accessories:DME/HASCO Standard.
Cooling system:In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish:Diamond polish
Molding life:500,000-2,000,000shots
Runner:Cold or Hot
Delivery time:35-75work days
Packing:wooden case

Why choose JINGZHENG TEAM?

Our advantages:

1.Good experience in mould making since the year of 1998.

2.Patent in collapsible fitting moulds.

3.Machinery core pulling system save cost and increase production efficiency.

4.Perfect core pulling distance within 180mm.

5.Excellent R&D team.(We can offer you 3D mould design with all details within one day.)

6.Efficiency production department.(We can finish Push-Fit fitting mould of size 110mm in stwo cavity with in 45days.)
