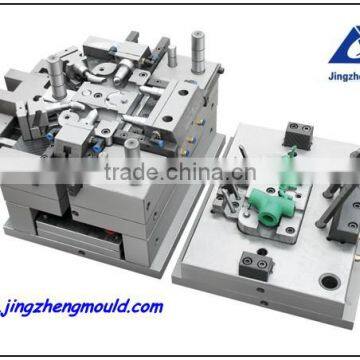

MOLD IN HARDWARE FOR BALL VALVE

We JINGZHENG MOULD FACTORY is PROFESSION in making PIPE FITTING MOULDS since 1998.

Our main products:
PVC pipe fitting molds(from 1/2" to 12")
PPR Pipe fitting Molds (from 20 to 250mm)
PP/PE Compression Fttings(from 20 to 200mm)
PP collapsible fitting molds (from 32 to 450mm)
PVC collapsible fittings molds(from 32 to 600mm)
HDPE E-FUSION Fitting Molds(from 50 to 315mm)
HDPE Pipe Fitting Molds(from 20 to 1200mm)
Ball Valve Molds(from 1/2" to 6")

General Mold Specifications:
Name:Plastic injection moulds
Plastic material:PVC/PPR/PP/PE/ABS/POM/PPH/PERT/PVDF/PPSU/...etc
Steel of Cavity & Core:DIN 1.2316/ DIN 1.2738/DIN 1.2344 /M300/ 718/ P20..etc
Steel of Mouldbase:S50C.LkM standardetc
Nos of Cavity:Customized
Fitting standard:EN/DIN/GB/BS
Core pulling system:Hydraulic cylinders
Injection molding machine:Engel ES3550/550K
Gate system:Tunnel gate/Point gate/Direct gate/Sub-gate/Rectangular gate...etc.
Design software:AutoCAD/UG/Solidworks
Mould heat treatment: Tempering/Quenching/Nitriding
Surface treatment: Polish/Etched...ect.
Mould ejector way: Ejector pin/Ejector plate/ Air valves/Slide.
Hardness of Cavity & Core:35-52HRC
Hardness of Wear Parts:45-52HRC
Core pulling system:Motor /oil cylinder/ stripping plate/angel pin/machinery.
Mould Accessories:DME/HASCO Standard.
Cooling system:In core baffle cooling and in cavity plate chain drilling type cooling
Surface finish:Diamond polish
Molding life:500,000-2,000,000shots
Runner:Cold or Hot
Delivery time:35-75work days
Packing:wooden case

Our Advantage
1.High quality
2.Reasonable price
3.On time delivery
4.Good After-sale service
5.Strict quality control
6.All the mould are automotic.

Offer you
In-time response on letters, telephone calls or fax
In-time supply the quotation and mould designs
In-time communication on the technical points
In-time sending pictures for the mould machining progress and mould finishing schedule
In-time mould test and sample delivery
In-time mould delivery.

For more information please contact us.
