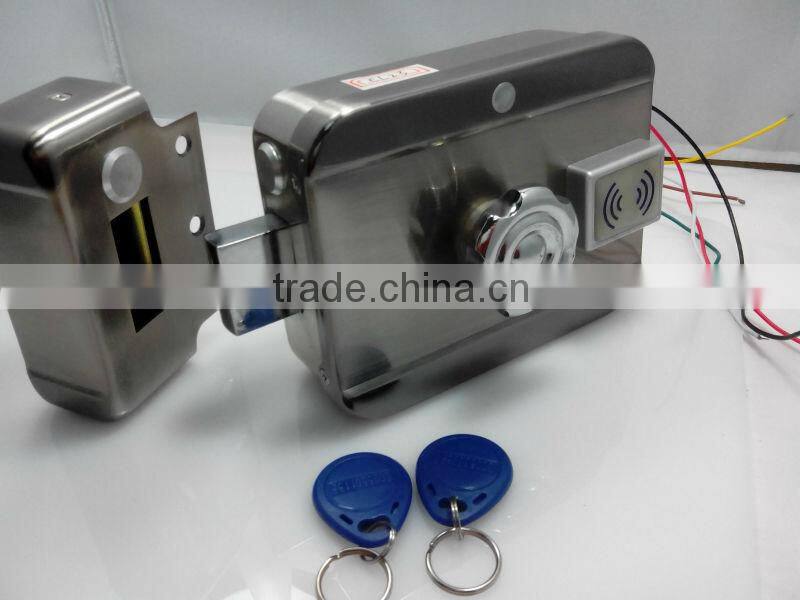

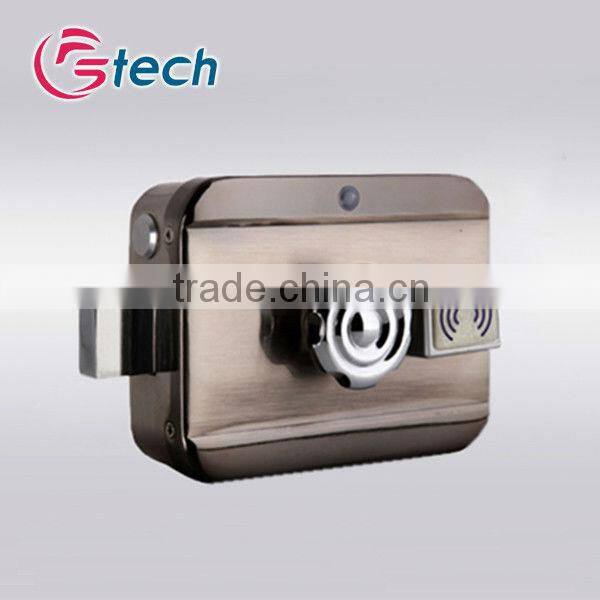

Electric Rim Lock Rim Night Lock Push to Open Lock for Access Control System

Specifications

Electric rim lock description:

1.Fail secure, power on to unlock

2. Electric control lock is powered by electricity, can open with keys, rotary knob,and cards from inside and outside

3.Low noise, no shock ,Low power consumption,long service life, be convenient to install

4.Intelligent integrated electric rim lock, no noise for openning or closing the door

5.Made of top quality metal ensure to provide durable security, reliability & safety to the user

Electric rim lock technical parameters:

Electric rim lock advantages & feature:

1.High security and low noise

2.Available different kind of door

3.No necessary to identify installation directions

4.Supports video door phone and access control system

5. Adopt user card,button, or wireless remote control to opening

6.Can delete the user card independently via the infrared remote control function

7.This electric rim door lock adopts newest patent technology,having incomparable advantages from traditional electric locks

8. Remote control gate locks is very easy to install,regardless of left and right sides.

9. Elelctric rim lock can work with door closer and intercom system,lock automatically,no noise for openning or closing the door.

10. Electric control lock suitable for"left open/outside","left open/inside","right open/inside"and"right open/outside".

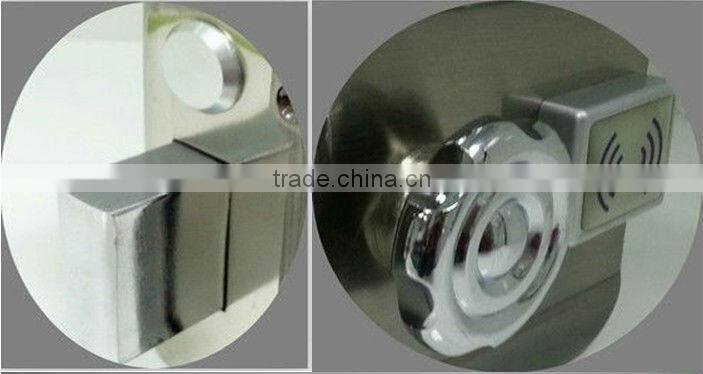

Electric rim lock details:

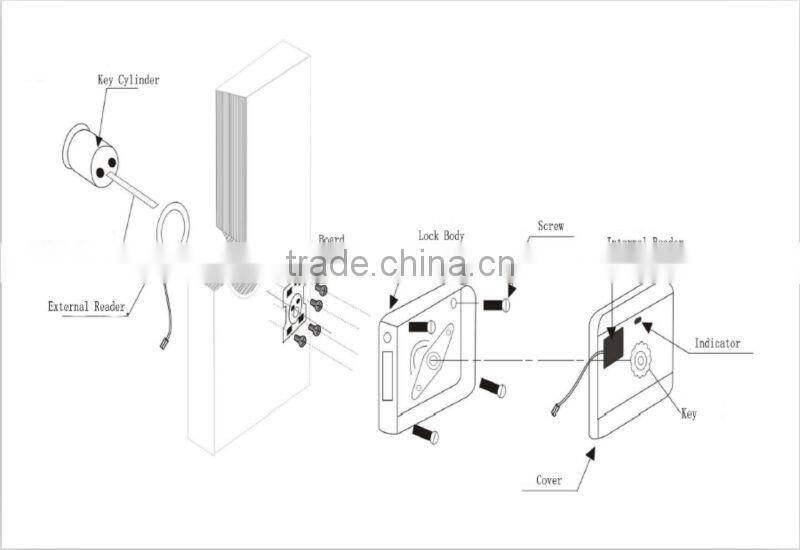

Electric rim lock installation:

Infrared remote controller operation:

1.Management password is:123456

2.Enter into function steps:Input management password (123456), press CALL, if success the buzzer rings one time, otherwise ring twice.

3.Add user card: Input management password, press CALL and  1  , sweep added user card, press EXIT to exit.

4.Delete user card: Input management password, press CALL and  2 , sweep delete user card, or input card number(10 digits), press CALL; press EXIT to exit when finish.

5.Modify management password: input management password, press CALL and  3  , input new password, pressCALL then exit automatically.

6.Add wireless remote controller: input management password, pressCALL and  4  , press wireless remote controller button, pressEXIT to exit when finish.

7.Delete wireless remote controller: input management password, pressCALL and  5  , press wireless remote controller button, pressEXIT to exit when finish.

8.Delete all remote controller: input management password, pressCALL and  6  then exit automatically.

9.Delete all user card: input management password, pressCALL and  7  then exit automatically.

Forget the administrator password and making the login card, delete card:

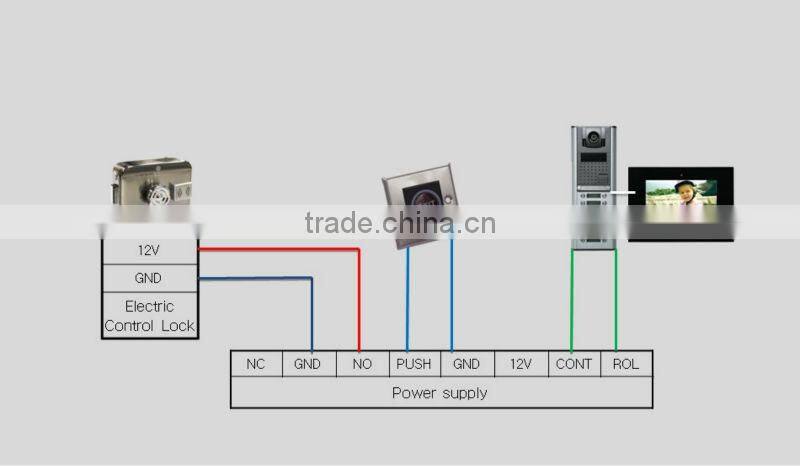

Electric rim lock installation and wiring:

Electric rim lock series:

Customer and us:

Payment:

If the total amount is less than 500USD,we prefer to accept PayPal or Western Union;for big amount we accept bank transfer.

Shipment:

Normally we will use UPS,DHL,FEDEX or EMS express.It usually takes 3-7 working days depending on the countries deliver to.

We can also arrange other shipment way per your requirement and instrution ,such as sea shipment,air shipment ,etc.

Warranty:

Warranty for one year,maintenance forever,change within 3 mounths because of product quality.
