Home > Products > Packaging Machine > XYC-420Flexo Plate Making Machine

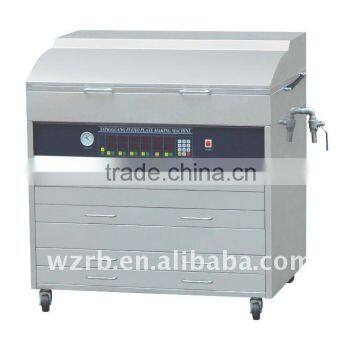

XYC-420Flexo Plate Making Machine
Negotiable
/ Set
1 Set(Min. Order)
- ningbo
- T/T L/C D/P D/A Credit Card
You May Like
-
Paper Cup Making Machine
-
XYC-420 Flexo Plate Making Machine
-
ZBJ-H12 High Speed Paper Cup Machine With Collecting Machine
-
Rigid Box Machine, Shoe Box Making Machine
-
Hot Sell Automatic Ultrasonic Double PE Paper Cup Machine
-
Ice Cream Cup Cutting Machine /China No.1 Automatic Ultrasonic Double PE Paper
Product Details
| Condition | New | Packaging Type | Cartons, Case | |
| Packaging Material | Plastic, Wood | Automatic Grade | Automatic | |
| Driven Type | Electric | Voltage | 220V | |
| Power | 1.3kw | Place of Origin | Zhejiang, China | |
| Brand Name | Ruibang | Model Number | XYC | |
| Weight | 500kg | Dimension(L*W*H) | 2,445(L)x859(W)x1,486(H)mm | |
| Certification | ce | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
characteristic:
This equipment incorporates plate-washing ,plate-solarizing,glutiosity-free and plate-drying ,In addition ,It adopts lower brush to wash plate rotatablely .with high precision on plate-making and convenient operation .It is an ideal equipment for making flexible printing plate
1.With durable stainless cover.
2.We adopt original Philip plate for making lamp and barretter.
3.Vacuum making film made in japan, UV diffuse reflection principle.
4.PC controlled system.
5.Temperature sensor made in America.
6.Automatic plate cleaning system.
7.We adopt Panasonic plate cleaning motor, constant temperature dryer which is made
In Japan (Orix).
8.Glue removing is done by original Philip UVC.
9.Exposure, cleaning, drying and glue removing can be fully finished by this machine,
Main Technical Parameter:
2.We adopt original Philip plate for making lamp and barretter.
3.Vacuum making film made in japan, UV diffuse reflection principle.
4.PC controlled system.
5.Temperature sensor made in America.
6.Automatic plate cleaning system.
7.We adopt Panasonic plate cleaning motor, constant temperature dryer which is made
In Japan (Orix).
8.Glue removing is done by original Philip UVC.
9.Exposure, cleaning, drying and glue removing can be fully finished by this machine,
Main Technical Parameter:
Model type | XYC-4334 | XYC-6040 | XYC-9060 | XYC-120100 |
Printing Area | 420*300mm | 450*600mm | 900*600mm | 1200*1000mm |
Power | 1.3kw | 2.0kw | 3.2kw | 3.5kw |
Overal dimension ( L X W X H ) mm | 710*610*1050 | 860*710*1050 | 1190*910*1150 | 1500*1310*1160 |
Weight | 75kg | 160kg | 250kg | 320kg |
Contact Us
- Zhejiang HanGao Machinery Co., Ltd.
- Contact nameLifeng Zheng Chat Now
- Phone86-0577-65555022
- AddressNo.10-11 Qingbo Industral Zone,Jinhu Street,Ruian City, Wenzhou, Zhejiang
