ZBJ-H12 High Speed Paper Cup Machine , 3oz--16oz

working principles / procedures

1. Square paper pieces be printed(use offset printer)and cut(use die-cutting machine)in advance, becomes cup-fan-wall-papers to make cup body.

2. Paper sender delivers the cup-fan-wall-papers to molds, sealing the body .

3. The cup bottom paper (reel) automatic feed to the bottom cut parts,be cut into

round pieces and sent to molds with the sealed cup body.

4. Pre heating the cup bottom,bottom heating,curlinging the top edge .

5. Sealing the bottom with body.

6. Knurling the cup bottom.

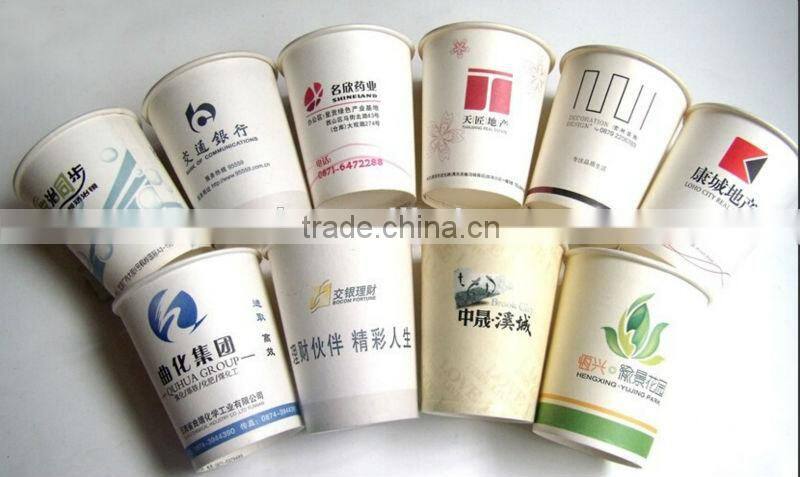

7. Discharging finished cups automatically from molds. Sending to collector and

be collected and piled and counted automatically.

Technical Specification:

For comparison statement with competitors

1)     gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year. for the two type of gear box, pls find at attachments.

2)     speed reducer: 1:30 100 type, other company use 1:20 80 type.

3)Some bearing import from out of china.

JAPAN:  NTN ,   NSK

GERMANY:   FAG

ITALY:  SKF

Contractor: CHINT  brand (The biggest electric parts supplier in china)

/  it is a public company

5)Ultrasonic:       EVER GREEN

6)Inside of the machine , using big size of chains

7). AC DRIVE- company make & capacity:  EURA  ( Brand)  220V     almost never have problem when we are using

8)2800*1300*1700mm machine size, which is big and  much stability

9). Machine Physical weight (before packing)    1.7ton

Each set machine goes together with  a set of free accessories.

Each machine has one year warranty.
