Home > Products > Die Cutting Machine > MQ-420420 Roll to roll / roll to sheet / label die cutting machine with hot stamping / lamination / punching function

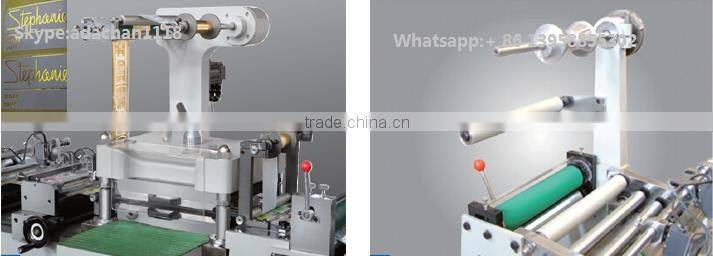

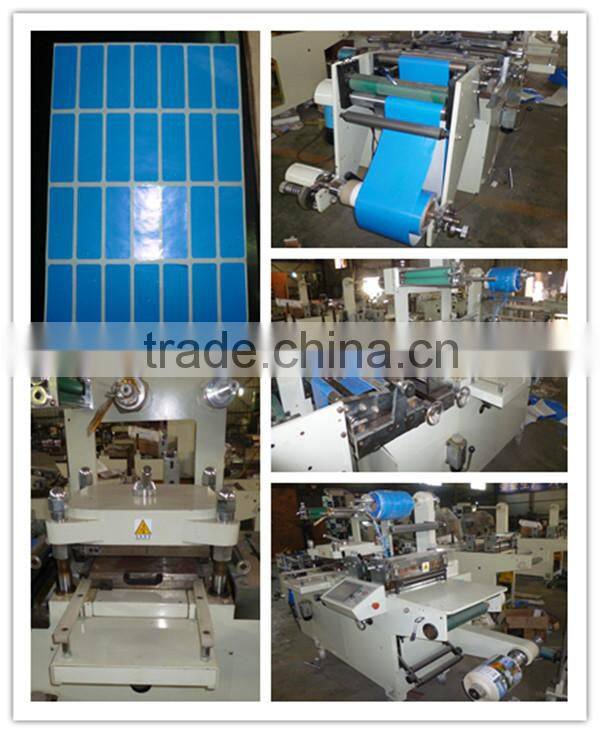

MQ-420420 Roll to roll / roll to sheet / label die cutting machine with hot stamping / lamination / punching function
Negotiable
/ Set
1 Set(Min.Order)
- ninfbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Paper Cup punching Machine
-
MQ-420C Self Adhesive electronic Label Die Cutting Machine
-
MQ-320C/420C Label Die Cutting Machine/roll to sheet die cutting machine
-
hot sell Automatic Ultrasonic Double PE Paper Cup Machine with cheap price
-
2016 Automatic High Speed Paper Cup Machine,paper cup machine,paper glass making machine
-
2015 Burger carton forming machine
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | ZRB | Model Number | MQ-420C | |
| Voltage | 220v | Power(W) | 3.5kw | |
| Dimension(L*W*H) | 2750 x 1150 x 1760 | Weight | 1800kg | |
| Certification | CE, ISO, TUV | Warranty | 1year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Product Description
Characteristic:
1.This is a flatbed die cutting machine with high-precision.
2.The paper-going and paper sheeting is controlled by computer. The three photo electric eyes do the
web guiding job.
3.Die cutting,laminating,waste rewinding,paper sheeting and rewinding can be finished
in one process.
4.It is applicable to die cut self adhesive label,Dacron film label and laser anti-false label.
5. It is a good ideal auxiliary of flexo printing machine, screen printing machine, relief printing
machine and so on.
6. This is the best die cutting machine of the label printing company.
Suitable material
1.Glutinous product: silicone gel sheet,conducting resin,double-faced adhesive tape,and so on.
2. Dustproof material: cotton pads, filter, dust screen, non-woven fabrics
3. Shockproof product: cushion, PORON cushion, 3M, EVA
4. Insulate, EMI, aluminum foil, clutch gold, PVC,PET, kraft paper,
5. Btu-block: silicon sheeting, mica lamination, fibre plate, heat insulation cotton.
Main Technical Parameter:
Model | MQ-420C |
Cutting speed | 20-160m/min |
Max. feeding diameter | 450mm |
Max. web width | 420mm |
Max. die cutting width | 400mm |
Max. die cutting length | 400mm |
Positioning precision | ±0.1mm |
Total power | 3.5kw |
Voltage | 380v±10% |
Weight of machine | About 1800kg |
Dimension | 2600×1250×1500mm |
