Popular Sign Equipment WER Fiber Laser Marking Machine
- Shanghai
- Credit Card
You May Like
-
Popular Sign Equipment WER Semiconductor Laser Marking Machine Price
-
WER Promotional Mini Curving Laser Machine for Bamboo and Glass
-
WER Wood Advertisement CNC Router
-
Hot Sale Auto-feeding Laser Flatbed Machine for Synthetic Glass and Wood
-
2016 Hot Selling WER Wood Plasma Cutting Machine
-
CE Certificate 100W Flatbed Laser Engraving Machine for Sale
Product Details
| Condition | New | Laser Type | Fiber Laser | |
| CNC or Not | Yes | Cooling Mode | Air Cooling | |
| Control Software | Software | Graphic Format Supported | AI, BMP, DWG, DXF, DXP, LAS, PLT | |
| Working Accuracy | 0.002mm | Place of Origin | Shanghai, China | |
| Brand Name | WER | Model Number | WER-B10F | |
| Power(W) | 800 | Certification | CE, ISO, SGS | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

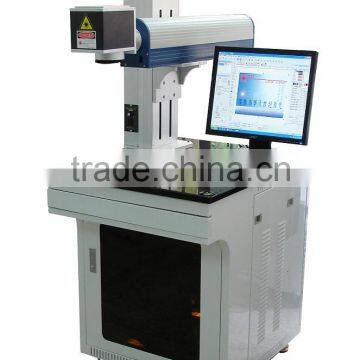

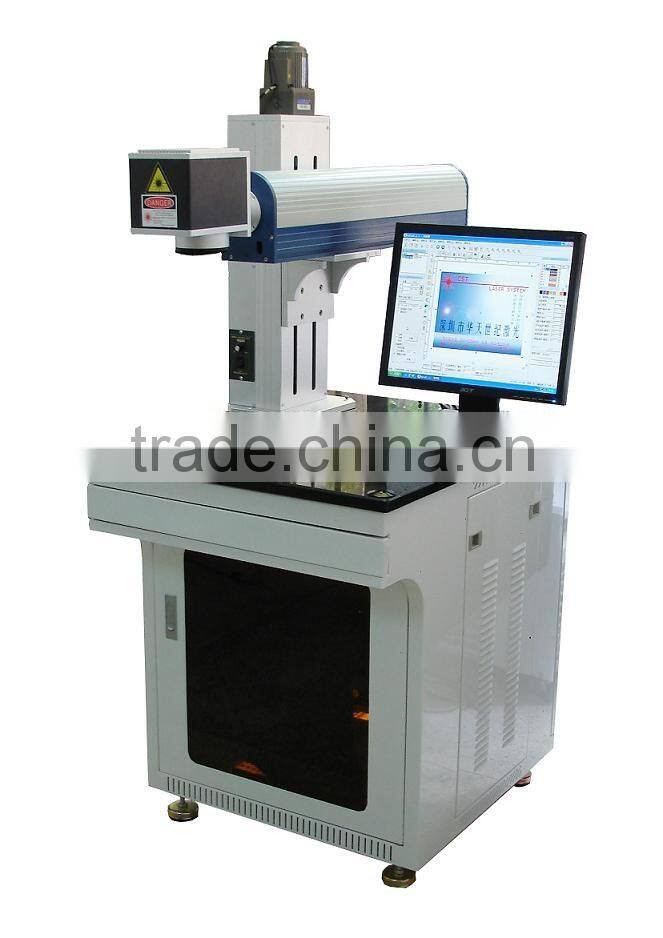

Popular sign equipment WER Fiber laser marking machine
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Applications:
Available for marking such hard material as metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, ABS, PVC, PES, steel, titanium, copper and others.
Applied to industries of mobile phone, sanitary ware, tools, accessories, knives, eyeglasses, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless, steel products and others
Applications:
Materials: Most of Non-metallic materials such as ceramics, PVC, ABS, acrylic, plastic, bamboo, organic materials, epoxide resin, glass, wood, and paper, etc.
Field: Woodworks, craft gifts, electronic components, clothes, leather products, paper, medicines, food and package, etc.
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Technical Parameters
Model | WER-B10F |
Laser power | 10W/20W/30W |
Laser wavelength | 1065±10nm |
Q-frequency | 20KHZ-100KHZ |
Divergence | 0.3 mard |
Marking range | 100*100mm/200*200mm/300*300mm |
Minimum character | 0.1mm |
Minimum line width | 0.01mm |
Marking speed | 10mm/s |
Marking depth | 0~0.5mm(Depending on the material) |
Engraving line speed | ≤7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | m²:1.2~1.8 |
Marking format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency, Etc. |
Working voltage | 220V±10%/50HZ/4A |
Unit power | <0.5kw |
Working environment Required | Clean and dust free of dust less |
Working condition Humidity | 5%-75% Free of condensed water |
Laser module life | >100000 hours |
Net weight | 35kgs |
Packing size | 0.77*0.25*0.6m |
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Features:
- 1. Fiber laser marking machine is the 3th generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
- 2. The quality of laser beam is very good (near to the limit of diffraction) exporting TEMOO fundamental transverse mode, M2 near to 1, expanding angle of laser beam is only 1/4 of the diode laser marker), Therefore it is very suitable for delicate marking.
- 3. With high repeat frequency of the pulse, power output steadily, energy surge of single pulse is lower than 1% can achieve high speed marking, and control the depth and shape of the facula
- 4. The processing speed is 2-3 times than the traditional marking machine
- 5. Air cooling, the size of the machine is very small.
- 6. Long life, ultra-low consumption, the conversion efficiency is more than 30%, the unit power of the machine is no more than 0.5kw!
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
