80w Economic High Quality CO2 Laser Cutting Machine
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| Engraving Area | 900 x 1200mm | Engraving Speed | 0-500mm/s | |
| CNC or Not | No | Cooling Mode | Water Cooling | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Graphic Format Supported | BMP, DXF, PLT, Other, BMP, DXF, PLT, JPG, GIF, PGN, TIF | |
| Place of Origin | Shanghai, China | Brand Name | WER | |
| Model Number | WER-1290SF | Dimension(L*W*H) | 900 x 1200mm | |
| Certification | CE, ISO, SGS | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

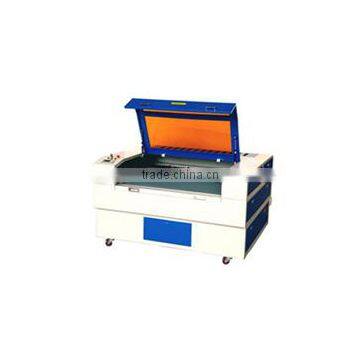

80w Economic High Quality CO2 laser cutting machine
CO2 laser cutting machine
The laser cutting machine uses a big power laser tube to ensure large thickness material can be cut through with very good performance. It is specially designed for high-speed cutting, the smooth and elegant cutting surface will beyond your expectation; It has CE certificate, FDA.
1. Control system: Micro controller
2. Laser tube type: CO2 sealed glass
3. DSP independent operations control system has the industry's most advanced function of continuing carving where power off, and reduce material waste. High Engraving speed, high accuracy, completely off-line operation, easy to operate and save computer resources
4. Mandatory water protection, which can directly avoid the unnecessary loss caused by laser tube working without water
5. Light, electricity, mechanical integration, getting rid of smoke and dust, air blowing protection, a more compact and reasonable mechanical structure, reliable electrical performance
6. The well-known brand laser systems, real-time adjustable laser power, long life
Type | WER-1290SF | WER-1690SF | |||
Laser power | 60w/80W | 60W/80W | |||
Engraving Area (mm) | 900 x 1200mm | 900 x 1600mm | |||
Gross power | 1200w | 1600w / 1800W / 2000W | |||
Laser type | CO2 Laser tube (Double Laser Tubes and Double laser Power Supplies) | ||||
Cutting depth | acryl 0-25mm | ||||
Engraving speed | 0-500mm/s | ||||
Cutting speed | 0-500mm/s | ||||
Resetting positioning accuracy | <0.015mm | ||||
Maximum forming character | English:1.5 x 1.5mm | ||||
Power supply | 220V±10% 50HZ or 110V±10% 60HZ | ||||
Software supported | Artcut, CorelDraw, Photoshop, AutoCAD | ||||
Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF | ||||
Water Cooling (Yes/No) | Yes | ||||
Laser tube(life hours) | 1500 hours | ||||
Assistant Equipment |
| ||||
Optional Spare Parts |
| ||||
Recommended Spare Parts/Consumables | Laser Tube and Lens | ||||
