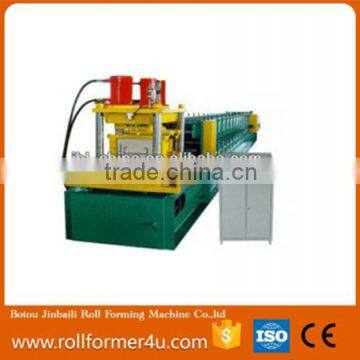

Superior QualityC shape steel structure purlin roll forming machine c channel making profile machine


Main specifications

Material:  GI,Carbon steel

Material thickness:  2-3.0mm

Machine diameter:  about 8500*1000*1300(L*W*H)Weight of machine: about 5 Ton

Decoiler: Manual or hydraulic (customer can choos)

Weight capacity of decoiler: 5 Ton

Forming station: 13

Principle:  80mm diameterForming speed: 0-10m/min

Drive type: 1.5' chain transmission

Roller material: CGr 15 steel,quenched and heated process

Main power:  11Kw

Hydraulic power: 4Kw

Punching:  Hydraulic punching

Electrical control: PLC control system with touch screen

PLC: PANASONIC Brand

Enconder: PANASONIC Brand
Transducer: PANASONIC Brand

The chart of process flow

The equiipments includes

Certification

1.Installing and training machine manufacturer:

1) If buyers visit our factory and check the machine will teach you how to install and use the roll forming machine for sale, and also train your face workers / technician face.
2) Without visiting, we will send user manual and video to teach you how to install and operate.
3) If the buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After the service roll forming machine for sale:

1) One year warranty for all roll forming machine sale.
2) 24-hour technical support by email or by calling
3) If there is any problem encountered profiling machinery sheet steel roof, we will repair roll forming machine for sale for free in one year.

JBL Botou Roll Forming Machinery Manufacturing Co., Ltd. is a company colligatedincluyendo the design, manufacture and sale of wrought ironwork and forming machine. Through constant effort all people, kinberly has already developed into a global company. So far, mainly kinberly it has two ramas-- material forming machines (such as roll forming machines, colored steel tile machine, tile roll forming machines and many different forming machines) and crafts forged (such as wrought iron pet bed & pet feeder, bed / cast iron garden flower stand / shelf / holder flower, garden trellis metal wall and wrought iron hook coat, clothes iron tree, wrought iron garden table & chair, iron fence, iron gate / door, wrought iron arch / pavilion, wrought iron staircase, etc.) and for roll forming machine with 15 years of experience and accumulation, our machines have been well received by our customers for high precision, high stability and low malfunction rate. That the United States, Kazakhstan, Romania, Laindia, etc. are exported As for the wrought ironwork, our company is willing to be engaged in iron metal decoration and classic furniture laindustria, work together to seize the opportunity and create art and build China into a country of art. Most blacksmithing are exported to the United States of America, Germany, the Netherlands, Australia, etc. The new century, new situation, kinberly search "first-rate quality, reasonable prices and comprehensive after sales service" offers both potential and larga- standing clients confidence in our company. Our goal is to build the bridge between you and local manufacturers with our reliable, experienced and professional services. If you estáinteresado in any of our products, please contact us with details of your specific requirements.
