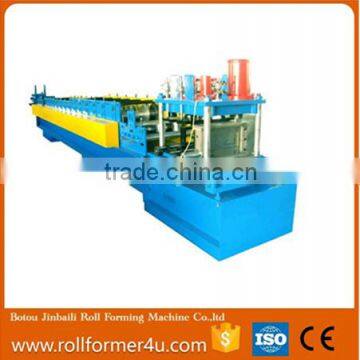

Easy-operatedsteel U Type Quickly Change Roller Roll Forming Machine for steel construction

 Technical specifications and details

(All technical parameters can be changed, according to customer's requirement.)

Manual decoiler :

Max loading : 2 Ton

(1) Roll forming machine

1) Number of forming steps: 13 steps

2) Material of shaft: 45# steel hardening and tempering treatment. Outer diameter 60mm

Tolled shafts

3) Rollers: Material is high grade Cr12 mould steel, with digital-controlled procession. The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

4)Wall plate thickness: 20mm the main frame

5) Main motor power: 7.5 Kw with cyclical planetary gear speed reducer

6) Main stand: 350# H steel welded structure

7) Chain and gear move the line, gear drives. All working actions are controlled by PLC electric cabinet automatically.

8) Suitable power voltage: 220V/60HZ/3Phase (can de designed according to buyer’s requirement)

9) Line working speed (Forming speed):about 10 m/min

Dimension of the machine: 6000mmx800mmx1200mm

(2) Hydraulic Cutting

1) Adopts frame cutting , Stop to cut;

2) The cutting blade material is Cr12 with quenched treatment

3) Adopts welded frame for good rigidity.

4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5) The power of cutting is provided by hydraulic station.

(3) Hydraulic station

1) It supplies the power for the hydraulic cutter.

2) All hydraulic accessories are all use Chinese famous brand products.

3) Hydraulic motor power: 4KW

(4) PLC Control System

1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Delta converter adjusts speed technology, realize the automatic production.

3) Text screen is input and cancelled the working data.

4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.

5) Encoder count, having function of count and measuring length.

6) Suitable power voltage:220V/60HZ/3Phase (can de designed according to buyer’s requirement)

Certification

Packaging Details: PVC water proof film cover and then loading into container

Delivery Detail: 35days after down payment
