good quality w beam guardrail roll forming machine with competitive price

CE CERTIFICATION HIGHWAY GUARD RAIL ROLL FORMING MACHINE Equipment

We are specialized in producing W purline fast guardrail roll forming machine, including coiler machining, cold roll forming machine, automatic product line etc. We had supplied thousands of machines to domestic and foreign countries, such as environmental protection, automobile, steel, warehouse, and logistics industry.

This highway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.

Material Thickness: 2-4mm
Forming Station: 15 excluding the feeding rollers and leveling rollers
7 Rollers leveling
Principal Axis Diameter: 100mm
Working Speed: 10-12m/min
Main Power: 30KW
Leveling Power: 2.2KW
Hydraulic Power: 15KW
Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
Gross Weight of Machine: about 18 Ton
Voltage: 380V, 3 Phase 50Hz

  Main Components

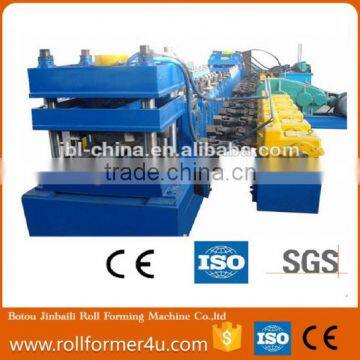

Highway Guardrail Roll Forming Machine

 The guard rail roll forming machine can be designed as two or three wave profiles in one machine,you just need to add some stations at the end of the machine . The products of the guard rail roll forming machine are used as guardrails for the both sides of the highway.

Machine flow chart:

Product Parameters
