p10 3528 led display board indoor

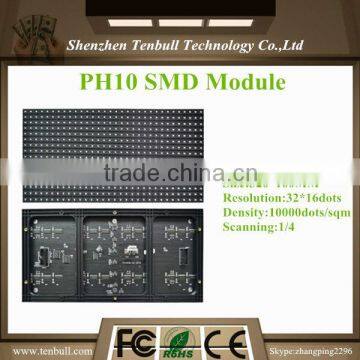

P10-SMD Indoor Module and Cabinet Specification

Parameter(Module)

Parameter(Cabinet)

Item

Parameter

Item

Simple Cabine

standard  Cabinet

rent aluminum  Cabinet

Pixel Pitch

10mm

Cabinet size

960mm*960mm  (Customizable)

960mm*960mm  (Customizable)

960mm*960mm  (Customizable)

Best Viewing Distance

10-25m

Cabinet Resolution

96dot*96 dot

96dot*96 dot

96dot*96 dot

Density

10000 dot/sqm

Cabinet Weight

15kg

16kg

8kg

Brightness

≥1200nite

Protection Degree

IP63

IP65

IP30

Module Resolution

32dot*16dot

Refresh Rate

1000-4000Hz

LED Standard

SMD3528 1R1G1B

MTTF

>5000 hours

Driving method

1/4 Scan

Malfunction dot rate

<0.0001

Viewing Angle(H/V)

H: 120° V: 100°

Life Span

>100000 hours

Module Size

320mm*160mm*11mm

Operating Voltage

110V-240V AC±10%50-60Hz

Module Power

35W

Working Temperature

-30°C---+50°C / 10%-90% RH

Module Weight

320g

Working  Humidity

-40°C---+60°C / 10%-90% RH

quantity module/sqm

33.6

Input Signal

RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc

Useage

indoor

Communication Link

CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional

Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.
