P5 smd 3528 indoor led display panel

FOB Price

USD $18.5 - $19.5 / Piece

100 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

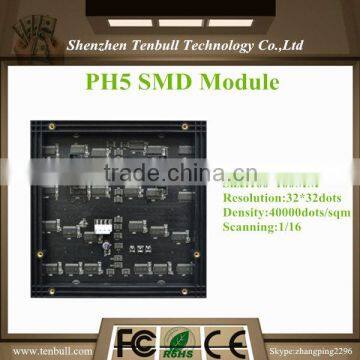

P5 smd 3528 indoor led display panel
P5 led module Size:160*160MM
Resolution:32*32dots
Density:40000dots/sqm
Scanning:1/16

P5 smd 3528 indoor led display panel

P5-SMD Indoor Module and Cabinet Specification
Parameter(Module)		Parameter(Cabinet)
Item	Parameter	Item	Simple Cabine	standard Cabinet	rent aluminum Cabinet
Pixel Pitch	5mm	Cabinet size	640mm*640mm (Customizable)	640mm*640mm (Customizable)	640mm*640mm (Customizable)
Best Viewing Distance	4-10m	Cabinet Resolution	128 dot*128 dot	128 dot*128 dot	128 dot*128 dot
Density	4000 dot/sqm	Cabinet Weight	15kg	16kg	13.6kg
Brightness	≥1500nite	Protection Degree	IP63	IP65	IP30
Module Resolution	32dot*32dot	Refresh Rate	1000-4000Hz
LED Standard	SMD3528 1R1G1B	MTTF	>5000 hours
Driving method	1/16 Scan	Malfunction dot rate	<0.0001
Viewing Angle(H/V)	H: 120° V: 100°	Life Span	>100000 hours
Module Size	160mm160mm14mm	Operating Voltage	110V-240V AC±10%50-60Hz
Module Power	40W	Working Temperature	-30°C---+50°C / 10%-90% RH
Module Weight	210g	Working Humidity	-40°C---+60°C / 10%-90% RH
quantity module/sqm	39.06	Input Signal	RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc
Useage	indoor	Communication Link	CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional
Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.

-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.

-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen

-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen

-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;

----- Resonable price, good uniformity, stable capability and high brightness;

-----Aluminum alloy material both for fixed installation and hanging rental;

-----Own Unique Design LED Screen
