5 pixels and indoor usage led display screen stage background led video wall

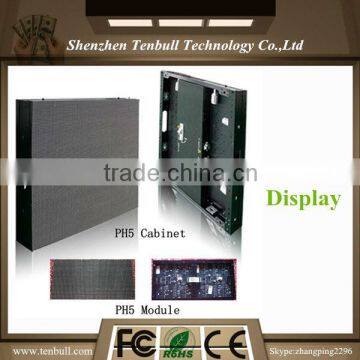

P5-SMD Indoor Module and Cabinet Specification

Parameter(Module)

Parameter(Cabinet)

Item

Parameter

Item

Simple Cabine

standard  Cabinet

rent aluminum  Cabinet

Pixel Pitch

5mm

Cabinet size

640mm*640mm (Customizable)

640mm*640mm (Customizable)

640mm*640mm (Customizable)

Best Viewing Distance

4-10m

Cabinet Resolution

128 dot*128 dot

128 dot*128 dot

128 dot*128 dot

Density

4000 dot/sqm

Cabinet Weight

15kg

16kg

13.6kg

Brightness

≥1500nite

Protection Degree

IP63

IP65

IP30

Module Resolution

32dot*32dot

Refresh Rate

1000-4000Hz

LED Standard

SMD3528 1R1G1B

MTTF

>5000 hours

Driving method

1/16 Scan

Malfunction dot rate

<0.0001

Viewing Angle(H/V)

H: 120° V: 100°

Life Span

>100000 hours

Module Size

160mm*160mm*14mm

Operating Voltage

110V-240V AC±10%50-60Hz

Module Power

40W

Working Temperature

-30°C---+50°C / 10%-90% RH

Module Weight

210g

Working  Humidity

-40°C---+60°C / 10%-90% RH

quantity module/sqm

39.06

Input Signal

RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc

Useage

indoor

Communication Link

CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional

Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.
