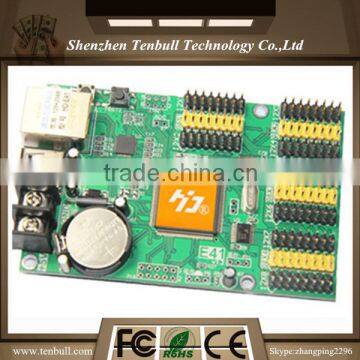

USB+Ethernet port Controller card HD-E41
- 10000 Piece / Pieces per Month
- SZ
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TENBULL | |
| Model Number | HD-E42 | Usage | Other, Controller |
Product Description
Specifications
USB+Ethernet port Controller card HD-E41Single color:768*128 1024*96 1536*64
Dual coloraa384*128 512*96 768*64
USB+Ethernet port Controller card HD-E41
Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, et.;
Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single/dual color screens are supported;
Application Software: the fourth-generation operating software
I. Setup Diagram
II. Parameters Description
Type of control card: single color/dual color/seven-color
Control range: 1024*256and 2048*128 and3072*80 for single color; 512*256, 1024*128 and1360*96for dual color; 2048*64and 3072*32for seven-color;
Scan mode: static, 1/2, 1/4, 1/8 and 1/16 common modes
Communication types: U-Disk / RS232 serial port / network port
Power supply: +4.2-5.5V
Power consumption: ≤0.5W
Work environment: -40℃--75℃
Installation dimension: 58.0(H)*90.0(W)(mm)
III. Features
| Content | Capability |
| FLSH capacity | 2M Byte(able to expand to 8M Byte) |
| Communication port | U-Disk /network port |
| Color | Dual color supports red, green and yellow. |
| Support seven-color | Full color can display red, green, blue, yellow, purple, cyan and white. |
| Program quantity | Two hundred programs are available, which can be switched by buttons or remote control. |
| Area quantity | Eight areas with separate zone, special effect and border |
| LED pixel | 256(H)×1024(W)(The resolution is 256K.) |
| Display content | Text, image, time, temperature, count, animated characters, etc. |
| Display mode | Display in order, switch by buttons or remote control |
| Display effect | 1. Text, image, time, count, temperature (Module needs to be connected.), etc.; 2. Support the settings of program/area/custom borders; 3. Various action modes; 4. Over 40 special character effects; 5. Support simple animated characters; 6. Support hollow/stroked characters; 7. Support the background settings of area characters; |
| Function of clock | 1. Support calendar/analog clock; 2. Count up/count down display; 3. The font, size, color and position can be set freely; 4. Support multiple time zones; |
| Expander | Temperature/humidity/remote control/light sensors and wireless RF module |
| Automatic switch | Support time switch |
| Brightness setting | Support three brightness modes |
IV. Port Definition
The control board has 1 groups of common 50pin ports, which are defined as below:
| Signal | Pin | Description |
| A | 42 | the lowest bit in row address |
| B | 41 | the lower bit in row address |
| C | 40 | the higher bit in row address |
| D | 39 | the highest bit in row address |
| RCLK | 43 | row latch clock |
| CLK | 44 | shift clock |
| OE | 45 | display permission |
| RD | 8,10,12,14,16,18,20,22,24 26,28,30,32,34,36,38 | red data |
| GD | 7,9,11,13,15,17,19,21,23 25,27,29,31,33,35,37 | green data |
| VCC | 2,4,47,49 | output +5V power |
| GND | 1,3,5,46,48,50 | ground |
| NC | 6 | not connected |
