P10 RGB Module

FOB Price

US$ 11.4 - 11.5 / Piece

100 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

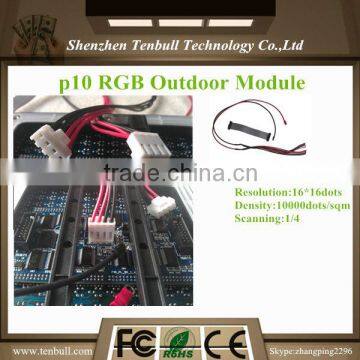

P10 RGB Module, p10 led display module
P10 led module Size:160*160MM
Resolution:16*16dots
Density:10000dots m
Scanning:1/4

P10 RGB Module Parameter

Item	Parameter
Pixel Pitch	10mm
Best Viewing Distance	15-30m
Density	10000 dots/sqm
Brightness	≥7500nite
Module Resolution	16dost*16dots
LED Standard	DIP346 1R1G1B
Driving method	Constant driving 1/4 Scan
Viewing Angle(H/V)	H: 140° V: 120°
Module Size	160mm*160mm
Module Power	40W
Module Weight	350g
Cabinet Size	960mm*960mm
Cabinet Resolution	96 dot*96 dot
Cabinet Weight	18.6kg
Protection Degree(front/rear)	IP65/IP43
Refresh Rate	1000-4000Hz
MTTF	>5000 hours
Malfunction dot rate	<0.0001
Life Span	>100000 hours
Operating Voltage	110V-240V AC±10%50-60Hz
System Working Environment Temperature	-30°C---+50°C / 10%-90% RH
System Working Environment Humidity	-40°C---+60°C / 10%-90% RH
Input Signal	RF, S-VIDEO, RGBHV, YUN, YC & COMPOSITION, etc
Communication Link	CAT5 Cable(Length≤1430m);Optical (Length≤20Km)Optional
Remarks:The above-mentioned data only for reference,they can be adjusted according to customers needs.

-----SMD: p3/p4/p5/p6/p7.62/p10 indoor full color led module and led display.

-----Single Color:P10 red outdoor/P10 White outdoor/P10 Blue outdoor/P10 Green outdoor/P10 Yellow outdoor&SIMI-outdoor led module and led screen

-----Double Color:P10 double color/p16 double color/p20 double color SIMI-outdoor&outdoor led module and led screen

-----all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;

----- Resonable price, good uniformity, stable capability and high brightness;

-----Aluminum alloy material both for fixed installation and hanging rental;

-----Own Unique Design LED Screen
