BTJ4-40B Semi Automatic Small Concrete Block Making Machine, Brick Making Machine
USD $5,000 - $30,000
/ Set
1 Set(Min.Order)
- Any Port in China
- T/T D/P D/A
You May Like
-
Top Quality! 25m, 29m, 33m Small Concrete Pump Truck, Truck Concrete Pump, Concrete Boom Pump for sale in South America
-
HOT SALE - 21m, 22m, 24m, 25m, 28m, 29m, 33m Small Concrete Pump Truck, Truck Concrete Pump for sale in Algeria
-
ISUZU Truck, 25m, 29m, 33m Small Concrete Pump Truck, Truck Boom Pump for sale with Top Quality in China
-
Hot! 21m/22m/24m/25m/28m/29m/33m Small Concrete Pump Truck, Truck Concrete Pump for sale with Top Quality in China
-
Hot! 21m/22m/24m/25m/28m/29m/33m Small Concrete Pump Truck, Concrete Boom Pump Truck for sale with Top Quality in China
-
Hot! 25m 29m 33m Small Concrete Pump Truck, Truck Concrete Boom Pump for Sale with Top Quality in China
Product Details
| Condition | New | Type | Other, concrete blocks, solid/hollow/cellular masonry products, paving stones | |
| Brick Raw Material | Other, Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gang | Processing | Brick Production Line | |
| Method | Other, Motor driven | Automatic | Other, Semi automatic without PLC | |
| Capacity | 3-4 pcs/mould | Place of Origin | Shandong, China | |
| Brand Name | SMG SINOMAX | Model Number | BTJ4-40B | |
| Voltage | 380V/220V, 380V/220V | Power | 9.5kw, 9.5kw | |
| Dimension(L*W*H) | 1350*1460*1800mm | Certification | CE SONCAP ISO | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

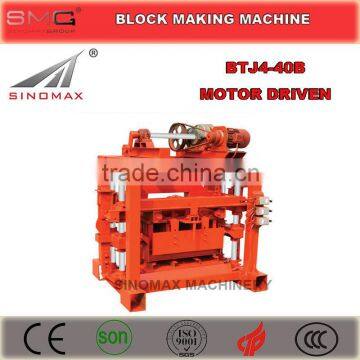

BTJ4-40B Semi Automatic Small Concrete Block Making Machine, Brick Making Machine
1. Brief Introduction
Based on the former block machine, BTJ4-40B block machine is the reformed machine with reasonable design,favorable property,and super-strong vibration motor.And it manufactures bricks with good quality,large density,and high strength.This machine adopts upper mould push and pull and automatic scraper,which is simple to operate as well as the large-scale equipment.
2. Parameter
Overall Dimension | 1350*1460*1800mm |
Vibration frequencies | 2800r/min |
Cycle Time | 40 seconds |
Overall weight | 1200kg |
Pallet Size | 850*450*25mm |
Weight | 1200kg |
Power | 9.5kw |
3. Productivity
Item | Size (mm) | Cycle time | Qty./Mould | Per hour |
Hollow brick | 390*240*190 | 40s | 3pcs | 270pcs |
Hollow brick | 390*190*190 | 40s | 4pcs | 360pcs |
Standard brick | 240*115*53 | 40s | 2pcs | 180pcs |
4. Samples of SMG SINOMAX Machinery Concrete Block Making Machine/Production Line
