Unalloy-steel Drywall C and U Channel
US$ 500 - 1,000
/ Ton
25 Tons(Min. Order)
- Tianjing port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | JLSRA | |
| Model Number | GZJL-P045 | Material | Other, Galvanized Sheet, Galvanized Sheet,galvanized sheet |
Product Description

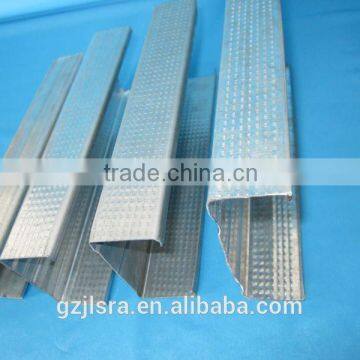

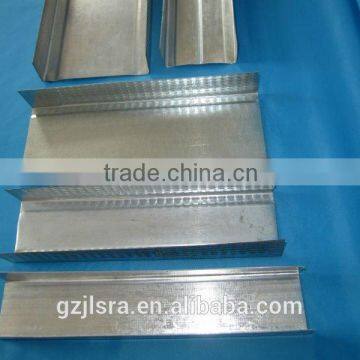

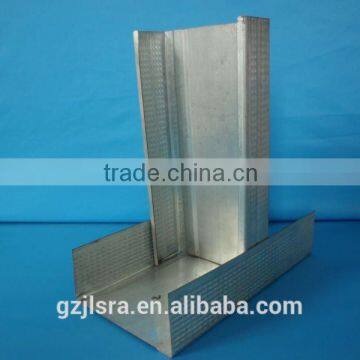

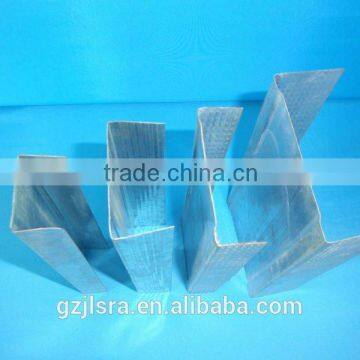

unalloy-steel drywall C and U channel
Installation
Drywall structure
Specification description
| Item | Description | Width(mm) | Hight1 (mm) | Hight2 (mm) | Thickness (mm) | Length |
| wall stud | 41,44,48,50,51,60, 64,70,75, 76,92,100. hight from 25mm to 50mm. | 22 | 22 | 0.3~ 0.6mm | 3000mm, 3660mm |
| 23 | 23 | 0.3~ 0.6mm | ||||
| 24 | 24 | 0.3~ 0.6mm | ||||
| 30 | 30 | 0.4~0.6mm | ||||
| 32 | 32 | 0.4~ 0.6mm | ||||
| 33.5 | 35.5 | 0.3~ 1.2mm | ||||
| 35 | 35 | 0.45~0.8mm | ||||
| 40 | 40 | 0.45~0.7mm | ||||
| 50 | 50 | 0.5~ 0.8mm | ||||
| track | 41,50,52,64,66,70, 75,76,92,93,100. hight from 25mm to 50mm. | 25 | 25 | 0.35~0.6mm | |
| 28 | 28 | 0.3~ 1.2mm | ||||
| 32 | 32 | 0.3~ 1.2mm | ||||
| 40 | 40 | 0.5~ 0.8mm |
Relevant specification for each market
1)Specification of South America market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 41*32 | 0.4--1 | 3050 |
| 64*32 | |||
| 76*32 | |||
| 92*32 | |||
| 92*41 | |||
| 100*35 | |||
| Track | 41*25--40 | 0.4--1 | 3050 |
| 64*25--40 | |||
| 76*25--40 | |||
| 92*25--40 | |||
| 100*25--40 | |||
| Corner bead | 32*32 | 0.3--0.5 | 3050 |
| Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*12 | 0.4--0.8 | 3660 or any other length |
| 37*20 | |||
| Furring channel | 58*34*16 | ||
| 64*32*22 | |||
| 47*17 | |||
| 52*25*15 | |||
2)Specification of Malaysia market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| U channel | 41*23 | 0.3-0.5 | 2440, 2740, 3050 |
| 44*22 | |||
| 48*22 | |||
| 50*23 | |||
| 75*24 | |||
| Roof and Ceiling | |||
| Component name | Specificaion (mm) | Thickness (mm) | Length (mm) |
| C section | 75*34*36 | 0.7--1 | 3660--5800 |
| 100*50 | |||
| B batten | 58*35*23 | 0.5--0.8 | 3660-5800 |
| 65*32*26 | |||
| 84*30*32 | |||
| Furring Channel | 30*9 | 0.25-0.3 | 3660 |
| 34*11 | |||
3)Specification of Middle East market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*35/40 | 0.5--1 | 3000 |
| 70*32/35 | |||
| 75*35/40 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.5--1 | 3000 |
| 70*25--50 | |||
| 100*25---50 | |||
| Ceiling | |||
| Component name | Spceification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 38*10--12 | 0.38--0.5 | 3000 |
| Furring channel | 64*32*22 | ||
| 70*35*22 | |||
| 80*48*22 | 0.7 | 4000 | |
4)Specification of Eastern Europe market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*50 | 0.3--0.7 | 3000 |
| 75*50 | |||
| 100*50 | |||
| Track | 50*25--50 | ||
| 75*25--50 | |||
| 100*25--50 | |||
| Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Furring channel | 60*27 | 0.5--0.7 | 3000 |
| Wall angle / Track | 28*27 | 0.5--0.7 | 3000 |
5)Specification of Myanmar market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.6 | 2900 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 | |||
| Roof and Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C sectionC section | 75x34x36 | 0.7--1.5 | 5800 |
| 100x50x50 | |||
| B Batten | 64x24x24 | 0.4--0.6 | 5800 |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3--0.5 | 3960 |
| Main channel | 18x28 | 0.5--0.8 | 3050 |
| Furring channel | 50x17 | 0.4-0.5 | |
6)Specification of Thailand market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 75x35 | 0.4--0.55 | 2400, 3000 |
| 65x32 | |||
| Track | 76x25 | ||
| 66x25 | |||
| Roof and Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 75x34x36 | 0.7-1.5 | 6000 |
| 100x50x50 | |||
| B batten | 65x25x26.5 | 0.4-0.6 | |
| 65x32x26 | |||
| Furring channel / C-line | 35x12 | 0.3-0.5 | 4000 |
7)Specification of Philippines market
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 50*32 | 0.4--0.8 | 3000 |
| 64*32 | |||
| 75*35 | |||
| 92*35 | |||
| 100*35 | |||
| Track | 50*25--50 | 0.4--0.8 | 3000 |
| 64*25--50 | |||
| 75*25--50 | |||
| 92*25--50 | |||
| 100*25--50 | |||
| Roof and Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| C section | 100*50 | 0.7--1.5 | 3000 |
| 150*50 | |||
| Main channel | 38*12 | 0.5--0.8 | 3000 |
| Furring channel | 50*19 | 0.4--0.5 | 3000 |
8)Specification of Australia market
| All Australia products wil be made by G550 galvanized sheet with zinc coating 275g/m2 | |||
| Partition | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Stud | 51x33.5x35.5 | 0.5--0.75 | 2700,3000 |
| 64x33.5x35.5 | 3600,4200 | ||
| 76x33.5x35.5 | 4800,6000 | ||
| 92x33.5x35.5 | |||
| Track | 52x32/28 | 0.5--0.75 | 3000 |
| 65x32/28 | |||
| 77x32/28 | |||
| 93x32/28 | |||
| MPW 10 H Stud | 12.5X40 | 0.3-0.5 | 3000-6000 |
| MPW 10 H Stud | 25X35 | ||
| MPW 10 U Kap | 15X25 | ||
| MPW 10 π Track | 55X25 | ||
| V-angle bead | 30X30 | ||
| L -angle bead | 30X6 | ||
| L-angle bead | 30X10 | ||
| L -angle bead | 30X13 | ||
| L -angle bead | 30X16 | ||
| J -angle bead | 30X10X13 | ||
| Z -angle bead | 30X10X10 | ||
| Z -angle bead | 30X10X6 | ||
| Roof and Ceiling | |||
| Component name | Specification (mm) | Thickness (mm) | Length (mm) |
| Main channel | 25x21 | 0.75 | 3600,4800,6000 |
| Furring channel | 51x38x28 | 0.5 | 2700,3000,3600,4800,6000 |
| 51x38x16 | |||
| C channel | 36x16 | 0.45 | 3000,3600 |
| Wall angle | 35x16x13 | 0.5 | 3000 |
| 35x28x20 | |||
| B batten | 94x42x40 | 0.55/0.75 | 4800,6000 |
Steel coils
Machine
Production lines
Loading
Factory
Sales office
Customer pictures
Certificates
Our Advantages:
(1). Design according to customers’ requirements
(2). Manufacture under complete quality control system---ISO9001
(3). Installation with instruction of experienced engineers
(4). Easy to assemble and dismantle
(5). Eco-friendly material: can be used for several times and can be recycled
(6). Shorter construction period, longer using time
(7). High strength and stiffness, high weight bearing.
