Hot Sales Drywall Perfilers Paral y Canal

FOB Price

US$ 0.2 - 1 / Ton

25 Tons(Min. Order)

Port Tianjin
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	jianli
Model Number	JL-0010, JL-0010		Material	Other, Galvanized Sheet, galvanized steel

Product Description

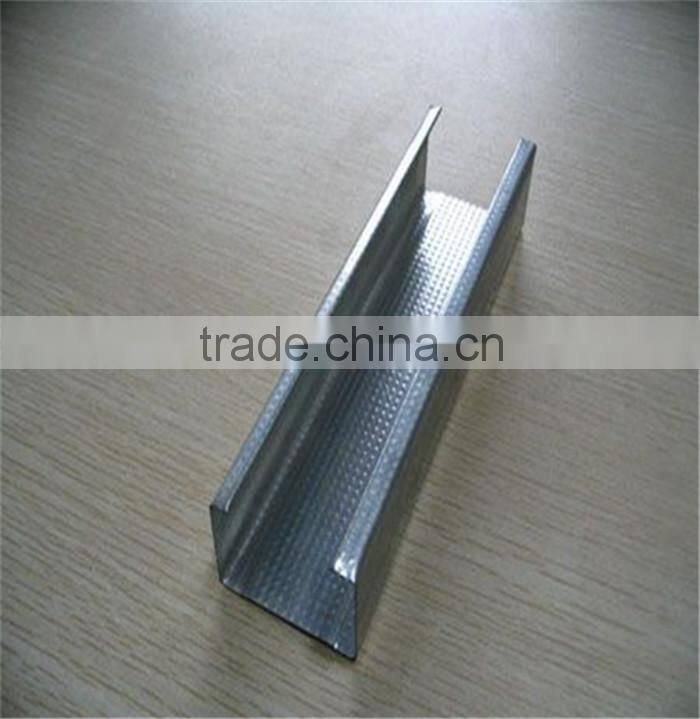

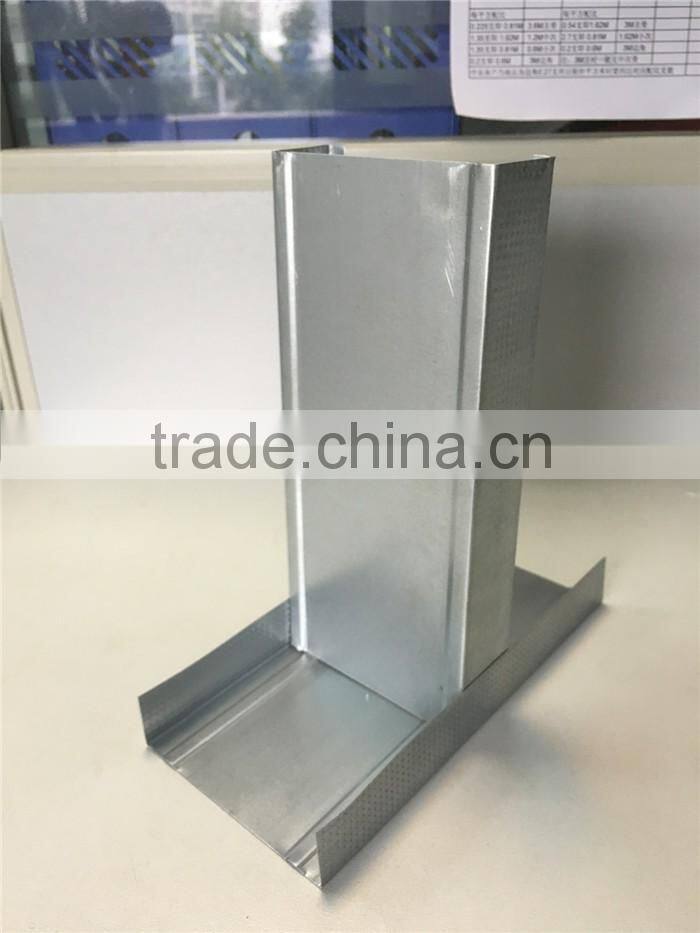

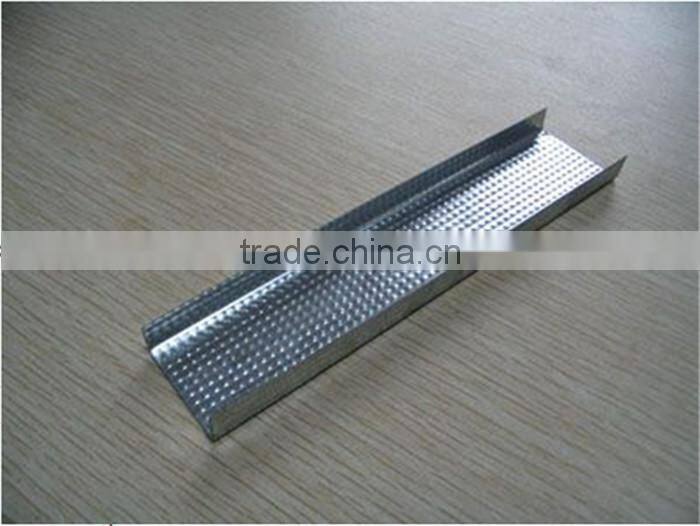

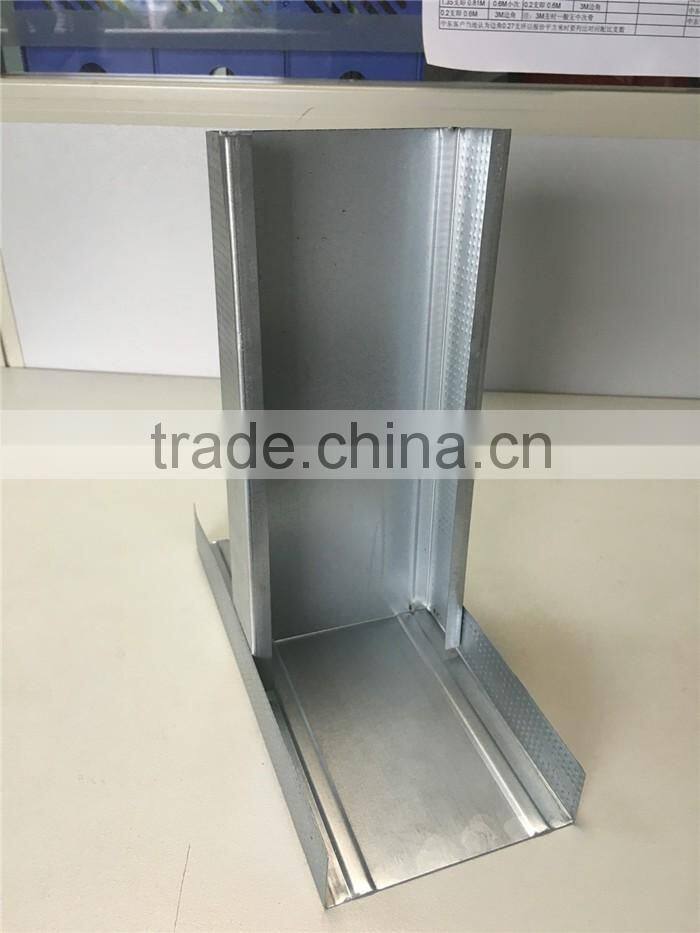

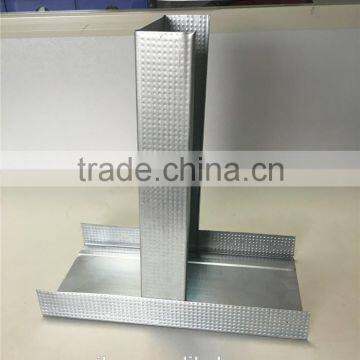

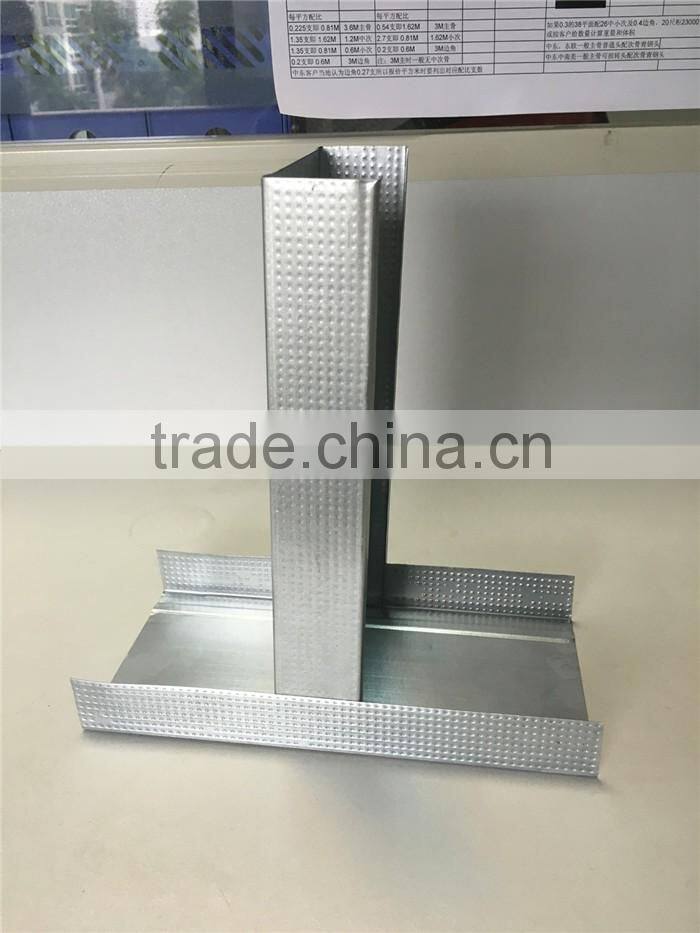

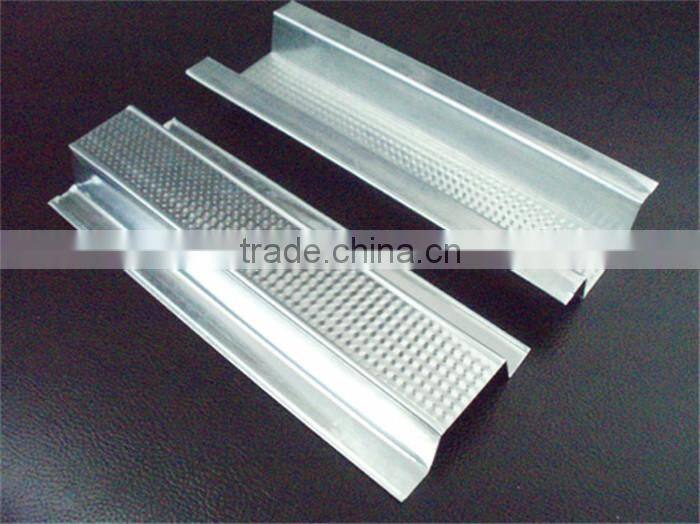

Hot sales drywall Perfiles montante & solera omega angular perfil paral y canal

Specification

1. Specification of South America market
Partition
Commodity	Specification (mm)	Thickness(mm)	Length(mm)
Stud	41*32	0.4--1	8FT--10FT 2440--3050
	64*32
	76*32
	92*32
	92*41
	100*35
Track	41*25--40	0.4--1	8FT--10FT 2440--3050
	64*25--40
	76*25--40
	92*25--40
	100*25--40

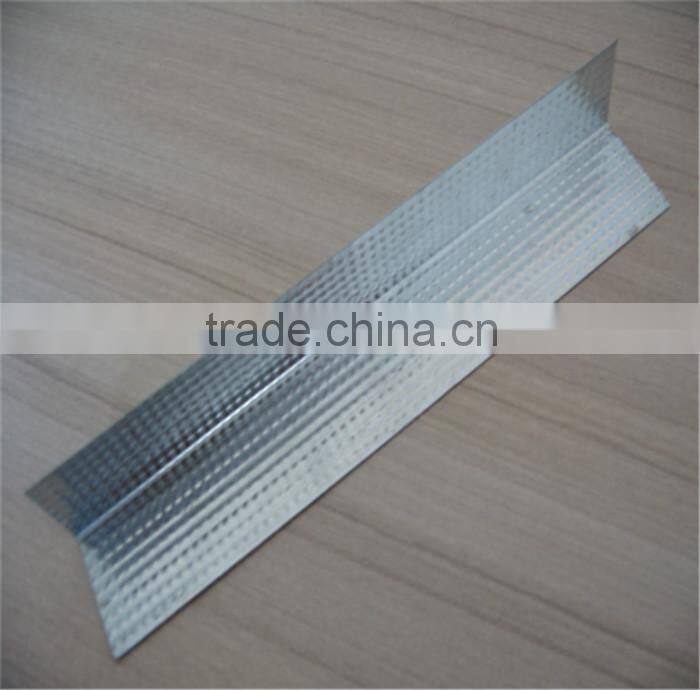

Corner bead	32*32	0.3--0.7	8FT--16FT 2440--4800
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length
Main channel	38*12	0.4--0.8	8FT--16FT 2440m--4800m
Main channel	37*20
Furring channel	583416
	643222
	47*17
	522515


2. Specification of Malaysia market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
U channel	41*23	0.3-0.5	2440, 2740, 3050
	44*22
	48*22
	50*23
	75*24

Roof and Ceiling
Commodity	Specificaion (mm)	Thickness (mm)	Length (mm)
C section	753436	0.7--1	3660---5800
C section	100*50	0.7--1	3660---5800
Batten	583523	0.5--0.8	3660--5800
	653226
	843032
Furring Channel	30*9	0.25--0.4	3050--4880
Furring Channel	34*11	0.25--0.4	3050--4880


3)Specification of Middle East market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*35/40	0.4--1	3000
	70*32/35
	75*35/40
	100*35
Track	50*25--50	0.4--1	3000
	70*25--50
	100*25---50
Ceiling
Commodity	Spceification (mm)	Thickness (mm)	Length (mm)
Main channel	38*10--12	0.38--0.5	3000
Furring channel	643222
	703522
	804822	0.7	4000


4. Specification of Eastern Europe market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*50	0.4--0.7	3000
	75*50
	100*50
Track	50*25--50
	75*25--50
	100*25--50
Ceiling
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Furring channel	60*27	0.5--0.7	3000
Wall angle / Track	28*27	0.5--0.7	3000


5. Specification of Myanmar market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.6	3000
Stud	65x32
Track	76x25
Track	66x25
Roof and Ceiling
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
C sectionC section	75x34x36	0.7--1.5	5800
C sectionC section	100x50x50	0.7--1.5	5800
BattenBatten	64x24x24	0.4--0.6	5800
BattenBatten	65x32x26	0.4--0.6	5800
Furring channel / C-line	35x12	0.3--0.5	3960
Main channel	18x28	0.5--0.8	3050
Furring channel	50x17	0.4-0.5	3050


6. Specification of Thailand market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Stud	75x35	0.4--0.55	2400, 3000
Stud	65x32
Track	76x25
Track	66x25
Roof and Ceiling
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
C section	75x34x36	0.7-1.5	6000
C section	100x50x50	0.7-1.5
Batten	65x25x26.5	0.4-0.6
Batten	65x32x26	0.4-0.6
Furring channel / C-line	35x12	0.3-0.5	4000


7.Specification of Philippines market
Partition
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Stud	50*32	0.4--0.8	3000
	64*32
	75*35
	92*35
	100*35
Track	50*25--50	0.4--0.8	3000
	64*25--50
	75*25--50
	92*25--50
	100*25--50
Roof and Ceiling
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
C section	100*50	0.7--1.5	3000
C section	150*50	0.7--1.5	3000
Main channel	38*12	0.5--0.8	3000
Furring channel	50*19	0.4--0.5	3000


8. Specification of Ausralia market & New Zealand
All Australia products make with high quality galvanized metal with zinc coating 275g/m²
Partition
Component name	Specification (mm)	Thickness (mm)	Length (mm)
Stud	51x33.5x35.5	0.5--0.75	2400-3600
	64x33.5x35.5
	76x33.5x35.5
	92x33.5x35.5
Track	52x32/28	0.5--0.75	3000
	65x32/28
	77x32/28
	93x32/28
MPW 10 H Stud	12.5X40	0.3-0.5	3000-6000
MPW 10 H Stud	25X35
MPW 10 U Kap	15X25
MPW 10 π Track	55X25
V-Corner bead	30X30
L -Corner bead	30X6
L-Corner bead	30X10
L -Corner bead	30X13
L -Corner bead	30X16
J -Corner bead	30X10X13
Z -Corner bead	30X10X10
Z -Corner bead	30X10X6
Roof and Ceiling
Commodity	Specification (mm)	Thickness (mm)	Length (mm)
Top cross rail	25x21	0.55/0.75	3600,4800,6000
Furring channel	51x38x28	0.5	2700,3000,4800,6000
Furring channel	51x38x16	0.5	2700,3000,4800,6000
C channel	36x16	0.45	3000,3600
Wall angle	35x16x13	0.5	3000
Wall angle	35x28x20	0.5	3000
Batten	94x42x40	0.55/0.75	4800,6000

Purchasing guides

SRA is proud to have one of the industry’s most technically knowledgeable, experienced, and professional sales team in the industry. You’ll find that their dedication, attention to detail, and problem solving skill will make finding the best solutions for your unique project an easy process.
Since building conditions and requirements vary from region to region, we’ve assigned team members to specific regions based their unique experience and training. Please tell us your country or region to learn more about the dedicated SRA Salesperson in your region and how they can ensure success on your next light steel building project.

About us

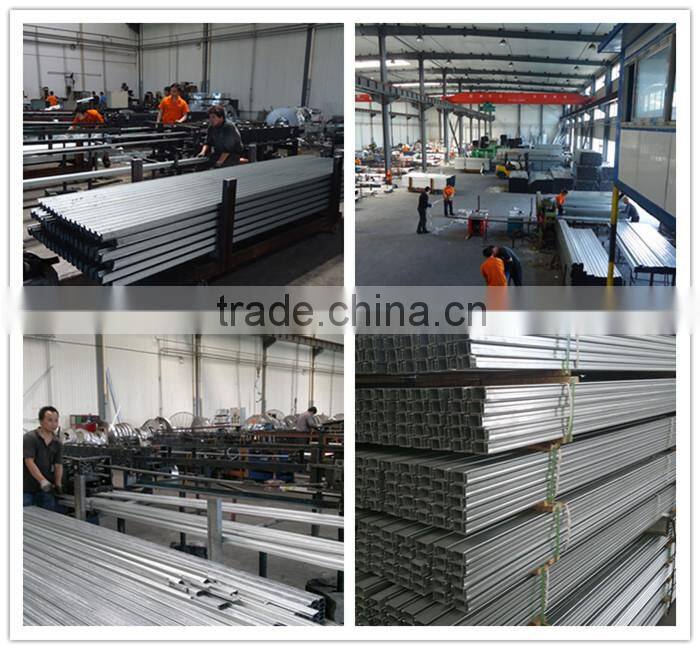

SRA LIGHT STEEL FRAME FACTORY
