Hebei Jiuwang China Manufacturer of Steel Grating

FOB Price

USD $10 - $30 / Square Meter

10 Square Meters(Min.Order)

Port tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	JIUWANG
Model Number	19-W-4; 15-W-2,12.5/25/30/32.5/35/40/50mm.etc		Material	Other, Steel, carbon steel, stainless steel

Product Description

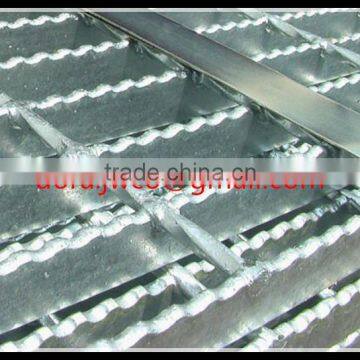

1.what is steel grating ?( China Manufacturer of Steel Grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

2.steel grating specification- China Manufacturer of Steel Grating

panel size available(black grating): 1000x5800mm or 1000x6000mm

Bearing bar pitch	Cross bar pitch	load steel size ( Width ×Thickness)
Bearing bar pitch	Cross bar pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50	-	G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Bearing bar pitch	Cross bar pitch	load steel size (Width ×Thickness)
Bearing bar pitch	Cross bar pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

3. Anping metal walking grates introduction-- China Manufacturer of Steel Grating

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted
application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence

bearing bar types:

surface treatment: mill finish,hot dip galvanized,painted

4.steel grating standard-- Best price hot dip galvanized steel grating

Steel Grating Standard
	Steel Grating Standard	Steel Standard	Galvanizing Standard
China Standard	YB/T 4001.1-2007	GB700-88	GB/T13912-2002
USA Standard	ANSI/NAAMM (MBG531)	ASTM (A36)	ASTM (A123)
U.K. Standard	BS4592	BS4360 (43A)	BS729
Australia Standard	AS1657	AS3679	AS1650
Deutsche Standard	DIN24537	DIN17100-80	DIN50976

5 Best price hot dip galvanized steel grating manufacturer process

6 Best price hot dip galvanized steel grating --steel grating application

power station platform grating

port platform floor grating

spray booth floor grating

car parking STEEL GRATING FOR CAR PARK LINEAR DRAINAGE channel grating

steel stair treads grating

trench cover grating

car washing station/ car parking lot

6.our company profile

Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.

7.our company hot dip galvanization department

7.CHOOSE US BECAUSE WE HAVE

1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanized steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements.
