DIXIN Cheap 850 Corrugated Board Production Line
- tianjin port for 850-65-13 corrugated board production line
You May Like
-
DX Automatic Hydraulic Aluminium Profile Production Line
-
DX Durable Used Roofing Equipment for Sale in China
-
Automatic Corrugated Metal Roofing Machine
-
DIXIN 850-65-13 Corrugated Siding Panel Roll Forming Machine
-
DX 1050 Cement Tile Making Machine
-
DX 1050 Automatic Steel Sheet Stamping Machines for Wall Roof or Tile
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 10-12 m/min | Place of Origin | Hebei, China | |
| Brand Name | DIXIN | Model Number | DX 850-65-13 | |
| Power(W) | 3 KW | Voltage | 380 V 3 Phase 60Hz or as your requirement | |
| Dimension(L*W*H) | 6.5*1.3*1.0m | Weight | 3.20 tons | |
| Certification | ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
cheap DX automatic corrugated board production line1.automatic hydraulic
2.PLC control system
3.10-12 m/min speed
durable.
850-65-13 corrugated board production line
corrugated board production line is used to produce roof wall panel
as above picture shows.
Detailed information of corrugated board production line
SHEET | Raw material | colored steel sheet,galvanized steel sheet,aluminium sheet |
| Thickness of sheet | 0.3-0.8mm | |
| Feeding width | 100 mm | |
| Cover width | 850 mm | |
| Wave height | 13 mm | |
| Wave length | 65mm | |
| Usage | roof or wall panel | |
| ROLLER MACHINE | Steps of forming | 9 rows |
| Roller material | high grade NO.45 forged steel with 0.05mm hard chrome plating on the surface of plate. | |
| Shaft material | high grade NO. 45 carbon wrought steel | |
| Cutting blade | Cr 12 mould steel with quenched treatment | |
| Diameter of shaft | 70 mm | |
| Thickness of medium plate | 14mm | |
| Main frame | 300 H/U steel | |
| Productivity | 10-12m/min | |
| Main motor power | 3 KW | |
| Hydraulic station power | 3 KW | |
| Hydraulic pressure | 10-12 MPa | |
| Control system | PLC computer control | |
| Size | 6.5*1.3*1.0m | |
| Weight | 3.20 tons | |
| Voltage | 380 V 3 Phase 60 Hz or as your requirement | |
| Color | Blue or green | |
| UNCOILER | Manual style | 5 tons |
1. Production line
2. Consist of
850-65-13 corrugated board production line
| 1 | Manual decoiler | used to load coil |
| 2 | Guided feeding | level the panel |
| 3 | Rollers | used to shape the roof panel |
| 4 | Hydraulic cutting parts | cuting roof or wall panels drived by hydraulic oil pump |
| 5 | PLC control system | used to set length of panel,and control speed of producing easily |
| 6 | Receiving table | collect roof panel |
3. Uncoiler
| 1 | Usage | load sheet panel(galvanized sheet,zinc sheet,aluminium sheet,colored steel sheet |
| 2 | Style | manual style |
| 3 | Max support weight | 5 tons |
| 4 | Max width | 1250 mm |
| 5 | Other style | automatic decoiler and its support weight is 10 tons |
| 6 | Charge | manual one for free;automatic one is purchase alone |

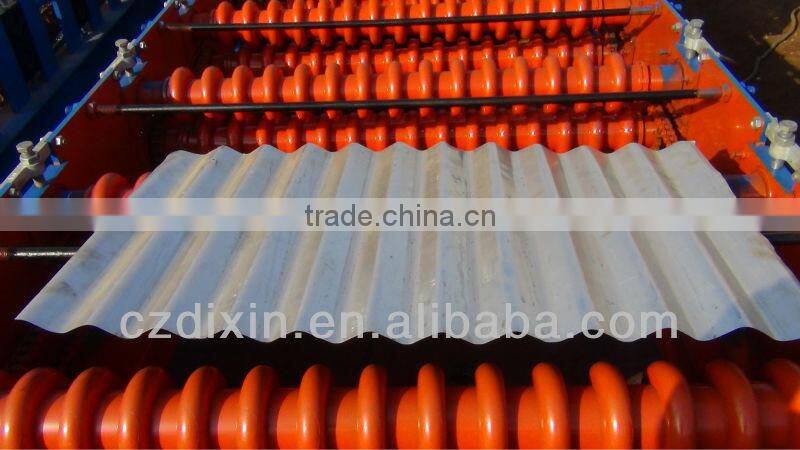

4. Rollers of corrugated board production line
shaping color steel sheet into corrugated roof or wall panels.
Detailed information of rollers.
| 1 | Usage | press and shape panel's shape |
| 2 | Forming steps | 9 rows |
| 3 | Roller station | up layer 9 rows and down layer 9 rows in vertical line |
| 4 | Material | high grade NO.45 forged steel with 0.05mm hard chrome plating on the surface of plate |
| 5 | Diameter of shaft | 70mm |
5. Cutting parts drived by hydraulic power.
Cutting blade:Cr12 mould steel with quenched treatment
6. Over view picture of main parts of corrugated board production line
7. Packing and loading
1) Packing.
| 1 | Most of the machine is nude |
| 2 | Rolers and shafts will be packed with waterproof package. |
| 3 | Machine will be painted oil against rusting during shipping |
| 4 | The whole machine will be loaded in a 20-foot container,and it will be fixed together with container by wire rope. |
2) Load
8. After-sale service.
1. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,
and also train your workers/technician face to face.
2. Without visiting,we will send video to teach you how to install and operate.
3. If buyer needs our technician to go to your local factory,please arrange board and lodging and
other necessary things.
4. One year quality gutantee for free and lifelong technical support will be offered.
9. Another similar choice.
1) Similar 988-76-18 corrugated board production line (13 rows)
2) Double layer machine available.For example the next picture.
The picture is for reference,several kinds of double layer roll forming machines can be produced.
10. Other DX machines.
Many kinds of roll forming machines available.
Many kinds of machines can be designed and produced well.
How to order corrugated board production line
Consult--design-- order confirmation--design&produce--QC-inspect machine-pay for balance
--deliver--after-sale service--evaluate and reorder.
