cangzhou Hebei Aluminium Trapezoidal Profile Metal Wall Plate Cold Roll Forming Machine roll former steel roll former
- 30 Set / Sets per Month
- Tianjin
- T/T
You May Like
-
DX automatic color steel roof tiles making machines
-
DX 900/1080 sheet metal fabrication machine
-
DIXIN C21 hot stamping machine/suppliers of machinery in china
-
C10 sheet metal fabrication machine/suppliers of machinery in china
-
DX Trapezoid Sheet Roof Tiles Hot Stamping Machine
-
DX 900 portable roll forming machines
Product Details
| Condition | New | Type | Other, roll forming machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 6-12m/min | Place of Origin | Hebei, China | |
| Brand Name | DIXIN | Model Number | as your request | |
| Power(W) | 4kw | Voltage | 380v | |
| Dimension(L*W*H) | 6000*1300*1300mm | Weight | about 2.6 tons | |
| Certification | CE TUV SGS | Warranty | 12 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

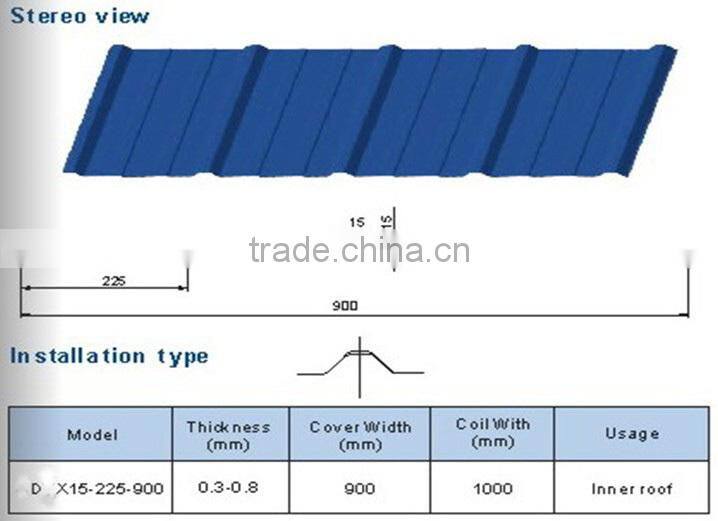

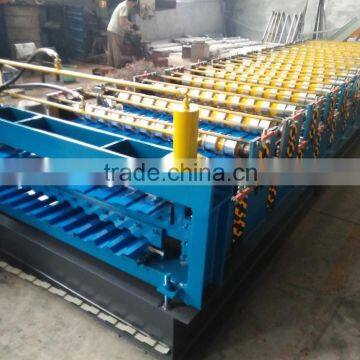

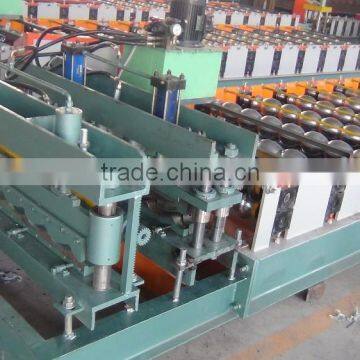

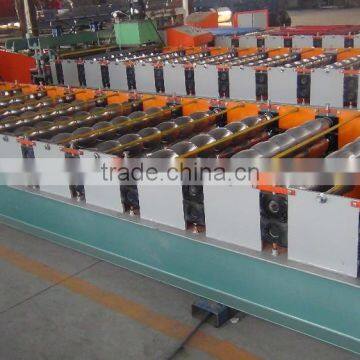

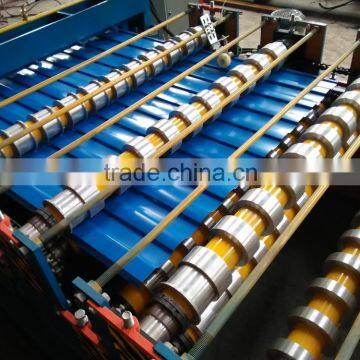

DX900-225-15 Metal Trapezoidal Wall Panel Cold Roll Forming Machine roll former
1. Configurations: manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system
2. Processing material: aluminium sheet/galvanized steel sheet/color steel sheet
3. Material thickness: 0.3-0.8mm
4. Effective width: 900mm
5. Feeding width: 1000mm
6. Main motor power: 4kw
7. Pump power: 3kw
8. Shaft diameter: 75mm
9. Forming steps: 13 steps
10. Main frame: 300H steel
11. Medium plate thickness: 14mm
12. Control systerm: PLC computer control with inverter
13. Power supply: 380V, 3 Phase, 60Hz
14. 0veral sized: 6000mm*1300mm*1300mm
15. Total weight: about 2.6 ton
16. Roller material: high grade NO.45 forged steel, with hard chrome plating
17. Shaft material: high grade NO.45 carbon wrought steel
18. Cutter material: Cr12 mould steel with quenched treatment
