Roofing ms Sheet Manufacturing Machine
- xingang tianjin
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | Dixin | Model Number | 760 | |
| Power(W) | 5.5+4kw | Voltage | 380v 50hz 3ph or according to customer's request | |
| Dimension(L*W*H) | 15m*1.5m*1.2m | Weight | About 4 ton | |
| Certification | ISO CE BV | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

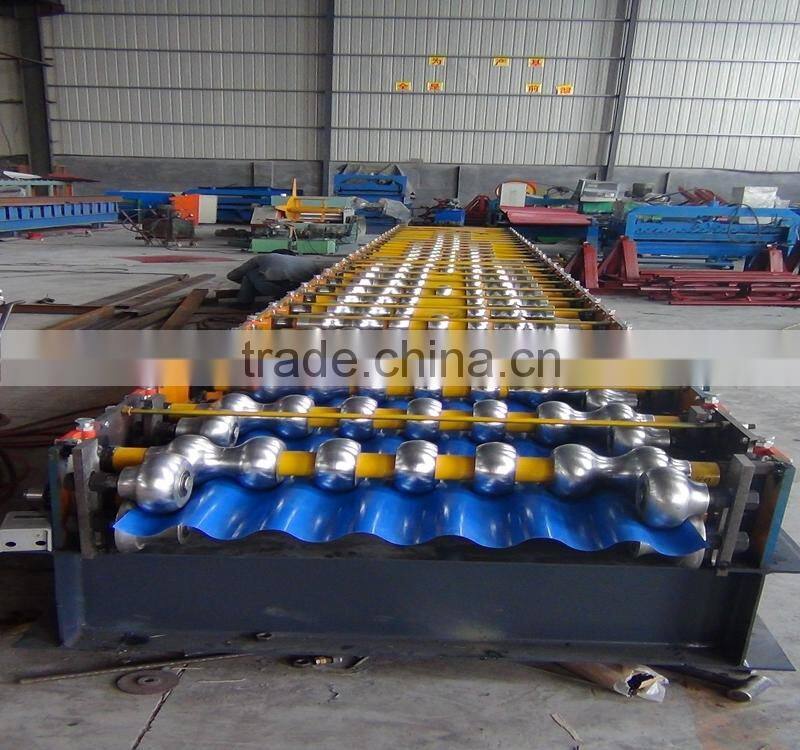

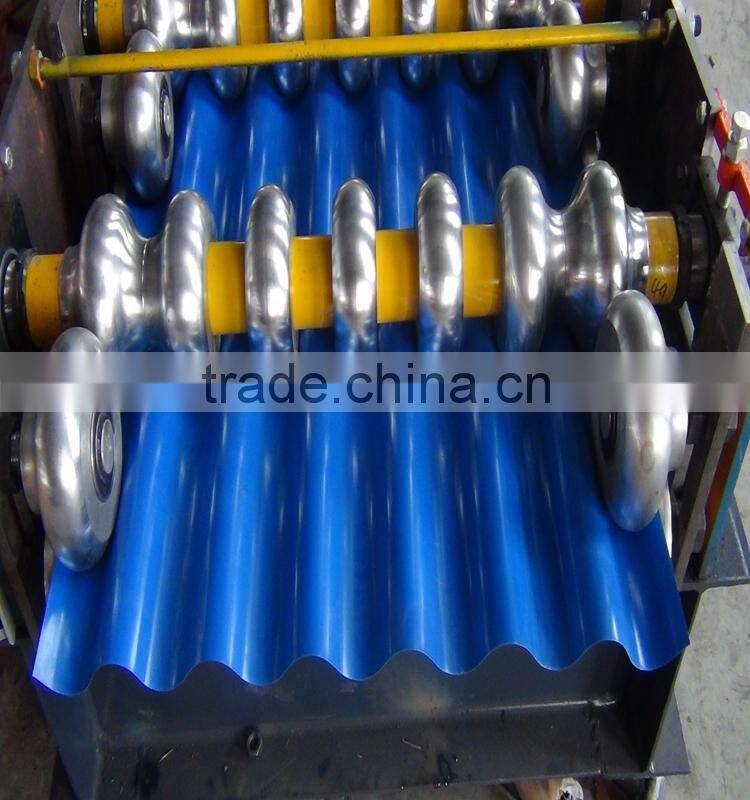

roofing ms sheet manufacturing machine





| 1 | Name | aluminum corrugated roofing sheet machine |
| 2 | Main motor power | 5.5kw |
| 3 | Hydraulic motor power | 4kw |
| 4 | Hydraulic Pressure | 10-12MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 400mm H-Beam |
| 8 | Backboard Thickness | 16mm |
| 9 | Chain Size | 1.2inch |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.3-0.8mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 750mm |
| 14 | Productivity | 8-12m/min |
| 15 | Roll Station | 26 rollers |
| 16 | Roller Diameter | 75mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 15000×1400×1500mm |
| 21 | Total Weight | 6.0T |
| 22 | Components | Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
| 23 | Workflow | Manual decoiling----feeding and guiding----roll forming----cut to length----run out table |
| 24 | Package | Main machine is nude in the container |
| 25 | Minimum order quantity | 1 set |
| 26 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) |
| 27 | Delivery time | 30 working days later after receiving the deposit |

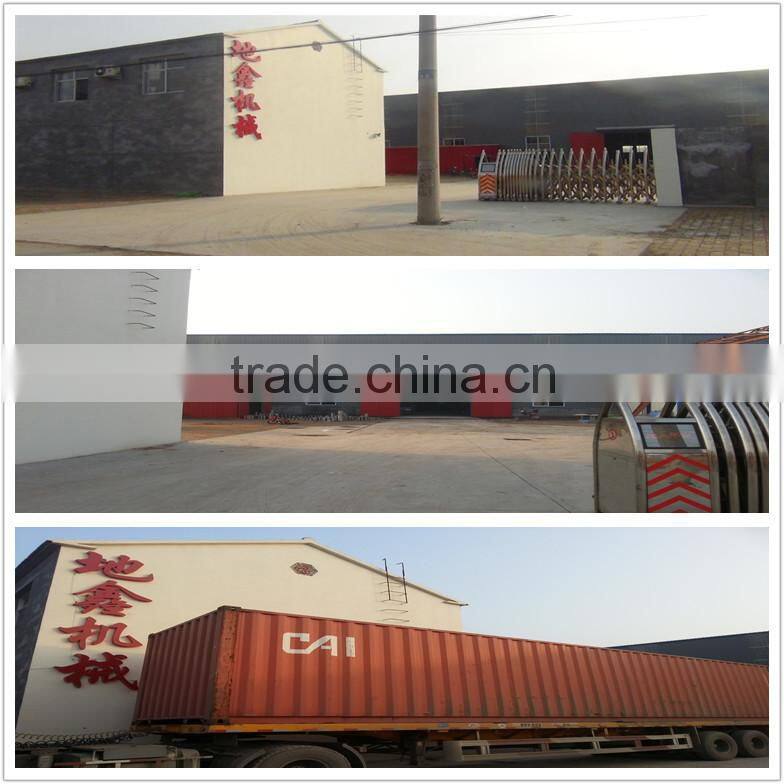

Company Introduce:
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers’ trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China


Why Choose us/Simple advantage in words
| 1 | Direct Factory in China Since 2008 |
| 2 | Good design and professional engineers more than 20 years experience |
| 3 | CE SGS BV AS--- authentication available |
| 4 | Overseas service available/one year quality guarantee |
| 5 | Good credit |
| 6 | Many other designs available and special design available |
Our Service
First,we can produce the special machine,send your drawing to us,we can design for you.
Second,if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
Third, we provide a one year warranty and lifelong technical support,we can send our technicians to you to give you on-site training.
Four,engineers available to service machinery overseas.
Five, if you come to visit our factory,we can book the room for you,car pick up to send.
