XT-2008 Aluminium Powder Coating Machine for Powder Coating System

Electrostatic powder coating machine,wx-2008

Manual Powder Coating Equipment is the MOST STABLE  model, fine coating effects and very stable quality.which is

especially suitable

Configurations :

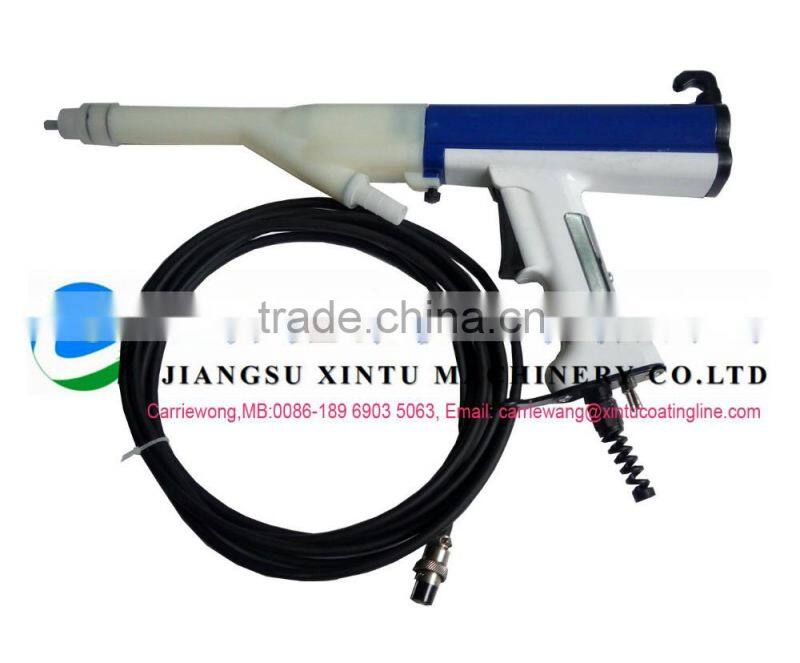

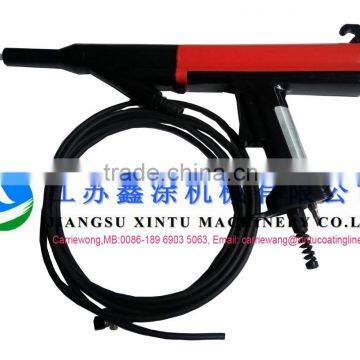

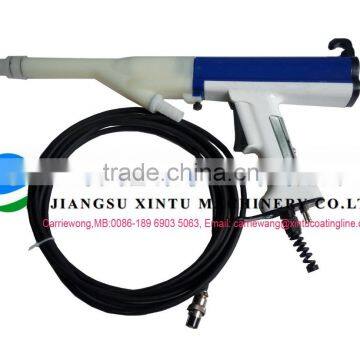

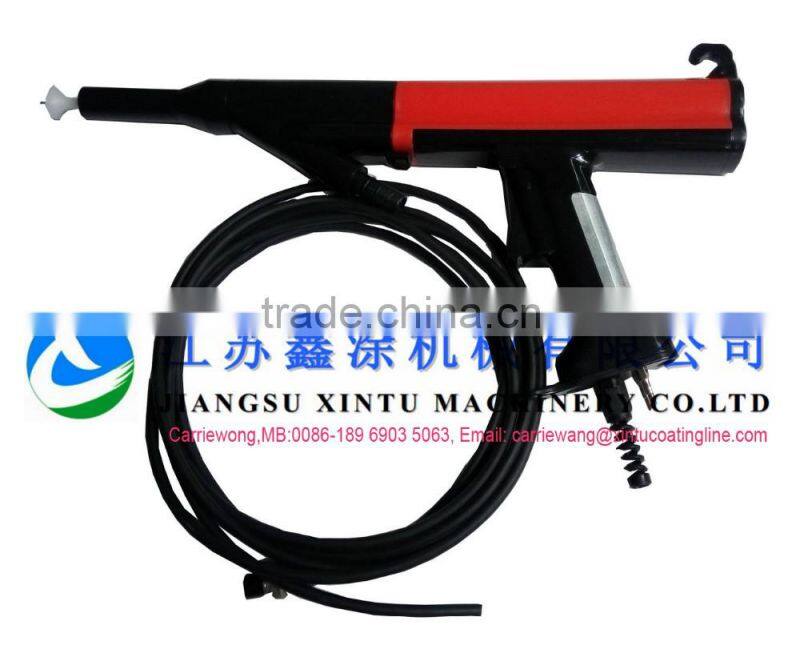

An manual powder gun with gun cable, powder hose, rinsing air tube and standard nozzles

A kit of Powder Gun Spare Parts

A Powder Coating Control Unit

A Powder Injector with venturi insert core

A Fluidized Powder Hopper

A set of Trolley frame

Oil-water separator, Air pressure regulating valve, and Grounding wire

 Technical Data

Input Power Voltage: 110V-120V AC,220V-230V AC

Frequency : 50 ~ 60Hz

Input Power : 40W

Electromagnetic valve control power voltage : 24V DC

Input air pressure: 0-0.6Mpa

Output air pressure: 0-0.5Mpa

Max. Air consumption: 13.2m³/h

Output powder volume: Max. 500g/min

Output power voltage: 0 ~100KV

Polarity: Negative

Output Current: 0~150uA

Weight of Gun: 480g

Length of Gun Cable:4m

Stainless Steel Powder Hopper Capacity:45L

Work temperature range: -5°C to 40°C

Payment & Shipping terms

Delivery Time: usually3-5days (According to the order quantity)

Payment Terms : T/T ,L/C,Paypal,Western Union

Price Terms: FOB,CIF,CFR

Supply Ability:100 sets per week

Packing Details :0.18CMB, Weight :30kgs (Packing with Carton)

The powder coating process involves three basic steps:



1. Part preparation or the pre-treatment
2. The powder application
3. Curing
4. The process of the powder coating is like this: The powder is fluidized in the powder hopper. The injectors transport the powder through the hoses to the guns. The guns spray a powder/air mixture onto the workpieces

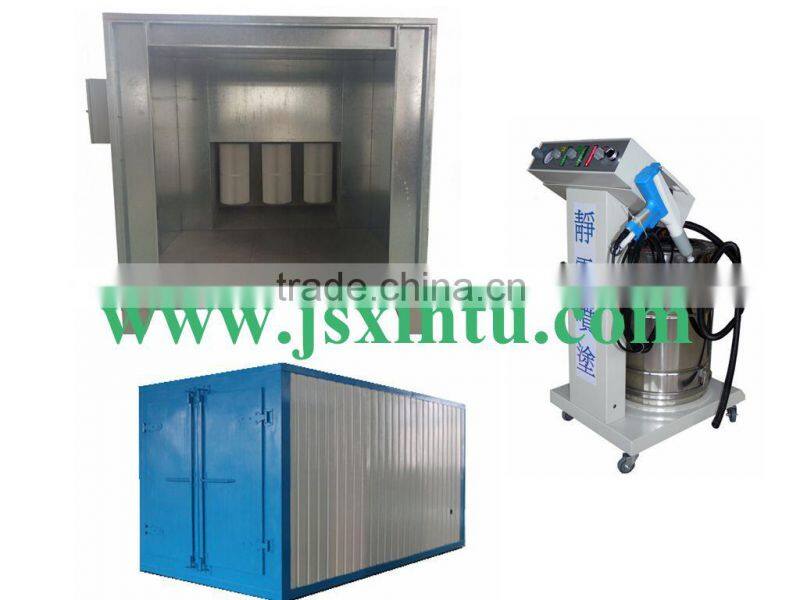

Besides,we also manufacture powder Spray booth,curing oven,powder recycling system.

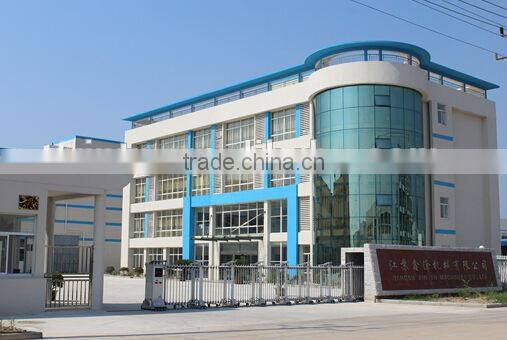

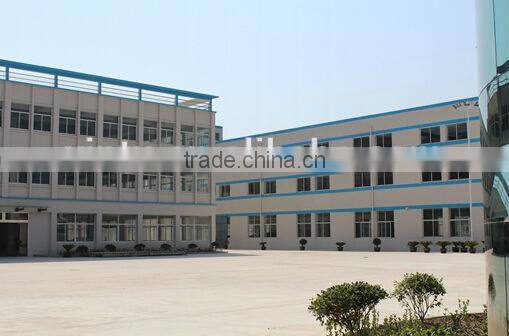

Factory:



Welcome customer all over the world perchase.
