Automatic Electrostatic Flocking Production Line

BRIEF INTRODUCTION

XINTU BRAND Complete flocking production line is one kind of  professional high quality  flocking production line to suit different customer's production requirement, technology requirement, environment protectional requirement, easy operation requirement, budget requirement etc.

PROCESSING

1. BRIEF INTRODUCTION OF PROCESSING  FOR COMPLETE LINE

2. MAIN SYSTEM & EQUIPMENT

The complete system consists of  Pretreatment system, Drying system, curing system, powder coating system ,powder recycling system, conveyor system ,electric control system etc.

2.1 PRE-TREAMENT SYSTEM

A.  Pre-treatment type:Full spray type pre-treatment system; Feature:Automatically;

B.  PT system processing: Make suggestion according to different substarte material or according to customer's requirment;

A.  Pre-treatment type:Full spray type pre-treatment system; Feature:Automatically;

B.  PT system processing: Make suggestion according to different substarte material or according to customer's requirment;

2.2 DRYING & CURING SYSTEM

A. Drying & Curing oven type: Go-through tunnel oven type;

B. Custom Drying temperature: 100~140℃;Custom Curing Temperature:180~200℃;

C. Optional type of the go-through tunnel oven: Bridge type & Go-strainght type are available;

A. Type:Batch container type oven                                          A. Type:Batch container type oven

B. Heating fuel: By Electricity                                                   B. Heating fuel: By GAS, Diesel, LPG etc;

2.3 POWDER COATING SYSTEM & POWDER RECYCLING SYSTEM

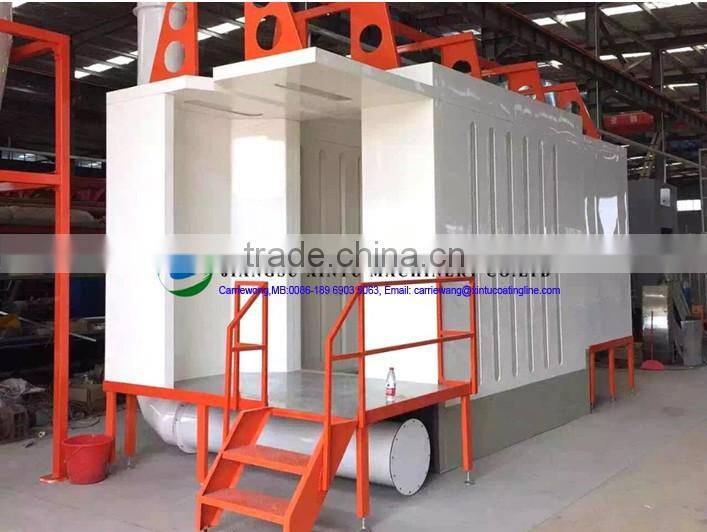

POWDER SPRAY BOOTH (CARBON STEEL)

A. Type: Go-through tunnel type;

B. Powder spraying: Manual or Automatic;

C. Raw Material: Coating carbon steel;

D. Advantages: Affordable price;

POWDER SPRAY BOOTH (STAINLESS STEEL)

A. Type: Go-through tunnel type;
B. Powder spraying: Manual or Automatic
C. Raw Material: Stainless steel
D. Advantages: Anti-corrosion & Good-look appearance;

POWDER SPRAY BOOTH (PP/PLASTIC)

A. Type: Go-through tunnel type;
B. Powder spraying: Manual or Automatic
C. Raw Material: PP plastic sheet
D. Advantages: Anti-Electrostatic charges &  Easy color-cleaning and color-changing;

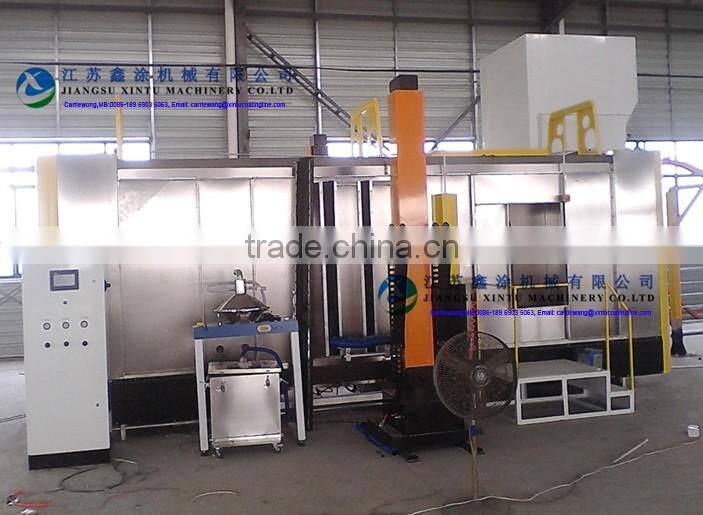

MOVABLE FILTERS POWDER RECYCLING

A. Type: Anti-blowing fliters recycling cabin;
B. Design advantage: Movable structure is convenient for fast color-changing and fast color-cleaning ;

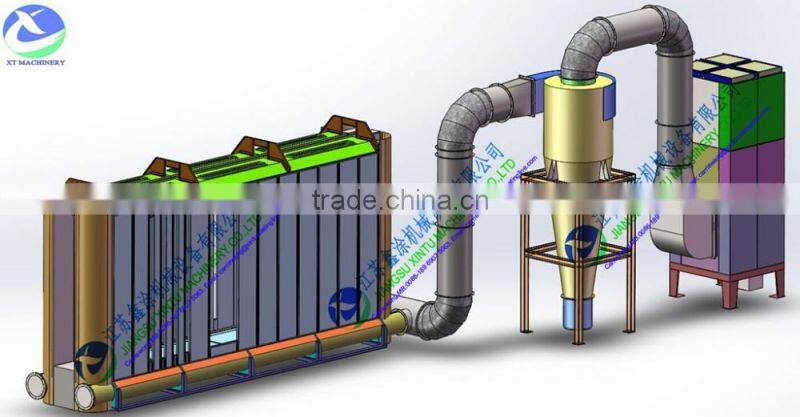

MONO-CYCLONE & AFTER FILTER SYSTEM

A. Type: Mono-cyclone & After filter powder

    recycling system;

B. Recycling effiency: ≥96%
C. Design advantage: High powder recycling effiency & Automatic powder backing and re-using system;

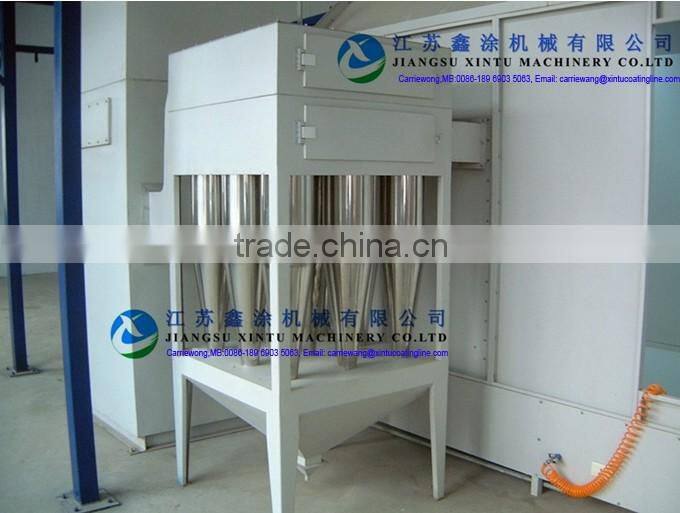

MULTI-TUBES CYCLONE & AFTER FILTER

A. Type: Mono-cyclone & After filter powder
    recycling system;
B. Recycling effiency: ≥96%
C. Design advantage:

* High powder recycling effiency ;

* Automatic powder backing and re-using

  system;

* Can reach inside workshop exhaustion ;

   Environmental protection;
