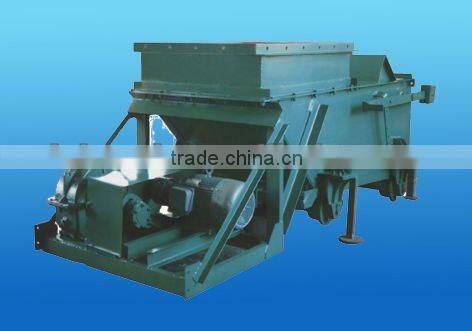

K type reciprocating coal feeder
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Capacity(t/h) | 90-148(t/h) | |
| Place of Origin | Shandong, China | Brand Name | HUAXIN | |
| Model Number | K type |
Product Description
Specifications
K-type reciprocating Coal feeder is used for coal or other loose granular materials of small mill cut and small viscous.K type reciprocating coal feeder
K-type feeder is composed of the rack, floor (to the trough), transmission platform, the number one drain, gate and roller. When the motor is activated by the flexible coupling, reducer and Crank, which will drag bottom floor tilted 5 degrees doing linear reciprocating motion and make materials unload other devices evently.The machine can be equipped with a funnel or without funnel forms according to the customer’s requirement .
Main Technical Parameter:
Model specifications | K-0 | K-1 | K-2 | K-3 | K-4 | ||
Feeding capacity (t/h) | Floor schedule | Crank position | Anthracite | ||||
200mm | 4 | 100 | 150 | 225 | 330 | 590 | |
150mm | 3 | 75 | 112 | 170 | 247 | 440 | |
100mm | 2 | 50 | 75 | 133 | 165 | 295 | |
50mm | 1 | 25 | 39 | 55 | 83 | 148 | |
Crank Speed(r/min) | 57 | 57 | 62 | 62 | 62 | ||
Motor | Model | YB160M1-8 | YB160M1-8 | YB160M1-8 | YB160M-8 | YB200L1-8 | |
Y160M1-8 | Y160M1-8 | Y160M1-8 | Y160M-6 | Y200L1-6 | |||
Power(kw) | 4 | 4 | 4 | 7.5 | 18.5 | ||
Speed(r/min) | 720 | 720 | 720 | 970 | 970 | ||
Reducer | Model | JZQ-350 | JZQ-350 | JZQ-350 | JZQ-400 | JZQ-500 | |
Speed ratio | 12.64 | 12.64 | 12.64 | 15.75 | 15.75 | ||
Max.feed size(mm) | Content below 10% | 250 | 350 | 400 | 500 | 700 | |
Content of more than 10% | 200 | 300 | 350 | 450 | 550 | ||
