Home > Products > Generator , engine and pump > Small Diesel Engine for Sale 8KW-350KW

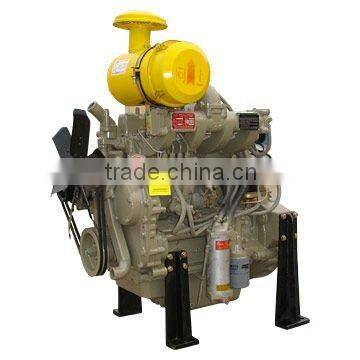

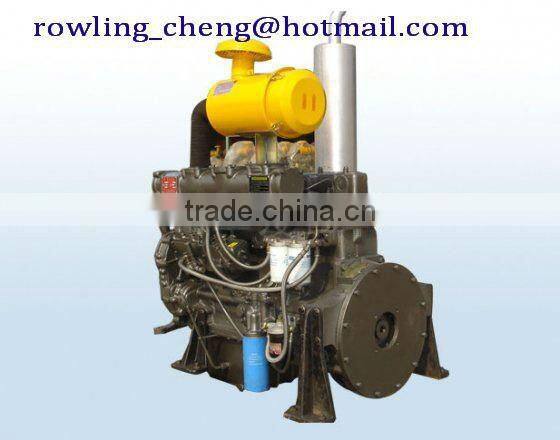

Small Diesel Engine for Sale 8KW-350KW
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Usage | Automobile | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Multi-cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Shandong, China | |
| Brand Name | Ricardo Style | Model Number | R4105,6105,6113 | |
| Weight | 500KGS | Certification | ISO |
Product Description
our main products include 295, 2100, 495, K4100, R4105 and R6105 series diesel engines which are designed according to the national standards. They are vortex flow type and direct-injection high-speed diesel engines with following parameters like two-cylinder, four-cylinder or six-cylinder, in-line, water-cooled, four-stroke,1,500-2,600rpm rotated speed, 12 to 210KW power range which is ideal for generator sets of engineering machinery, farm vehicles and watercrafts. In addition, our company can produce many reformed types of 295, 2100, 495-K4100, R4105, R6105 products according to customers' requirements.
| Diesel engine model | K4100ZD | |
| Type | water-cooled, inline, 4-storkes, swirl combusion chamber | |
| Constant Output (kW/kVA) | 42/52 | |
| Speed (r/min) | 1500 | |
| Cylinder No.-Bore*Stroke(mm) | 4-100-115 | |
| Total Displacement of Piston(L) | 3.61 | |
| Pressure Ratio | 19 | |
| Air Intake Type | Turborchanged | |
| Fuel Consumption(g/kw/.h) | 239.6 | |
| Oil Consumption(g/kw.h) | 2.04 | |
| Exhaust Temperature(°C) | 540 | |
| Crankshaft Ratating | Inverse Hour (Facing the power output end) | |
| Cooling Type | Forced Water Cooling | |
| Lubricating Type | Compound type with pressure and splash | |
| Starting Type | Electric Start | |
Diesel engine model | R4105ZD | |
| Type | water-cooled, inline, 4-storkes, swirl combusion chamber | |
| Constant Output (kW/kVA) | 56/70 | |
| Speed (r/min) | 1500 | |
| Cylinder No.-Bore*Stroke(mm) | 4-105-125 | |
| Total Displacement of Piston(L) | 4.33 | |
| Pressure Ratio | 17 | |
| Air Intake Type | Turborcharged | |
| Fuel Consumption(g/kw/.h) | 232 | |
| Oil Consumption(g/kw.h) | 1.63 | |
| Exhaust Temperature(°C) | 600 | |
| Crankshaft Ratating | Inverse Hour (Facing the power output end) | |
| Cooling Type | Forced Water Cooling | |
| Lubricating Type | Compound type with pressure and splash | |
| Starting Type | Electric Start | |
| Diesel engine model | R6105ZD | |
| Type | water-cooled, inline, 4-storkes, swirl combusion chamber | |
| Constant Output (kW/kVA) | 84/105 | |
| Speed (r/min) | 1500 | |
| Cylinder No.-Bore*Stroke(mm) | 6-105-125 | |
| Total Displacement of Piston(L) | 6.49 | |
| Pressure Ratio | 17 | |
| Air Intake Type | Turborchanged | |
| Fuel Consumption(g/kw/.h) | 224 | |
| Oil Consumption(g/kw.h) | 1.63 | |
| Exhaust Temperature(°C) | 600 | |
| Crankshaft Ratating | Inverse Hour (Facing the power output end) | |
| Cooling Type | Forced Water Cooling | |
| Lubricating Type | Compound type with pressure and splash | |
| Starting Type | Electric Start | |
Model |
| 6113ZLD |
Type |
| 6 cylinder, 4 stroke |
Output power | kw | 165 |
Fuel consumption | g/kw.h | 215 |
Cooling method |
| Water cooling |
Starting method |
| Electric starting |
Cylinders |
| 6 |
Bore | mm | 113 |
Stroke | mm | 135 |
Engine displacement | L | 7.522 |
Compression ratio |
| 17:1 |
Combustion system |
| Direct injection |
Lubricating manner |
| Combined pressure and splash |
Inspiration method |
| Turbo charging |
Overalldimention(L×W×H) | mm | 1700*609*1010 |
Net weight | kg | 700 |
