Product Details

Condition	New		Place of Origin	Shandong, China
Brand Name	HUAXIN		Model Number	LS

Product Description

Specifications

1.Large carrying capacity, safe and reliable operation.
2. Good adaptability and long service life.

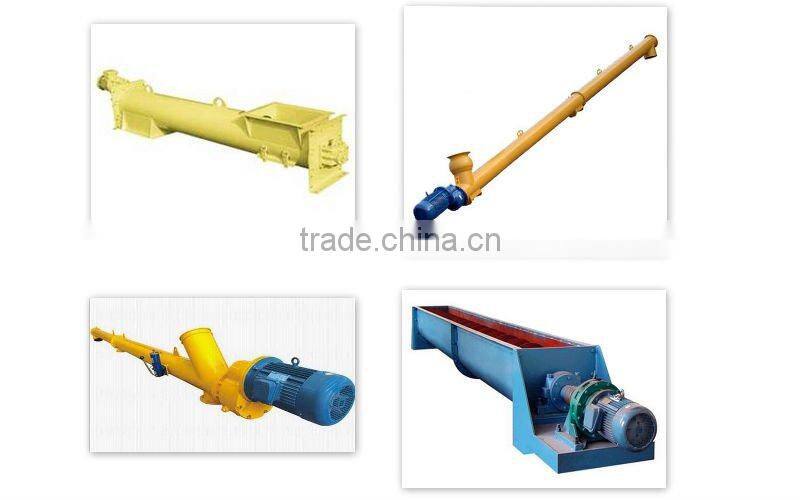

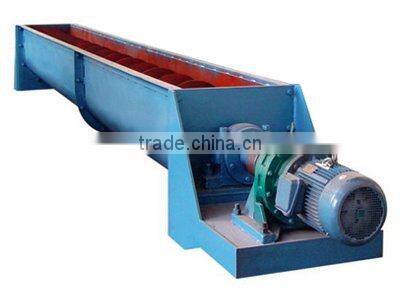

High efficiency LS series screw feeder

LS series flexible spiral screw feeder is widely used in building materials, metallurgy, chemical industry, electric power, coal, machinery, light industry, grain and food industries. Series LS screw conveyor is not suitable for conveying perishable, sticky or easy agglomerating materials. In general, the working environment temperature for LS series flexible spiral screw feeder is between -20~40°c, and the temperature of materials conveyed is between -20~80°c. LS series flexible spiral screw feeder is suitable to be installed horizontally or in small inclination angle. The inclination angle should not exceed 15°. If the inclination angle is big, please choose series GX screw conveyor, or you can contact us for special design.

Technical parameters:

Model No.	Diameter of screw (mm)	Distance between screws (mm)	Rotary speed (r/min)	Conveying capacity(m³/h)	Power(kw)
LS-100	100	100	140	2.2	1.6
LS-160	160	160	120	7.6	2.8
LS-200	200	200	90	11	3.2
LS-250	250	250	90	22	5.3
LS-315	315	315	75	36.4	8.4
LS-400	400	355	75	66.1	11
LS-500	500	400	60	93.1	15.3
LS-630	630	450	60	160	25.9
LS-800	800	500	45	223	36
LS-1000	1000	560	35	304	48
LS-1250	1250	630	30	458	73.3
