Computer Flat Knitting Machine Standard Parts Self-keep Solenoids
US$ 2.7 - 3
/ Piece
10 Pieces(Min. Order)
- Shanghai & Shenzhen& China Main Sea Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Needle | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Stainless Steel | Temperature of Media | Normal Temperature | |
| Media | Gas | Port Size | three lead wires 250mm | |
| Place of Origin | Hubei, China | Model Number | NQZ001B | |
| Brand Name | Transl |
Product Description
Solenoid Name:
keeping force solenoid DC24V

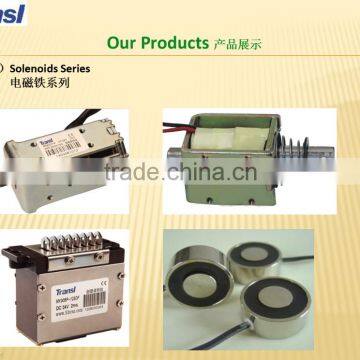

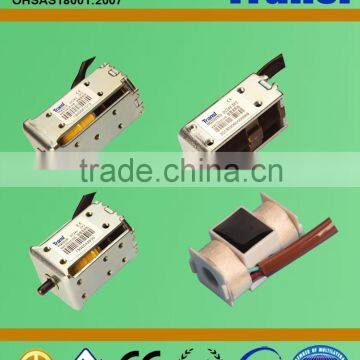

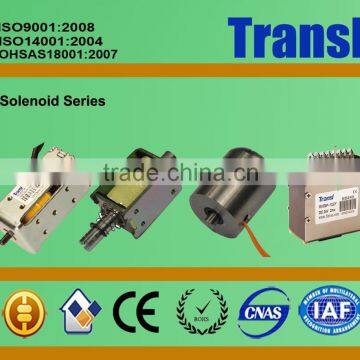

Solenoids Pictures

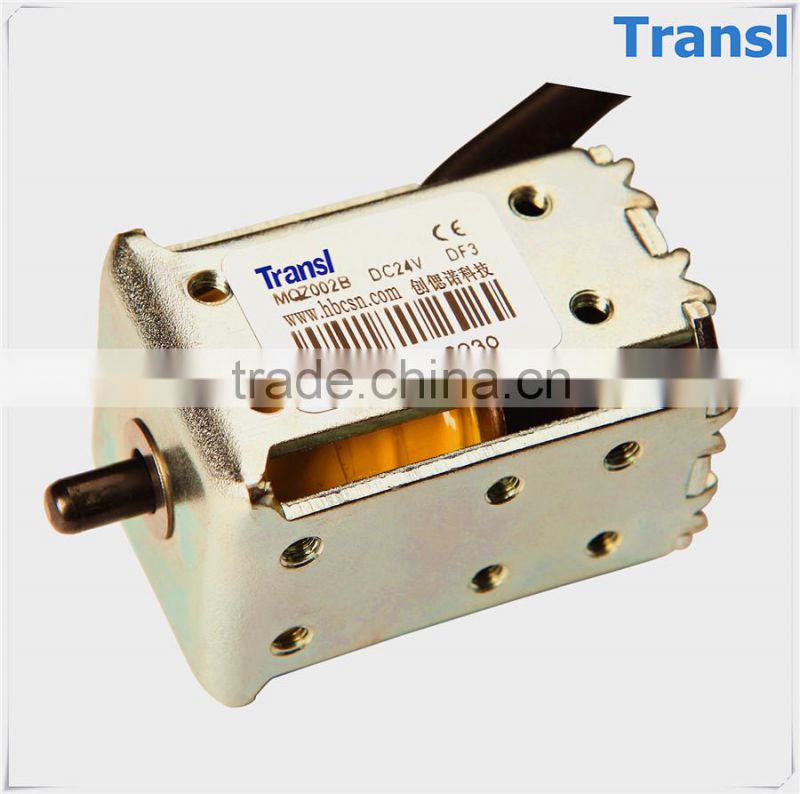

keeping force solenoid DC24V Actual Pictures

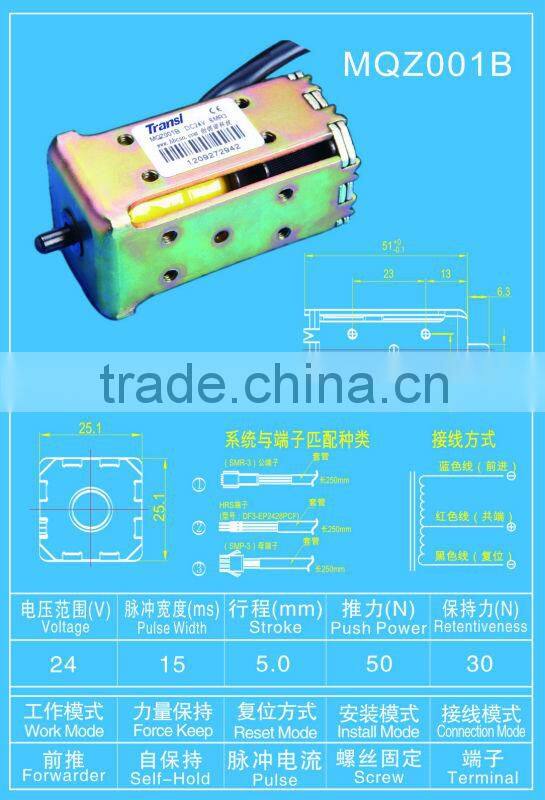

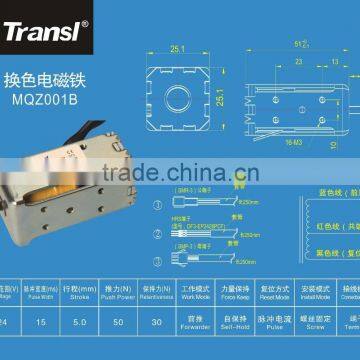

Solenoid Datasheet
| Products name: | keeping force solenoid DC24V MQZ001B |
| Brand: | Transl |
| Mode: | MQZ001B |
| Standard or Non Standard: | Standard |
| Structurer: | Needle |
| Voltage (V): | 24V DC |
| Pressure: | Medium Pressure |
| Media: | Gas |
| Temperature of Media: | Normal Temperature |
| Port Size: | three lead wires 250mm length |
| PulseWidth(ms): | 15 |
| Stroke(mm): | 50 |
| Push Power(N): | 50 |
| Retentiveness (N): | 30 |
| Work Mode: | Forward |
| Force Keep: | Self-Hold |
| Reset Mode: | Pulse |
| Install Mode: | Screw |
| Maximum Current (A): | 0.25 |
| Connection Mode: | Terminal |
| Dimension(mm): | 39.7*(25.1*25.1) |
| Application: | Knitting Machine; Textile Machine and etc. |
| Material: | Stainless Frame |
| Standard: | CE & Rohs |
