China Factory High Precison Guo Mao Planetary Gear Reduction Motor
- SHANGHAI
- Credit Card
You May Like
-
China Made Guo Mao Shaft Mounted Planetary Gear Reductor With Power Motor
-
China Made High Torque Guo Mao Planetary Used Marine Gearbox
-
China Made High Precison Guo Mao Planetary Gearbox Power Consumption Reduction Gearbox
-
China Made High Power Guo Mao Planetary Variable Speed Rpm Gearbox
-
GUOMAO High Ratio GX Series Modular Gear Speed Reducer
-
GUOMAO High Ratio GX Series Gear Speed Reducer
Product Details
| Gearing Arrangement | Planetary | Output Torque | 22 to 2600 | |
| Rated Power | 0.37-12000 | Input Speed | 1000 or 1500r/min | |
| Output Speed | 0.64-350rpm | Place of Origin | Jiangsu, China | |
| Model Number | GX | Brand Name | GUOMAO |
Product Description
Product description:

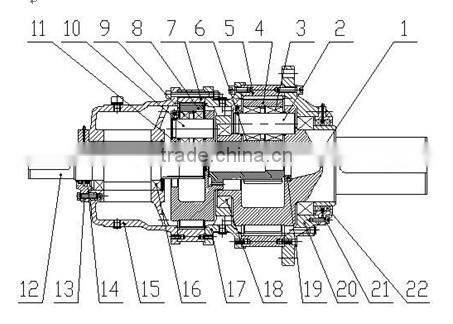

The structure schematic diagram of planetary gearbox
[1] The output planet carrier
[2] Planet wheel axle 1
[3] The planet wheel bearing 1
[4] Planetary gear 1
[6] Sun gear 1
[7] Internal gear 2
[8] Planetary gear 2
[9] Planet wheel bearing 2
[10] Planet wheel axle 2
[11]Planet carrier 2
[12] Input shaft
[13] Transparent cover
[14] Input shaft oil seal
[15] Enclosure
[16] Input shaft bearing
[17] Enclosure
[18] Bearing(left/right)on the output shaft
[19] Bearing
[20] Enclosure
[21] Back cover
[22] Oil seal of output planet carrier
Features of Products
1.Highly Standard Modular Designed:The products are easily connected with and driven by different types of motors or other kinds of input power.The same type geared motor can be adapted to optioned powers of motors.It is therefore easy to realize different solutions for varied requirements.
2.Ratio:Featured many closely divided ratios and wide range of them.Very big final rations can be obtained through combined unites to reach extremely low output speeds.
3.Mounting Arrangement:No strict limitation to the mounting arrangement.
4.High Strength,Compact Dimension:Housings are made of high strength cast iron.Gears and shaft gears are finished with gas carburising process and precise grouding to sequeritially get high loading capacity of percertain volume.
5. Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (expect those easily-disabled parts) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
6. Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
7. High Efficiency: The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.
8. Large radial loading ability.
Technical Equipments:
Guomao Group possesses a lot of domestic-made and imported advanced equipment and testing instruments, including Niles contour gear grinding machine imported from German. OKUMA horizontal machining center imported from Japan. Gear inspection and test center and three-coordinates measuring machine. Guomao Group, having state-of-the-art equipment, advanced management conception, perfect quality management system and high quality staff member team, can meet the needs of customers.
Certificates:
Package:
Application
Our Services
GUOMAO Group, having state-of-the-artequipment, advanced management conception, perfect quality management system and high qualitystaff member team as well as network service with over 90branches, can meet the needs of customers.
1. We could supply the samples if you have a good quantity.
2. We undertake the problems due to quality.
3. We supply detail answers about technical questions.
4. Different kinds of payment are available for you.
5. We are the manufacturer so we could supply the products as soon as possible.
6. At the instance of our dear customer, we can do some nonstandard design.
Company information:
About "GUOMAO" GROUP
Company name: Guomao Reducer Group Co.,Ltd
Address: No.111, Xihu Road, Wujin High Tech Zone, Changzhou city, Jiangsu Province, China
Established year: 1993
Quqantity of employees: more than 2000 employees
Factory square: 360000 square meters
Annual output: over 1.5 billion RMB
Annual production capability: 600,000 sets
Main products: B, X serial cycloidal reducer, ZDY, ZLY, ZSY, ZFY serial cylindrical gear reducer, ZLYJ serial gear reducer specially for plastic extruding machine, DCY serial bevel and cylindrical reducer, GR serial helical geared motor, GS serial helical worm geared motor, GK serial helical bevel geared motor, GF serial parallel helical geared motor, PV serial general gear box, MBY edge-driven geared reducer, GX series modular planetray gear units.
Qualifications of quality: CE, ISO9001:2008, CCC, ISO14001:2004, OHSAS18001:1999
Welcome to contact us for more detail information.
Please leave a message or inquiry.
We will reply you at any time.
Welcome standard-product or OEM inquiry.
Skype: gmreducer01
QQ: 2747944350
Mob: 0086 13775031966
