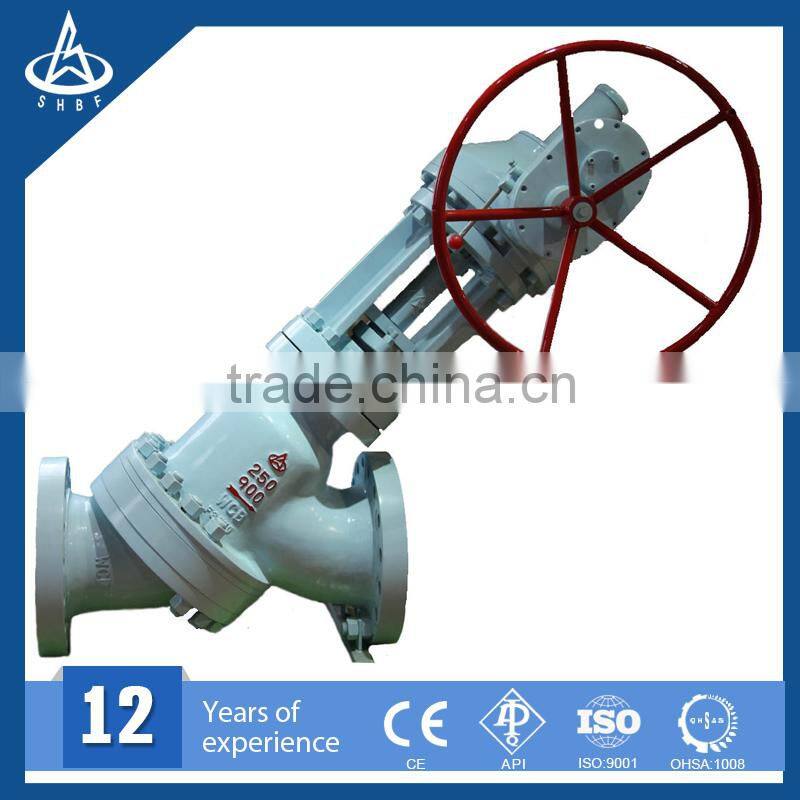

DN350 Motor Y-type Slurry Valve

Slurry valve (Class 150/300/400/600)

Products design features

The valve body of the slurry series is divided into left and right parts with a seat between them. The bolt connecting the two parts can be dissembled to replae the valve seaat.An anti-washing and anti-corrosion protection plae is set  in the cavity of the valve body. At the momnet of the valve opens, the plate can protect valve from washing out or erosion, and carry out chemical Ni.P plating threatmen on the whole valve which makes the surface hardness reach HRC60-62.The sealing adopts spherical seal, the surfaceof which is line connecting.It can ensure the sealing realiabiity and avoid scabs.Moreover, the valve belt has back sealing structer which can protect filling packing in full-open state.A rotation-resitant device is set up to ensure that the valve stem only has straight line motions.and no revolving motions,The driving manners of the valve include hand driving, electric driving air operated and geared transmission.

Technical specification

1. Design and production accroding to ASMEBI6.34.

2. The size of flange ends according to ASME B16.5.

3. Inspecting standard: API598.

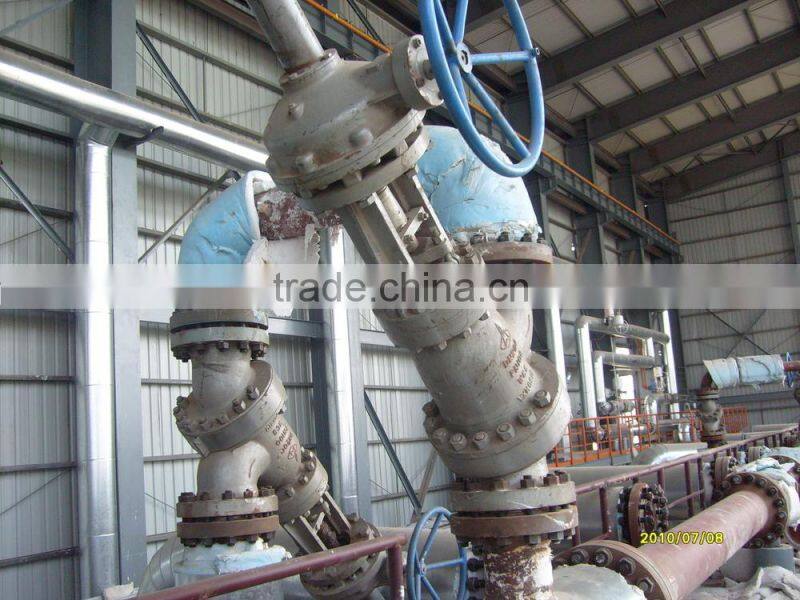

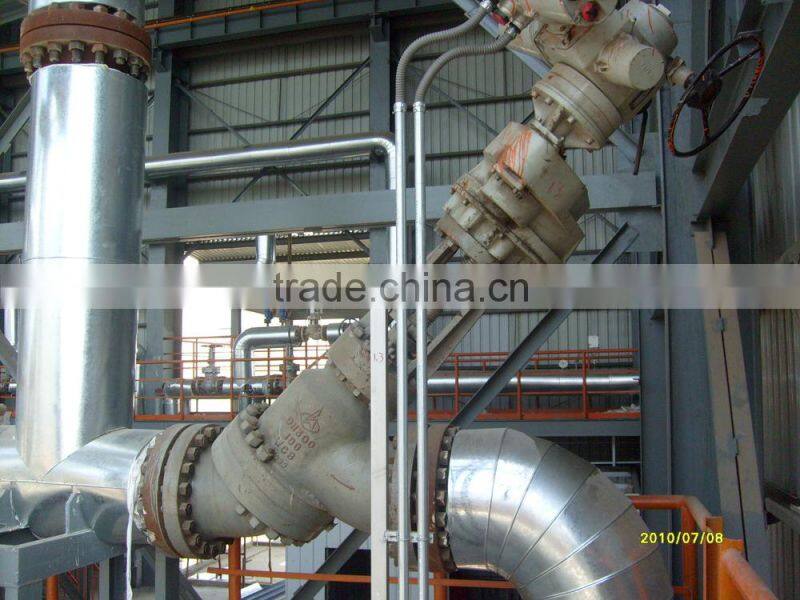

USE Range

Paper-making, pharmacy,coloring chemical and alkaline basic alumina slurr

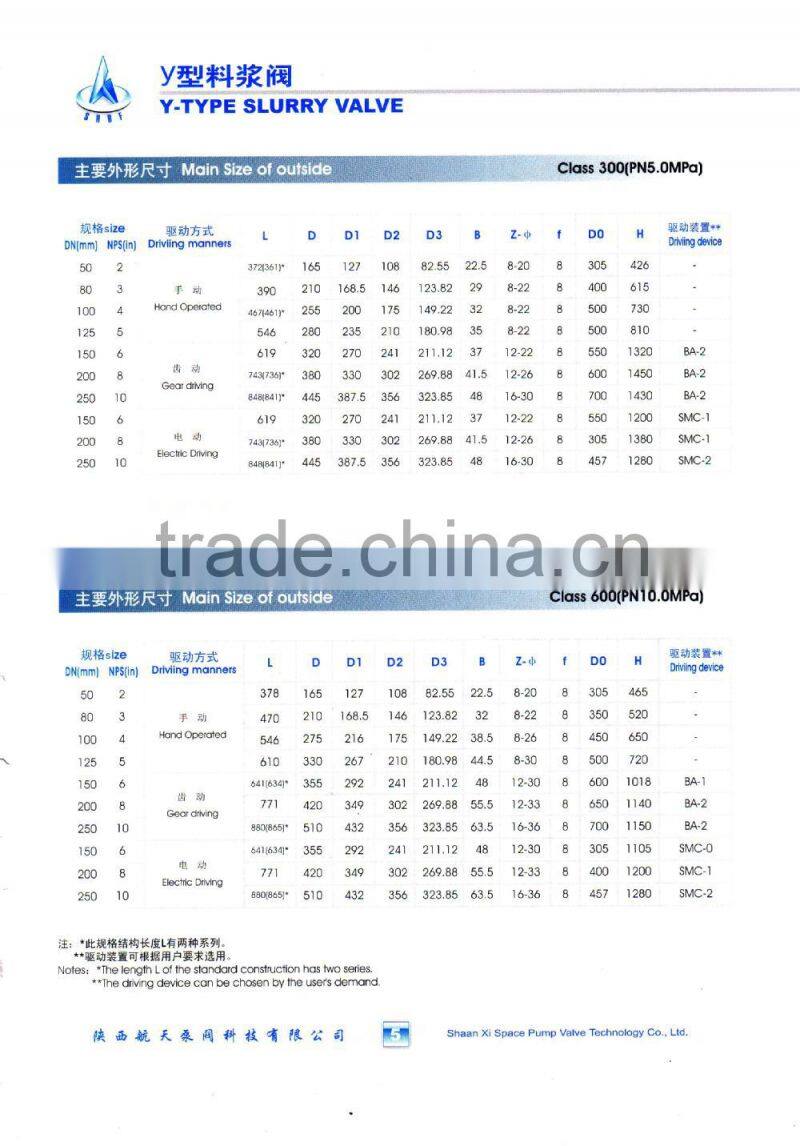

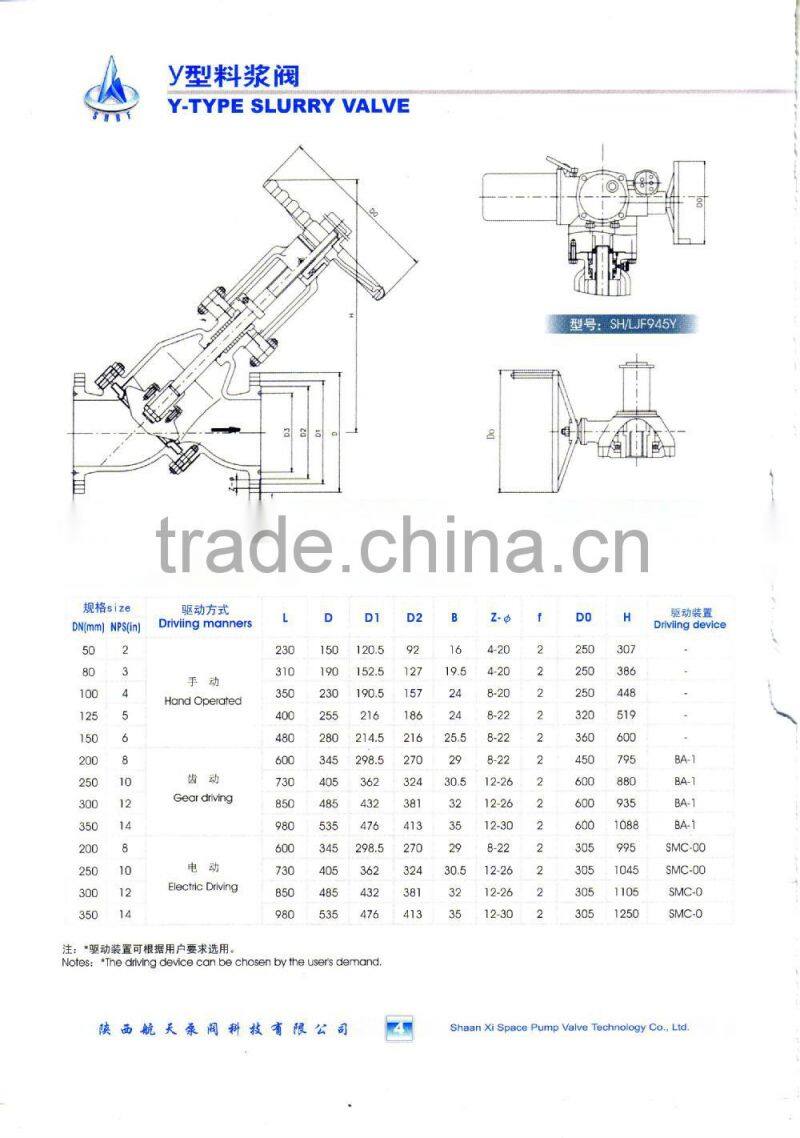

Porducts performace specification

Materials List

 Please send me your requirment,  then we could offer you the suitable style and competitive price.
