Oil and Gas Equipment-water Injection Skid in Oild Field

Intelligent water Injection skid mounted

Technical parameters

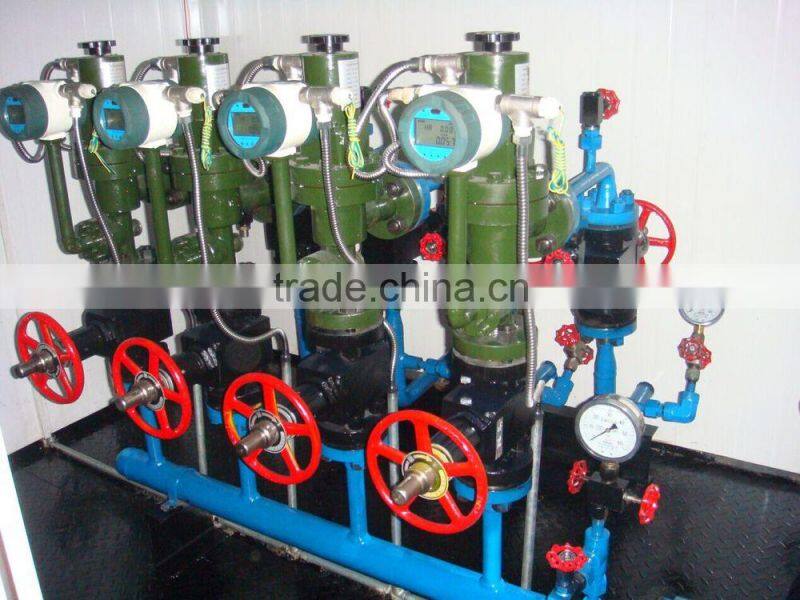

The HTPS-65/40/250 Intelligent water distributing skid mounted adopts automatic regulating device of the ground steady flow, high degree of intelligence, accurate and quantitative to each pipe to water distribution according the different pressure and flow requirement. In wildly pressure range, automatically adjust thepressure, accurate measurement of flow. On the basis of the pressure of system flow under the condition of frequent changes, achieve the steady water distributing and accurate measurement.

Due to the internal integration of water injection flow measurement and control device, it’s the multi-function products with filter,metering,constant current regulation, and have the date remote transmission function.

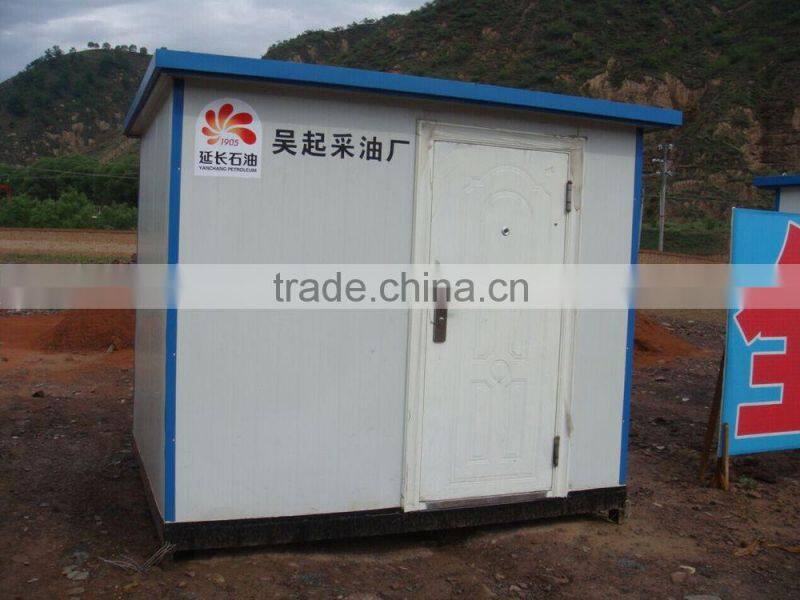

The device has the function of antifreeze, anti-theft, Products with high pressure filter,Water injection,Water diversion,Water distributing,Metering device and the steel structure Caigang insulated building, convenient to lifting,transportation and installation;

Technical parameters

1.Inlet pipe:φ76X10, Outlet pipe:φ48X6, Nominal pressure: 25Mpa;

2.Products with high pressure filter,Water injection,Water diversion,Water distributing,Metering device and the steel structure Caigang insulated building, convenient to lifting,transportation and installation;

3. Pressure grade: 25Mpa;

4.Water injection rate: 50~200 m³ /day;

5.Working medium: Water,Sewage

 Please send me your requirment,  then we could offer you the suitable style and competitive price.
