CTDG Series Magnetite Iron Ore Magnetic Separator Lump Ore With Belt
- China port
- T/T Money Gram
You May Like
-
Processing Iron Sand/Permanent Magnetic Separator/Magnetic Separator Magnet
-
Dry Magnetic Drum Separator Minerals Separator
-
Low Price Separation Machine Dry Magnetic Separator Permanent Motor
-
Self-owned Brand-MAS Baiyun Wet Processing /Permanent Magnetic Separator
-
Wet Magnetic Separator Mining Separator Malaysia
-
Permanent Magnetic Separator For Lump Iron Ore Manufacture Separator Before Crush
Product Details
| Condition | New | Type | Other, magnetic separator | |
| Production Capacity | 100 sets/month | Place of Origin | Anhui, China | |
| Brand Name | Baiyun | Model Number | CTDG0505N | |
| Voltage | 380 V | Dimension(L*W*H) | 1500*1800 | |
| Weight | 0.35 t | Certification | ISO9001:2000 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

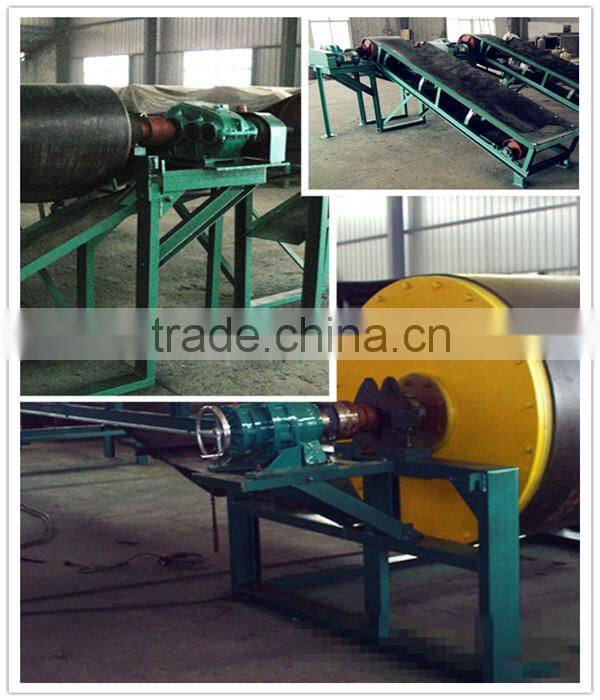

CTDG Dry Drum Magnetic Separator
Brief
CTDG Dry Drum Magnetic Separator is a new type high-efficiency magnetic preseparation equipment for materials with big size, such as lump iron ore,mill sales and other ferrous metals...
Feature
Strong Induction Intensity
The equipment has high magnetic induction intensity to attract the ore with size up to 350mm, and can be applied with various model belts according to the customers’ demands.It is mainly used at the preseparation stage to rejecting excess gangues.
Maximise Recovery of Ferrous Metals
High performance magnet design to suit your application (ferrite, rare earth) to provide the most effective and efficient method of metal recovery.
Minimise Maintenance
Wear resistant non-magnetic drum skin. Permanent magnet drums are built using high intensity non-deteriorating material, so not only is no power required to the magnet, but it will also provide maximum magnetic force for the lifetime of the machine. High permeability magnetic circuit to minimise stray magnetic fields, prolonging their life.
Optimise Throughput
Deep field magnet systems penetrate through the product burden and remove the maximum amount of ferrous metal. This allows for a higher throughput of material to be separated efficiently.
Main Dimension and Technical Data
Model | CTDG 1516N | CTDG 1214N | CTDG 1210N | CTDG 1010N | CTDG 0812N | CTDG 0810N | CTDG 0808N | CTDG 0606N | CTDG 0505N | CTDG 0405N |
Drum Diameter (mm) | 1500 | 1250 | 1250 | 1000 | 800 | 800 | 800 | 630 | 500 | 460 |
Drum Length (mm) | 1800 | 1600 | 1150 | 1150 | 1400 | 1150 | 950 | 750 | 550 | 520 |
Applying belt width (mm) | 1600 | 1400 | 1000 | 1000 | 1200 | 1000 | 800 | 650 | 500 | 500 |
Belt Speed (m/s) | 1.6-2.5 | 1.6-2.5 | 1.6-2.5 | 1.6-2.5 | 1.6-2.5 | 1.6-2.5 | 1.0-2.5 | 1.0-2.0 | 1.0-2.0 | 1.0-2.0 |
Magnetic Intensity On Drum Surface (mT) |
1500-4000 GS | |||||||||
Ore Diameter Upper limit (mm) | 350 | 350 | 350 | 250 | 200 | 200 | 200 | 70 | 50 | 40 |
Capacity (t/h) | 600-800 | 500 | 300-350 | 300 | 400 | 250 | 200 | 80 | 50 | 40 |
Drum Weight (t) | 6 | 5.5 | 3.7 | 2.8 | 2 | 1.6 | 1.4 | 1 | 0.35 | 0.3 |
Remarks Note : |
| |||||||||

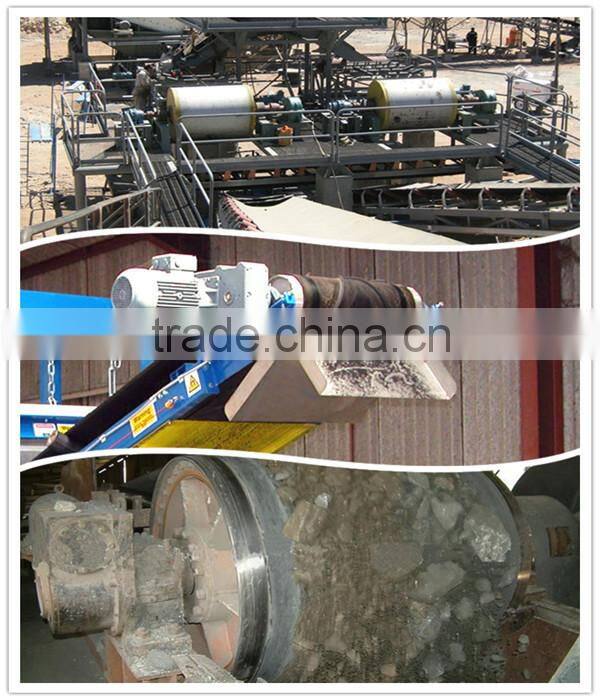

Applications
1.Used for preconcentration in the magnetic separation mill, remove the waste stones out of the ore and restore grade.
2.Used for stope to recover iron ore from the tailings and increase the uilization rate of ore resources.
3.Used for the iron and steel factories. Handle the discarded steel slag and mill scales to recover the iron.
4.Used for the garbage handling. Recover the useful metals and improve the quality of environment.



FAQ
1.How do you get the suitable models ?
A: Please send more details about your minerals , such as : the raw minerals , the raw grade ,finally grade you want , minerals size ,the handling capacity you want .
Or send some samples to our factory , we will do experiment for your minerals . Then we will recommend the suitable models for you .
2.How long is the product warranty period ?
A: We will guarantee the new equipment one year. Within guarantee period, we will supply relative damaged parts. While you need to maintain the equipment periodically according to our instruction, in that case, the equipment can work for a long time without malfunction. Over the guarantee period, we will supply the parts according to the market price.
Warmly welcome to visit our factory and company any time you like it!
