Low Price ! High Efficiency Separator Dry Drum Magnetic Separator Iron Ore processing

CTL Dry Drum Magneitc Separator For Iron Ore Fines

Brief

CTL dry drum magnetic separator is a developed new separating way for dry powder magnetic minerials, such as iron ore,iron sand and mill scales ect. It can be widely in metallurgical, steel works,mines and other industries.

Feature

With years of experience in magnetic concentration and separation,MAS Baiyun company provides a complete line of equipment to efficiently handle a wide variety of ore processing operations. These heavy duty dry drum separators are powered by permanent magnets either ceramic or rare earth magnets. The strength and depth of the magnetic field is controlled by the design of the poles and pole pieces, the size and number of the magnets, and the arc covered by the magnet assembly.

This kind of magnetic separator is characterized by a multiple magnetic field and high separation frequency. It is very suitable for the districts that are short of water and electricity,because it is dry magnetic separator and can be drived by diesel engine.

The material to be separated is fed at the top of the rotating drum surface, the non-magnetic fraction leaves the drum, while the magnetic fraction is retained by the magnetic force at the drum surface until carried outside the effective magnetic field. By selecting of the proper separator configuration and operating conditions, various products can be obtained which may be acceptable as final tailings, as final concentrate or as middlings requiring grinding and separation. Dry separators allow a better control over the grade of the products as compared with wet separators.

Main Dimension and Technical Data

Applications

1.Used for preconcentration of low-grade ores ,reject waste ore, and reduce ore dressing costs;

2.Used for purification operation for concentrates of magnetic separation plants, increase concentrate grade;

3.Use for separation for iron sand efficiently.

4.Used for recycling ferrous metals from steel works, such as steel slag, mill scales ect.;

5.Used for removing the ferrous contamination which has an obvious effect out of non-magnetic materials;

CTL Drum Magnetic Separator for Mill Scale

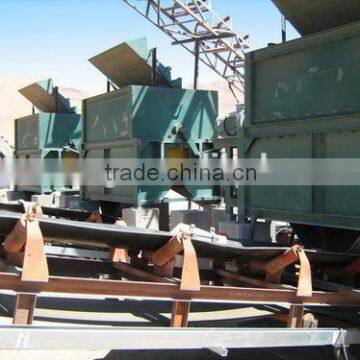

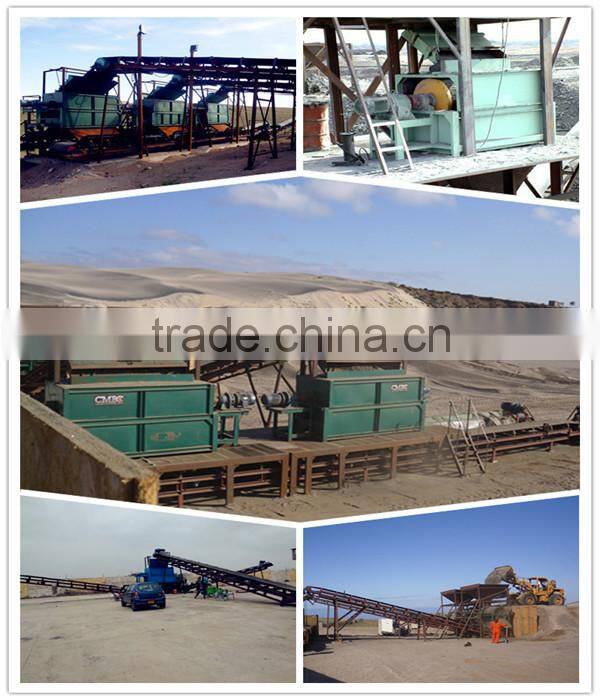

Mining Site

Client Visiting

FAQ

1.How do you get the suitable models ?

Please send more details about your minerals , such as : the raw minerals , the raw grade ,finally grade you want , minerals size ,the handling capacity you want .

Or send some samples to our factory , we will do experiment for your minerals . Then we will recommend the suitable models for you .

2.How long is the product warranty period ?

We will guarantee the new equipment one year. Within guarantee period, we will supply relative damaged parts. While you need to maintain the equipment periodically according to our instruction, in that case, the equipment can work for a long time without malfunction. Over the guarantee period, we will supply the parts according to the market price.

Warmly welcome to visit our factory and company any time you like it!
