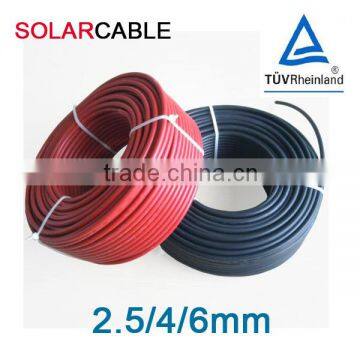

2.5/4/6mm Roll x MC4 Solar Connector Cable Black or Red TUV&UL Approval Power Cable for MC4/MC3 solar cable

[product description]
Product Name: 4 square single core photovoltaic cable
- type: PV1-F
The nominal section: 4mm2
- rated current: 55A
The core number: NO. 1
The structure of NO./mm 56/0.30: copper conductor
- conductor stranded diameter: 2.60mm
Insulation - minimum wall thickness: 0.5mm
The sheath minimum wall thickness: 0.5mm
The finished wire diameter: 6.1 + 0.1mm
The conductor (20 DEG C): less than 5.09 /km.
KV/min:6.5/5 No breakdown - test voltage
- rated temperature: -40~90 C
The maximum temperature of Conductor: 120 C
The reference circuit allows the temperature of 200 DEG C: 5S
- Life: > 25 years (-40~90 C)
Rated voltage: DC:1.8kv AC - U. 0.6/1kv /U:
The working environment temperature: -40~90
The working voltage of AC/DC (KV): 0.6~1.0/1.8
The weather resistance: UV
A single vertical burning flame retardant (IEC60332-1)
The sunlight resistance test: HD605/A1
Ozone resistance test - finished cable: EN50396
The smoke density: IEC61034, EN50268-2

 Packaging & Shipping

Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
