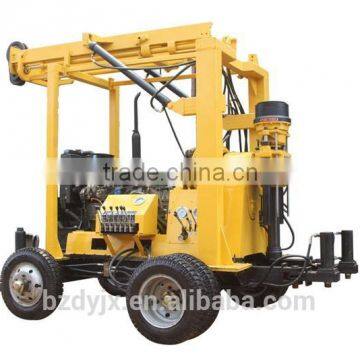

diesel engine type hydraulic drilling machine
US$ 9,500 - 15,000
/ Set
1 Set(Min. Order)
- Xin gang/Qingdao or other ports
- T/T
You May Like
-
CGSL-300A engineering and water-well drilling rig export of Burma
-
BZLD300 Crawler rock drilling rig export of Brazil Chile, Argentina
-
top head water well drilling machine
-
SINOTRUK chassis water well drilling rig
-
Africa hot sales! truck mounted water well drilling rig BZC350DF
-
hot sales! truck mounted water well drilling rig BZC350DF
Product Details
| Place of Origin | Shandong, China | Brand Name | BINZUAN | |
| Model Number | BZYX300 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Unity machine parameter | |
| Max open hole caliber | 300mm |
| Drilling depth | 100- 250 -300 -600m |
| End hole caliber | 300- 200 -150 -75mm |
| Drilling Rod diameter | 60mm |
| Drilling angle | 90°~65° |
| Spindle | |
| spindle speed | Forward 30-1050r/min |
| Reverse 29-137r/min | |
| Spindle stroke | 560mm |
| Spindle inner diameter | 96mm |
| Lifting capacity | 60KN |
| Main winch | |
| Max.Single line lifting capacity | 40KN |
| Max.Single line lifting speed | 0-45m/min |
| Wirerope caliber | 14mm |
| Wirerope length | 30m |
| Reel diameter | 300mm |
| Hug folldgate belt width | 90mm |
| Minor winch | |
| Reel diameter | 140mm |
| Wirerope caliber | 6mm |
| Wirerope length | 450m |
| Mud pump | |
| Type | Horizontal Triplex BW-250 mud pump |
| Displacement | 250 L/min |
| Work pressure | 7 Mpa |
| Water inlet pipe diameter | 75 mm |
| Water outlet pipe diameter | 50 mm |
| Gear Oil pump | |
| Duplex gear oil pump | CBF-F63/25 |
| Front Displacement, pressure | 63 L/min 20Mpa |
| Behind Displacement, pressure | 25 L/min 20Mpa |
| Power | |
| Diesel engine | 37KW |
| Rated RPM | 2700r/min |
| Wheel undercarriage | |
| Chassis loading | 3T |
| Chassis length | 2.6m |
| Chassis with | 2m |
| Max high of wheel | 0.6m |
