Self Amalgamating S-cotch23 EPR High Voltage Insulation Tape
- Shenzhen Guangzhou Xia'men etc.
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CORETRAN | |
| Model Number | KC71 | Type | Insulation Tape | |
| Material | Other, ethylene propylene rubber(EPR) | Application | High Voltage | |
| Rated Voltage | 69kv | Tensile Strength | 2.8Mpaf |
Product Description

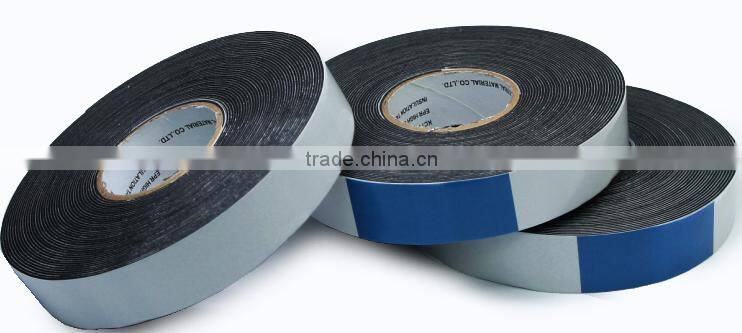

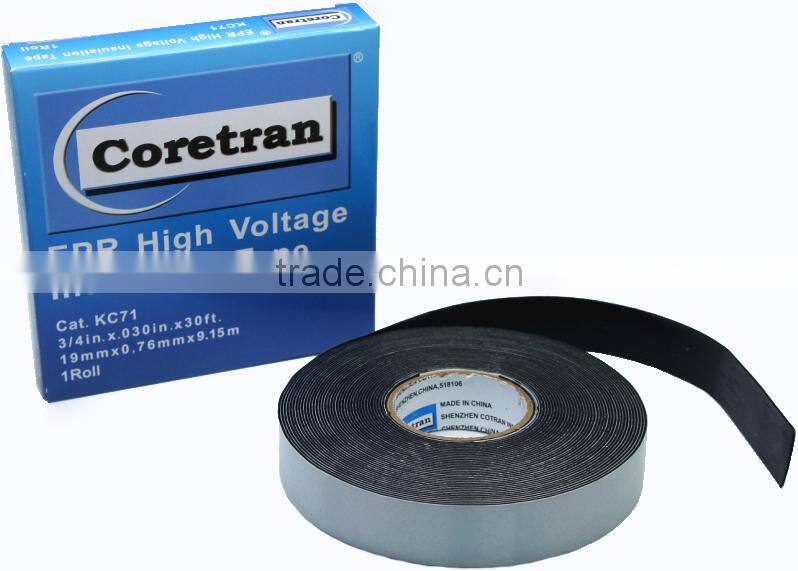

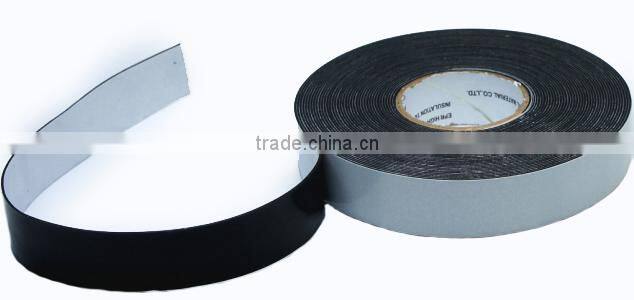

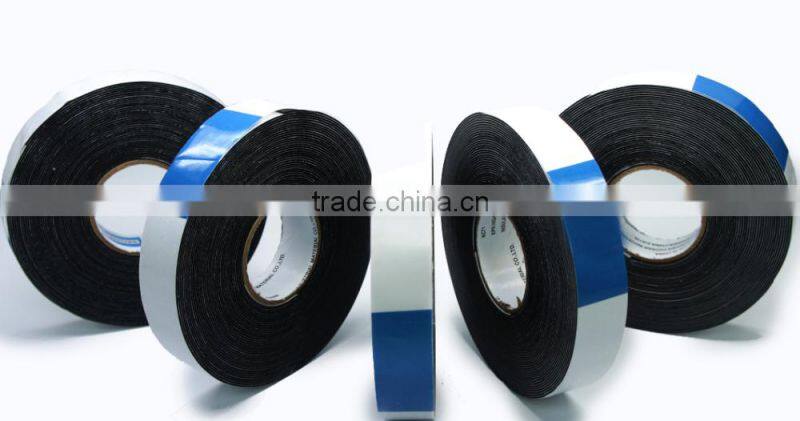

Self Amalgamating S-cotch23 EPR high voltage insulation tape
Description :
- Wholesale all kinds of high voltage insulation tape is a self-amalgamating ethylene propylene rubber tape used on solid dielectric cable for electrical insulation and jacketing in splices up to 69kV and for building stress cones in terminations up to 35kV.
- The tape comes with a separator that is removed during the taping process.
- Its 0,76mm thickness and quick amalgamation facilitates a rapid, void fr ee insulation build-up that is electrically stable and moisture proof.
- Wholesale all kinds of high voltage insulation tape is suitable for use with conductors rated at 90°C with an emergency overload rating of 130°C.
- The tape is also resistant to corrosion, chemicals and ultra violet light.
- Wholesale all kinds of high voltage insulation tape fully meets the Table 1 requirements for Type III tape in ASTM D 4388.
Application:
- Electrical insulation and jacketing in splices of solid dielectric cable up to 69kV
- Building stress cones in terminations of solid dielectric cable up to 35kV
- Jacketing of indoor terminations
- Bus bar insulation and corrosion protection
- Jacket repair and restoration in all types of cable
- Moisture sealing applications
Specifications:
| Property | Value |
| Elongation at Break | 880% |
| Fusion | Pass |
| Operating Temperature Continuous | 90℃ |
| Emergency Overload | 130℃ |
| Dielectric Strength | 38.3kv/mm |
| Water Absorption | 0.13% |
| Copper Corrosion | Pass |
| Ozone Resistance | Pass |
| UV Resistance | Pass |
- Your inquiry related to our product&price will be replied within 24 hours.
- OEM&ODM projects are highly welcomed. We have strong R&D team here to help.
- Your business relationship with us will be confidential to any third.
- Good after-sale service offered, please get back if you got question.
Suggestion for inquiry:
- If you have a sample in hand, and want to buy the same goods for it, please send your inquiry with the real picture, sizes, packing requirement, qty, etc.
- If you are purchasing this item, please send us full details including the thickness, length, width, application of the tape, and the quantity you need.
Shenzhen Cotran Industrial Material Co., Ltd. is a leading supplier of electrical insulation and moisture sealing products that are sold to a broad range of customers including distributors of electrical materials, power utilities, telecommunication companies, mines, original equipment manufacturers, governments and retailers. Cotran’s product range consists of vinyl electrical tapes, mastic and rubber backed mastic water sealing tapes, ethylene propylene rubber based self-amalgamating high voltage insulating and semi-conducting tapes and other special purpose tapes and related products.
Why choose us?
1.We have our own factory to manufacture various kinds of tapes and tubes by ourselves,which makes them more competitive price and the lead time will be as short as it can be.
2.OEM and some of your special requirement will be accepted.
3.We have professional QC systems and professional workers.We can guarantee all the product quality is excellent that is selling to you.
4.We have great experience on tape and tubes, provide high quality service to distributors and retailers.
5.You can be sure to find the right product for your application within our range.
