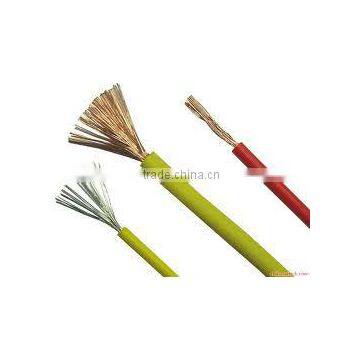

20AWG Silicone Rubber Insulation Wire UL3536
US$ 0.02 - 0.6
/ Meter
6100 Meters(Min. Order)
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haerkn | |
| Model Number | UL 3536 | Type | Insulated | |
| Application | Other, Internal Wiring | Conductor Material | Other, Tinned or Bare Copper | |
| Conductor Type | Other, Solid or Stranded | Insulation Material | Other, Silicone Rubber |
Product Description
Specifications
20AWG Silicone Rubber Insulation Wire UL3536]1.Rated Voltage:600V
2.UL&RoHS
3.Standard Appliance Wiring Material UL 758
20AWG Silicone Rubber Insulation Wire UL3536
| Style 3536 | Insulated Wire | |
| Rating | 150 deg C, 600 Vac, Horizontal flame. |
| Conductor | 20 AWG - 500 kcmil, solid or stranded copper. |
| Insulation | Silicone rubber. |
| Conductor size | Minimum average | Minimum at any point |
| 0.5-4.0 sq mm | 30 mils | 27 mils |
| 4.1-9.0 sq mm | 45 mils | 40 mils |
| 9.1-35.0 sq mm | 60 mils | 54 mils |
| 35.1-100.0 sq mm | 80 mils | 76 mils |
| 100.1-250.0 sq mm | 95 mils | 85 mils |
May be applied in two layers with an intermediate glass braid (optional)
| Standard | Appliance Wiring Material UL 758. |
| Marking | General. |
| Use | Internal Wiring of Appliances where totally enclosed. |
