Home > Products > Solar PV cabel > 2 Pfg 1169 TUV Approved PV Cable

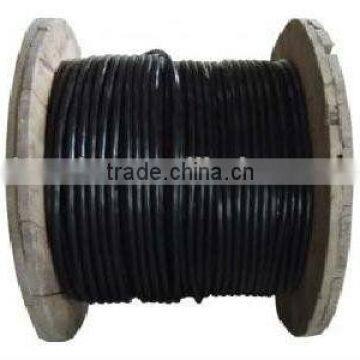

2 Pfg 1169 TUV Approved PV Cable
- Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Haerkn | |
| Model Number | TUV | Type | Insulated | |
| Application | Other, Power Station,up to 120C | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | Other, XLPE |
Product Description
2 Pfg 1169 TUV Approved PV Cable
Technical Date
Conductor: tinned copper
OD: 2.62mm
Insulator: XLPE
Color: white
OD: 4.05±0.1mm
Jacket: XLPE
Color: Black
OD: 6.1±0.2mm
Cross section of wires: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2
Application: Widly used in PV power plants, solar energy system, PV inverters, etc...
Characteristics:
A: Dual wall insulation,electron beam cross linked.
B: Excellent resistance to U.V. oil greases, oxyen and ozone.
C: Halogen free, flame retardant, low toxicity.
D: Excellent fiexibility and stripping performance,and excellent resistance to abrasion.
Conductor |
Insulator |
Jacket |
Electrical Characteristic |
Packing | ||||
mm2 |
Comps.n.x φmm |
Diameter φmm |
Insulation Thick mm |
Insulator diameter φmm |
Jacket Thick /mm |
Over Diameter φmm |
Realest, max Cu, c 20°C Ohm/km |
Mt/coils |
1.5 | 30/0.254 | 1.61 | 0.60 | 2.81 | 0.92 | 4.65 | 13.7 | 300 |
2.5 | 50/0.254 | 2.07 | 0.60 | 3.27 | 0.92 | 5.11 | 8.21 | 300 |
4.0 | 57/0.30 | 2.62 | 0.71 | 4.04 | 1.02 | 6.08 | 5.09 | 200 |
6.0 | 84/0.30 | 3.50 | 0.75 | 5.00 | 1.05 | 7.10 | 3.39 | 200 |
10 | 84/0.39 | 4.60 | 0.82 | 6.24 | 1.07 | 8.38 | 1.95 | 100 |
16 | 133/0.39 | 5.80 | 0.90 | 7.60 | 1.08 | 9.76 | 1.24 | 100 |
25 | 210/0.39 | 7.30 | 1.12 | 9.54 | 1.08 | 11.7 | 0.795 | 100 |
35 | 294/0.39 | 8.70 | 1.15 | 11.0 | 1.25 | 13.5 | 0.565 | 100 |
